Schematic and Routing Diagrams: Compass/GDO: Notes

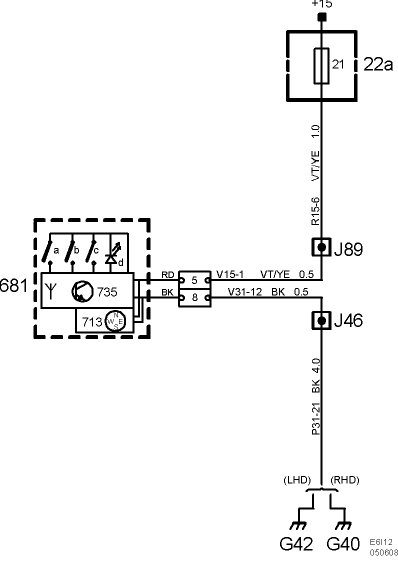

Fig 1: Compass/GDO - Circuit Diagram

G05125880

Courtesy of SAAB-SCANIA OF AMERICA, INC.
