Grounding Point G33: Notes

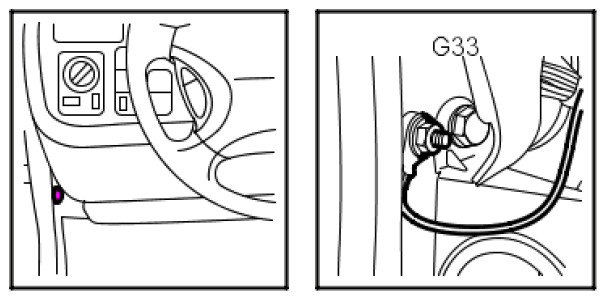

Fig 1: Identifying Grounding Point G33

Courtesy of SAAB-SCANIA OF AMERICA, INC.

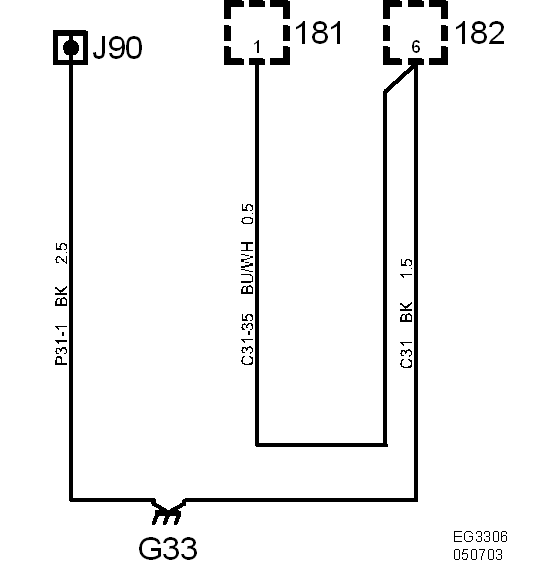

Fig 2: Grounding Point G33 - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

See POWER WINDOWS and POWER MIRRORS in System Wiring Diagrams for more information.
