Grounding point G3: Notes

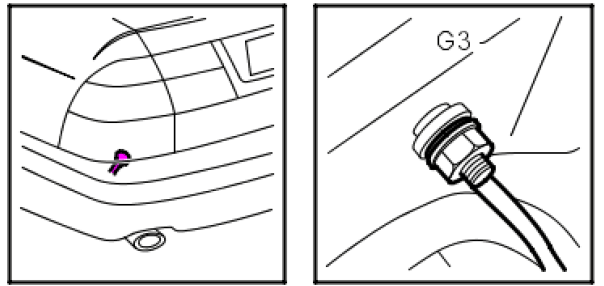

Fig 1: Identifying Grounding Point G3

G05121511

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location In luggage compartment under LH light cluster.
