Control module, PMM (611)

LHD

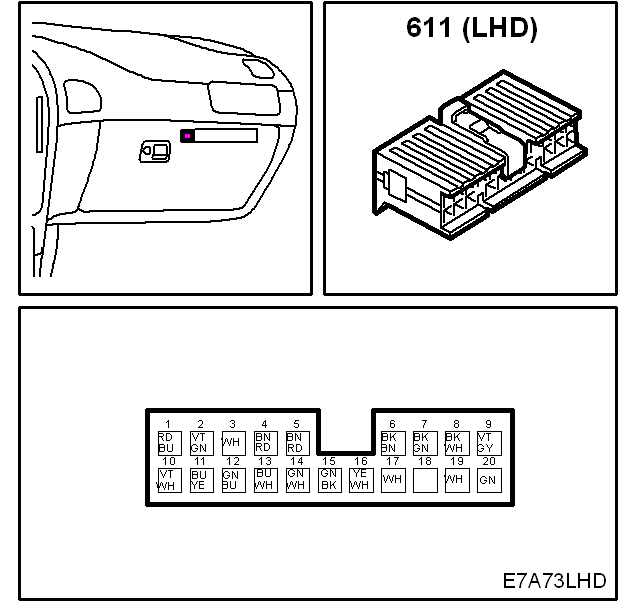

Fig 1: Identifying Control Module, PMM (611) - LHD
G05121411Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

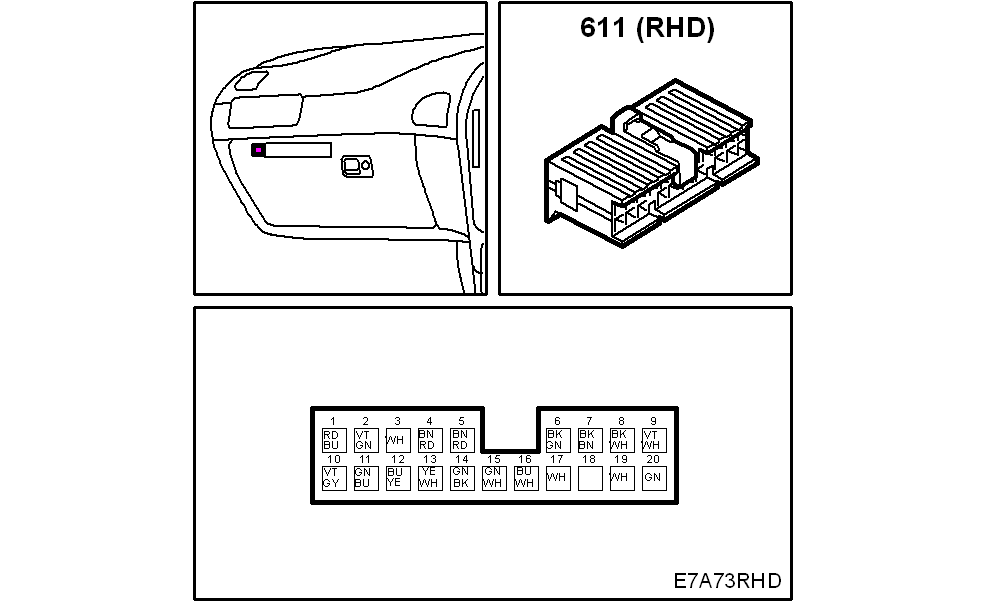

Fig 2: Identifying Control Module, PMM (611) - RHD
G05121412Courtesy of SAAB-SCANIA OF AMERICA, INC.
