Grounding Point G5: Notes

Fig 1: Identifying Grounding Point G5

Courtesy of SAAB-SCANIA OF AMERICA, INC.

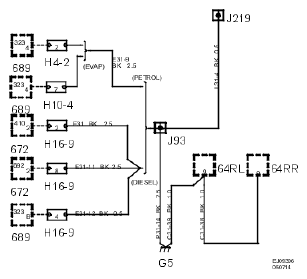

Fig 2: Grounding Point G5 - Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Under left-hand corner of rear seat.
