List of components

For additional information, see ELECTRICAL COMPONENT LOCATOR .

COMPONENTS LIST

No.	Name Location	Graphic
-	Components	-

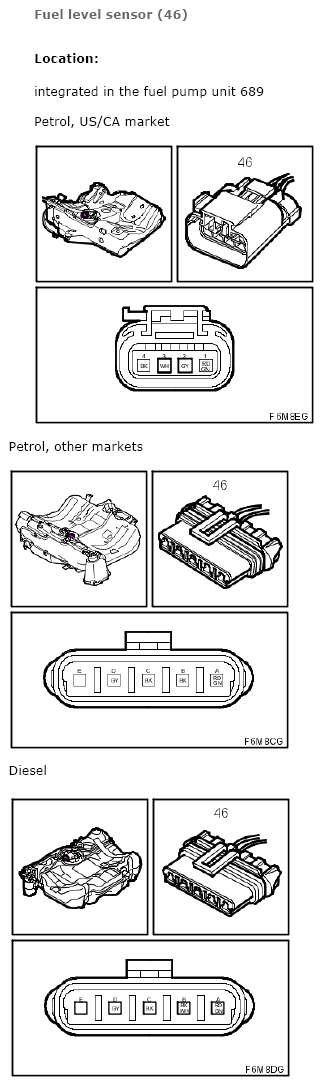

46	Fuel level sensor, integrated in the fuel pump unit 689	Courtesy of SAAB-SCANIA OF AMERICA, INC.

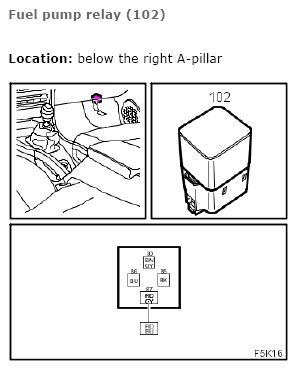

102	Fuel pump relay below the right A-pillar	Courtesy of SAAB-SCANIA OF AMERICA, INC.

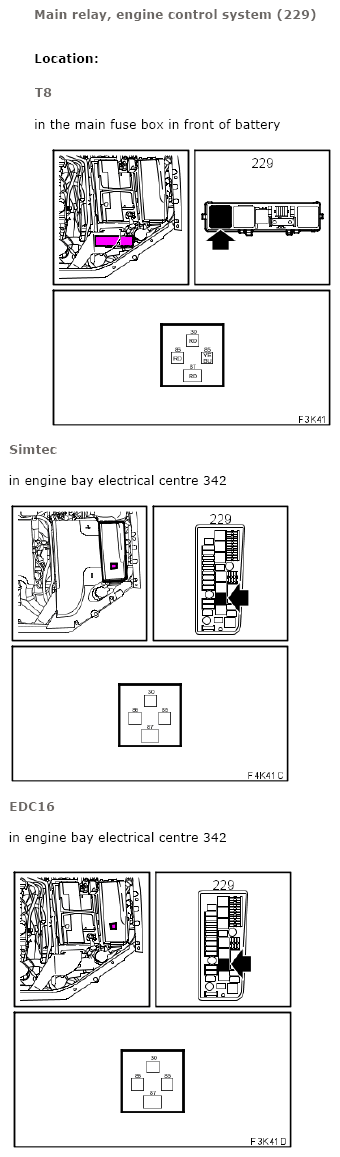

229	Main relay, engine control system in the main fuse box in front of battery	Courtesy of SAAB-SCANIA OF AMERICA, INC.

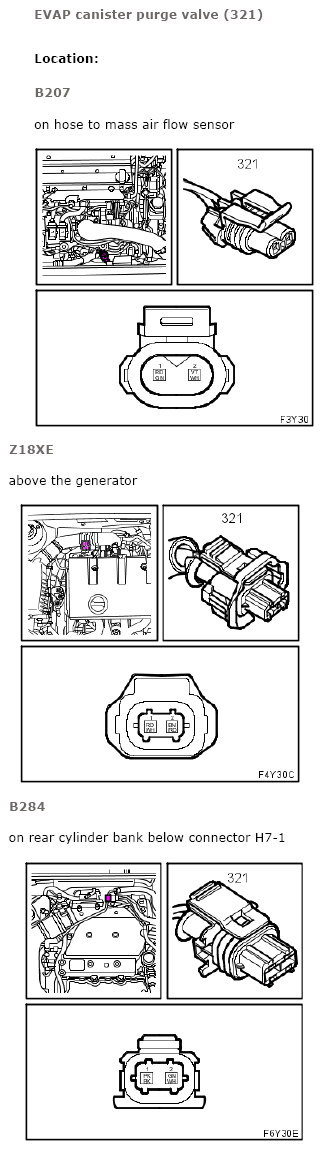

321	EVAP canister purge valve, on hose to mass air flow sensor	Courtesy of SAAB-SCANIA OF AMERICA, INC.

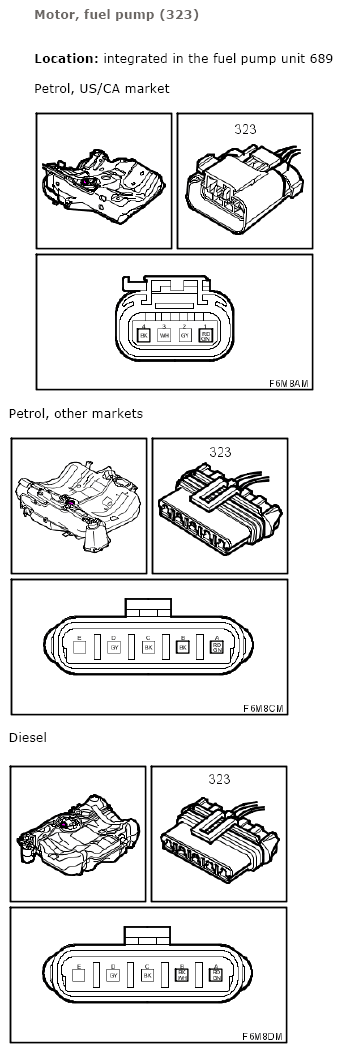

323	Fuel pump motor, integrated in the fuel pump unit 689	Courtesy of SAAB-SCANIA OF AMERICA, INC.

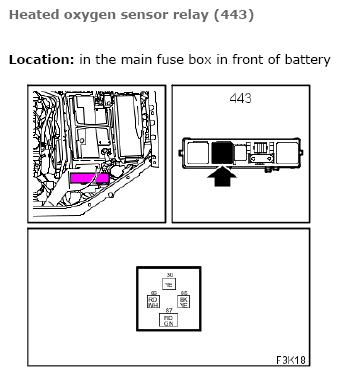

443	Heated oxygen sensor relay in the main fuse box in front of battery	Courtesy of SAAB-SCANIA OF AMERICA, INC.

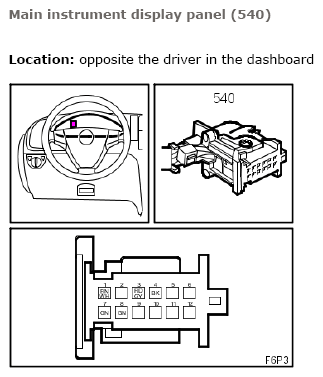

540	Main instrument unit, in front of driver in instrument panel	Courtesy of SAAB-SCANIA OF AMERICA, INC.

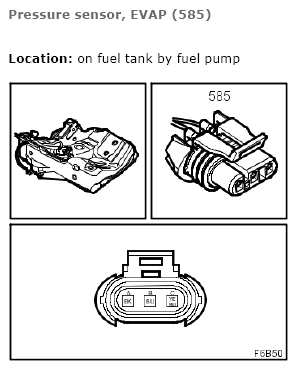

585	Pressure sensor, EVAP on fuel tank by fuel pump	Courtesy of SAAB-SCANIA OF AMERICA, INC.

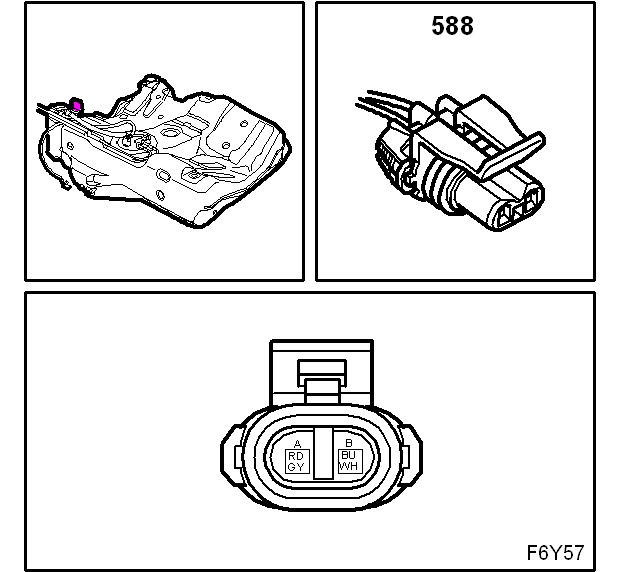

588	Solenoid valve, EVAP shut-off on the fuel tank	Courtesy of SAAB-SCANIA OF AMERICA, INC.
589	Trionic engine control module, 4-cyl petrol, on front of engine	CONTROL MODULE, TRIONIC, B207, SWITCH A (589A) CONTROL MODULE, TRIONIC, B207, SWITCH B (589B)

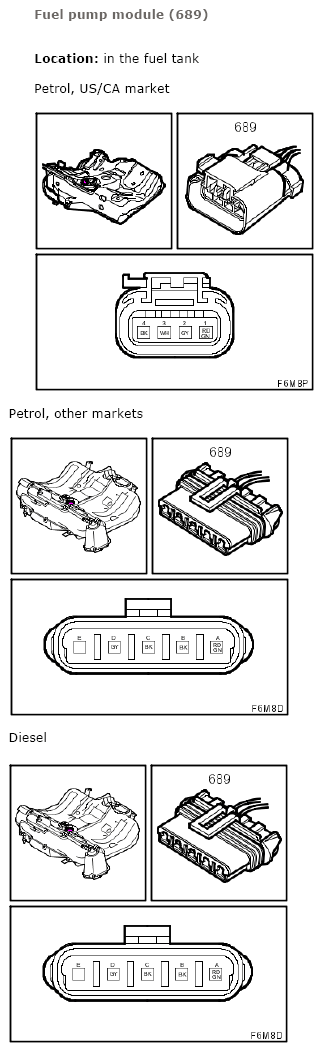

689	Fuel pump module in the fuel tank	Courtesy of SAAB-SCANIA OF AMERICA, INC.
727	Main fuse box, petrol engine, in front of battery	FUSE 2, MAIN FUSE BOX 727 FOR B207 FUSE 4, MAIN FUSE BOX 727 FOR B207
-	10-pin connector	-

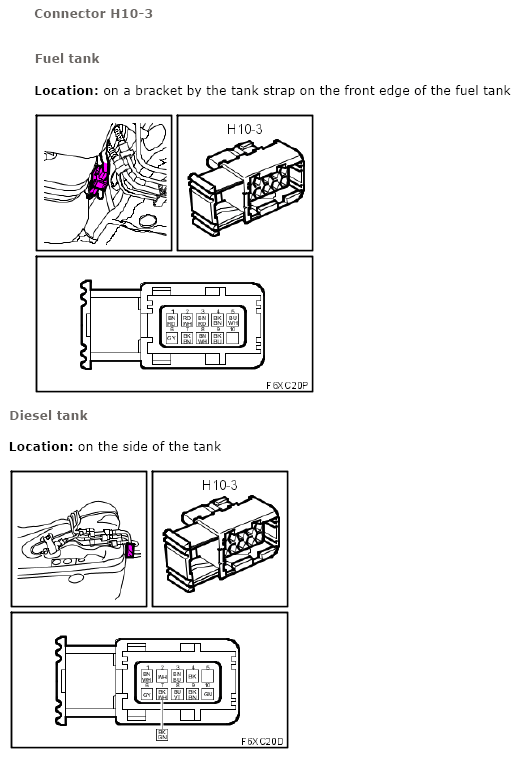

H10-3	On a bracket by the tank strap on the front edge of the fuel tank	Courtesy of SAAB-SCANIA OF AMERICA, INC.
-	24-pin connector	-

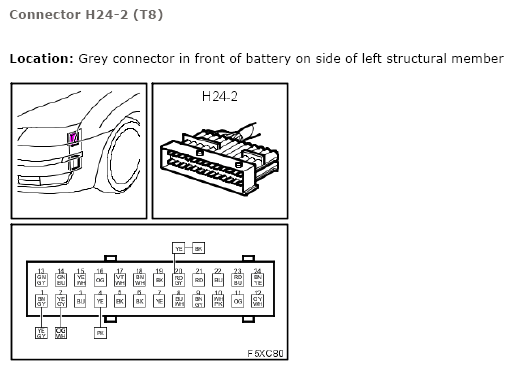

H24-2	Grey connector in front of battery on side of left structural member	Courtesy of SAAB-SCANIA OF AMERICA, INC.
-	102-pin connector	-

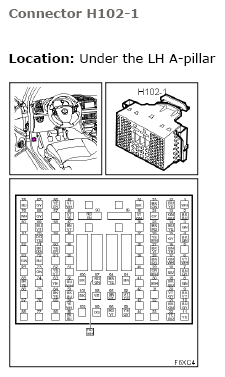

H102-1	Under left A-pillar	Courtesy of SAAB-SCANIA OF AMERICA, INC.
-	Crimp connections	-
J40	Approx. 190 mm from branching point crankshaft sensor towards the engine control module	Crimp J40, engine harness, Trionic
J45	Approx. 250 mm from branching point connector H24-2 towards the engine control module	Crimp J45, engine harness, Trionic -
J46	Approx. 130 mm from connector H24-2	Crimp J46, engine harness, Trionic -
J108	4D: In branching of grounding point G34 5D: Approx. 50 mm from branching of grounding point G34P/S towards right front door CV: Approx. 20 mm from branching point to grounding point G34P/S towards RH seat	-
J203	In branching point connector H24-1	-
-	Grounding points	-
G7	on the engine control module's top right attachment lug	Grounding point G7, B207
G34S	On the floor below the left A-pillar	Grounding point G34S -
