Coolant temperature sensor (202): B284

below oil pressure switch

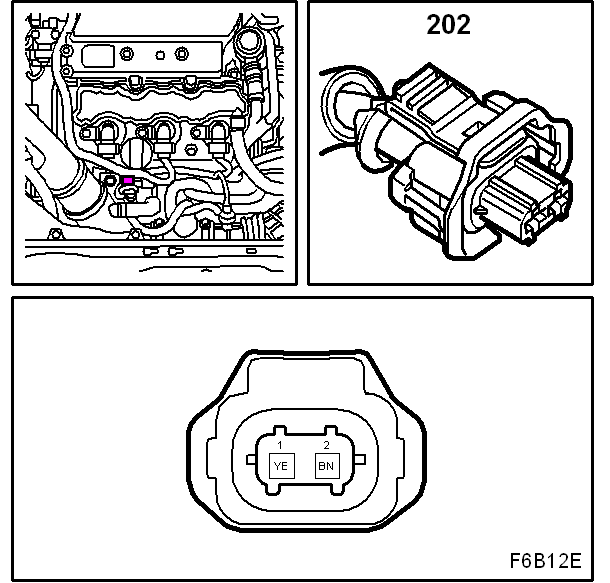

Fig 1: Identifying Coolant Temperature Sensor (B284) (202)

G05052653

Courtesy of SAAB-SCANIA OF AMERICA, INC.
