Oil Pressure
OIL PRESSURE SPECIFICATIONS

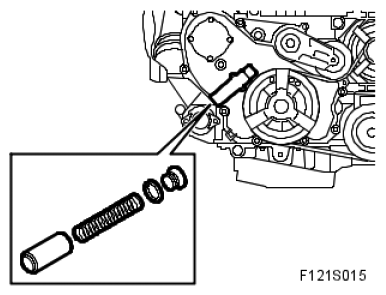

| Oil pump pressure-reducing valve opens at | bar | 5.0 ± 1 |
| Indicator lamp comes on when oil pressure drops below | - | 0.3 |
| Oil pressure at 1000 rpm and 5W-30 oil, crankcase | - | 2 (min) |
| Oil pressure at 1000 rpm and 5W-30 oil, cylinder head | - | 0.8 |
| Engine oil cooler thermostat opens at | - | 107 ± 2 |
| Engine oil cooler thermostat fully open at | - | 120 |
