Power Distribution Schematics

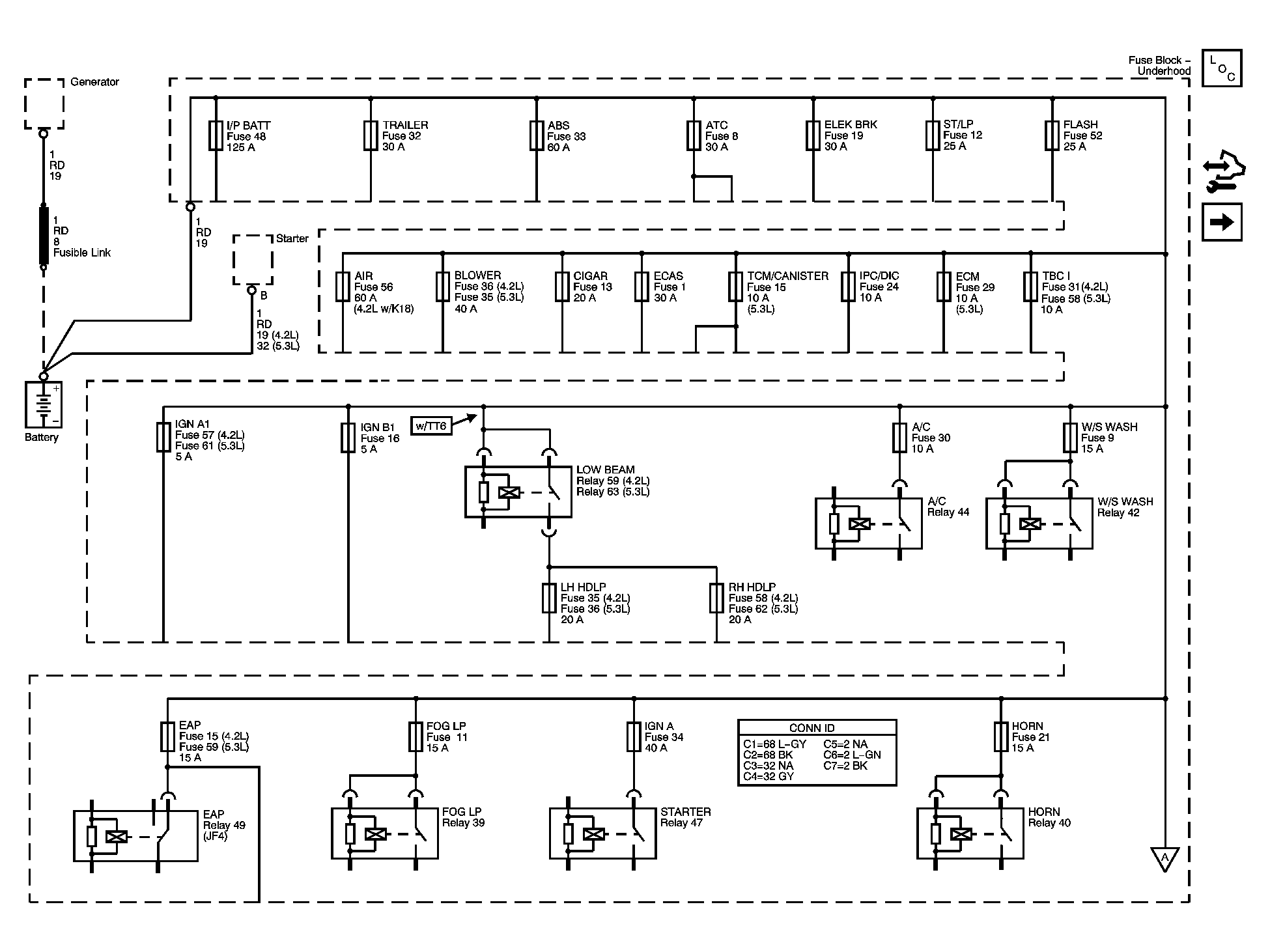

Fig 1: B+ Bus Schematic - Underhood Fuse Block - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

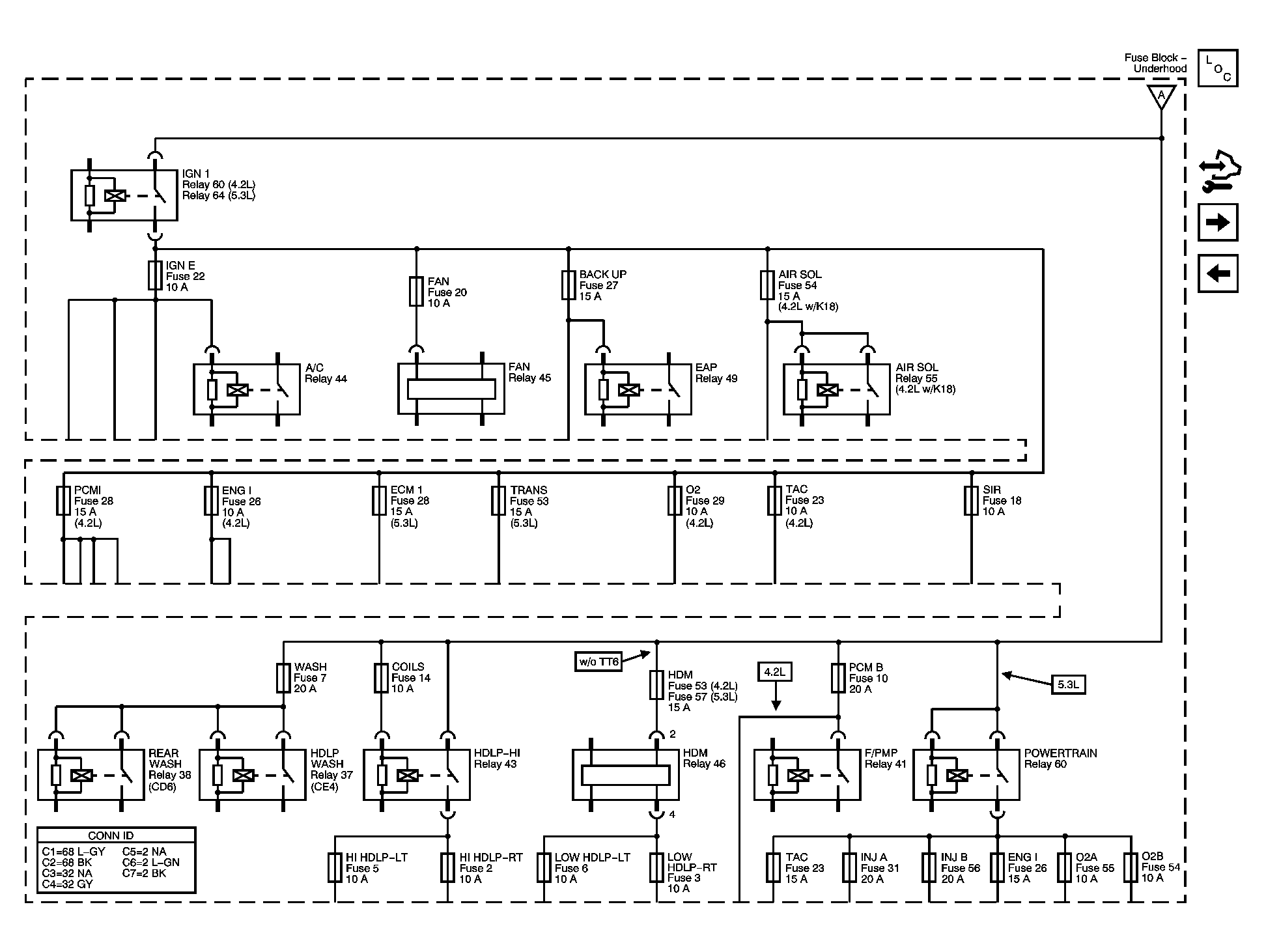

Fig 2: B+ Bus Schematic - Underhood Fuse Block - 2 Of 2

Courtesy of GENERAL MOTORS CORP.

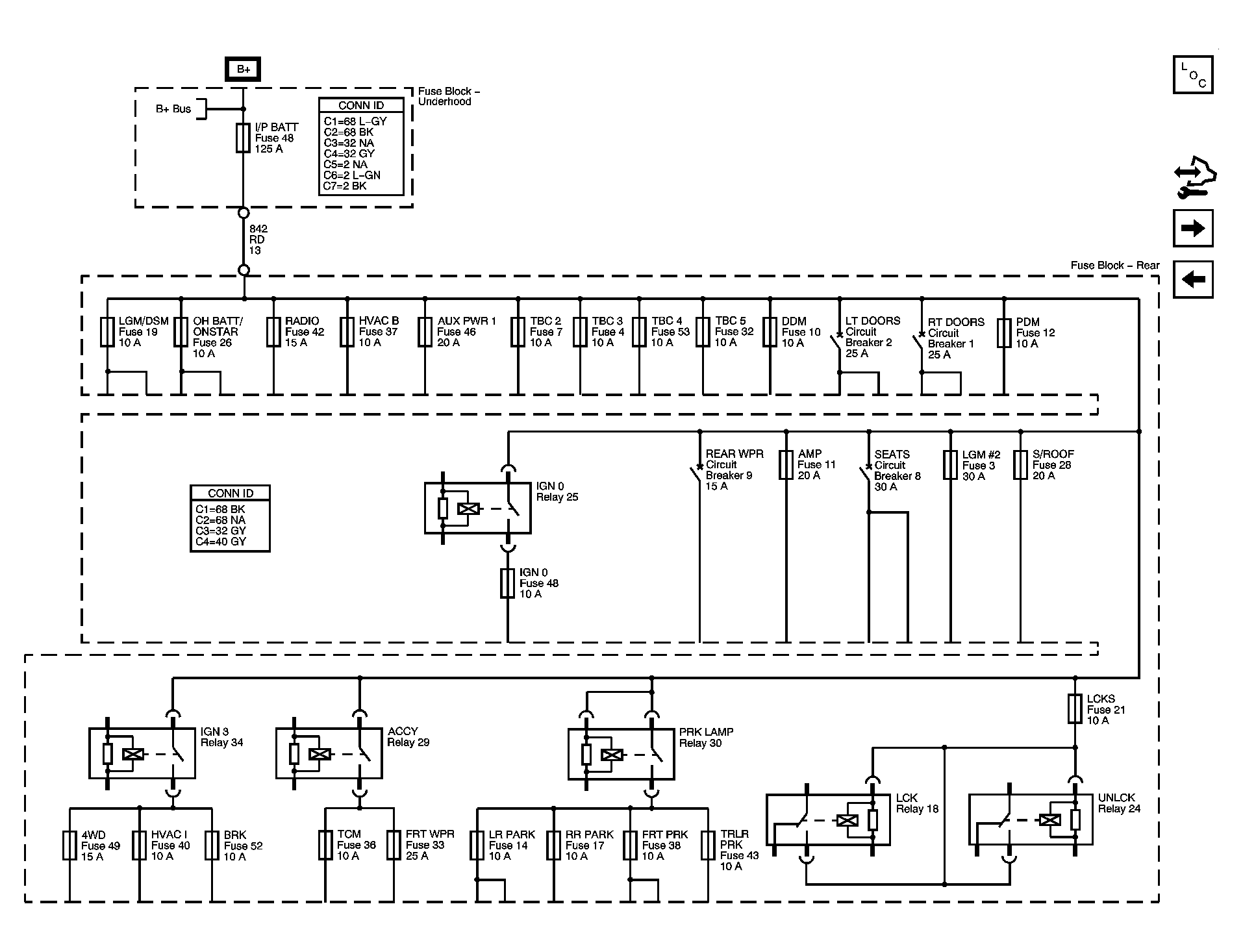

Fig 3: B+ Bus Schematic - Rear Fuse Block

Courtesy of GENERAL MOTORS CORP.

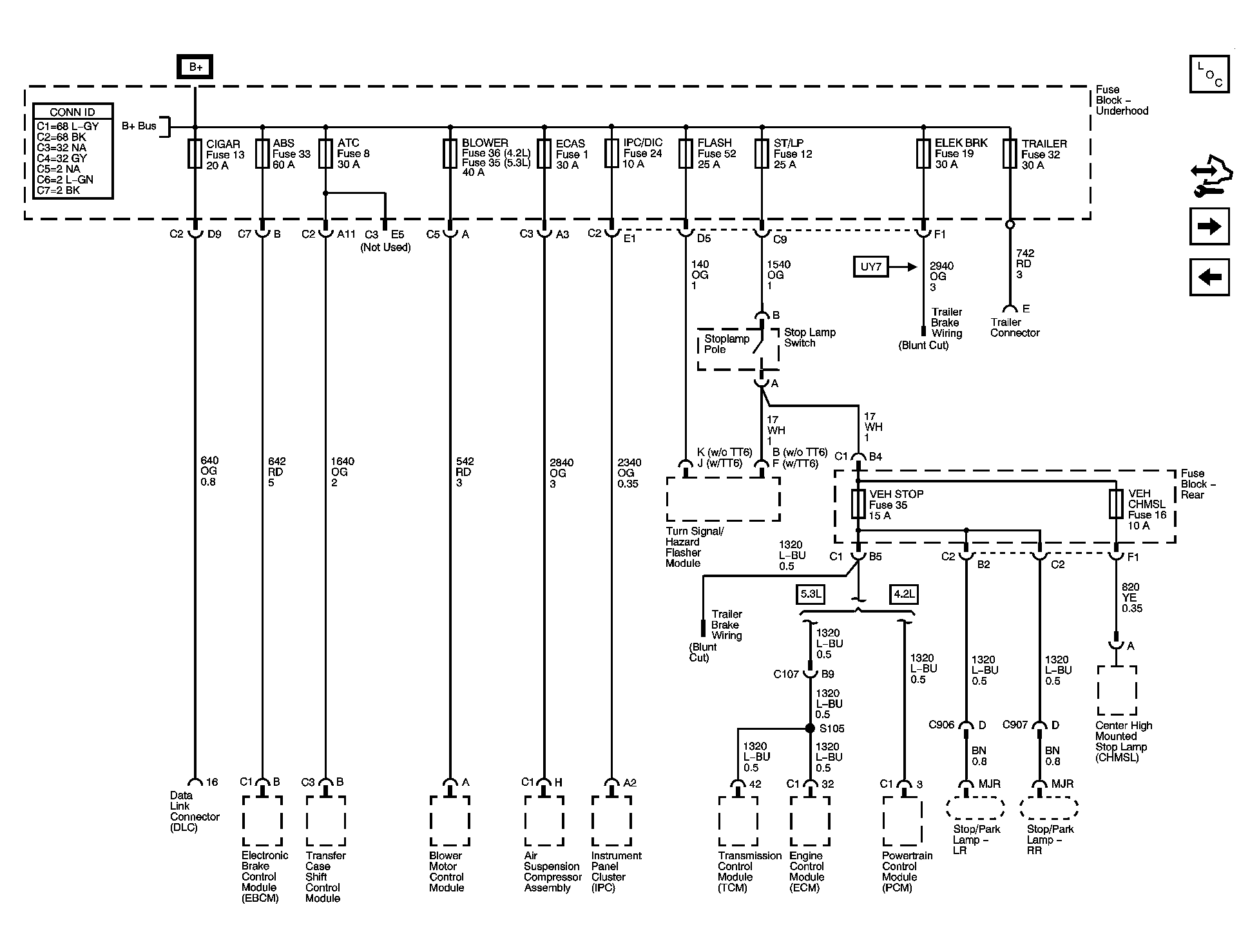

Fig 4: ABS, ATC, BLOWER, CIGAR, ECAS, ELEC BRK, FLASH, IPC/DIC, ST/LP, TRAILER, VEH CHMSL & VEH STOP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

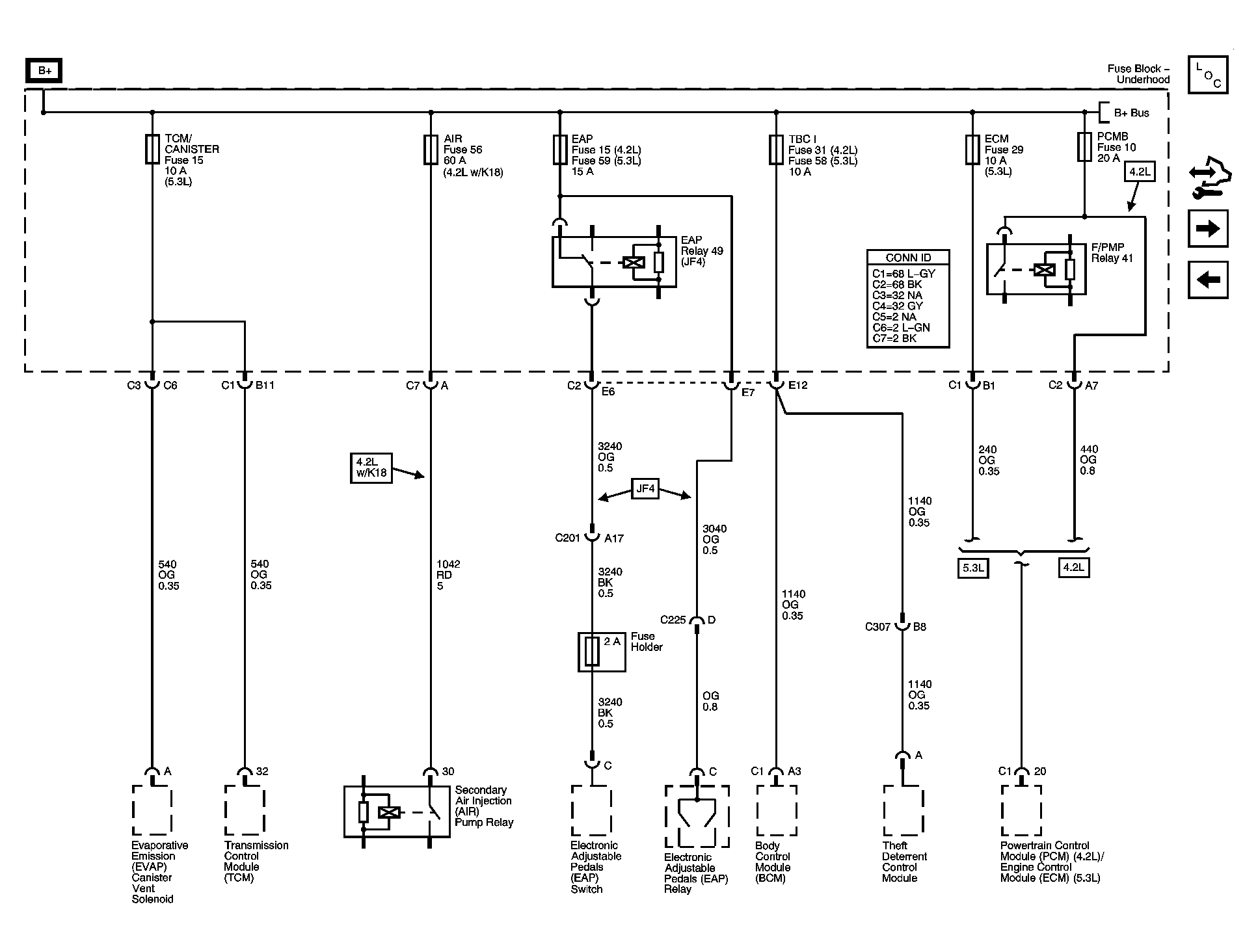

Fig 5: AIR, EAP, ECM, PCMB, TBC1 & TCM/CANISTER Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

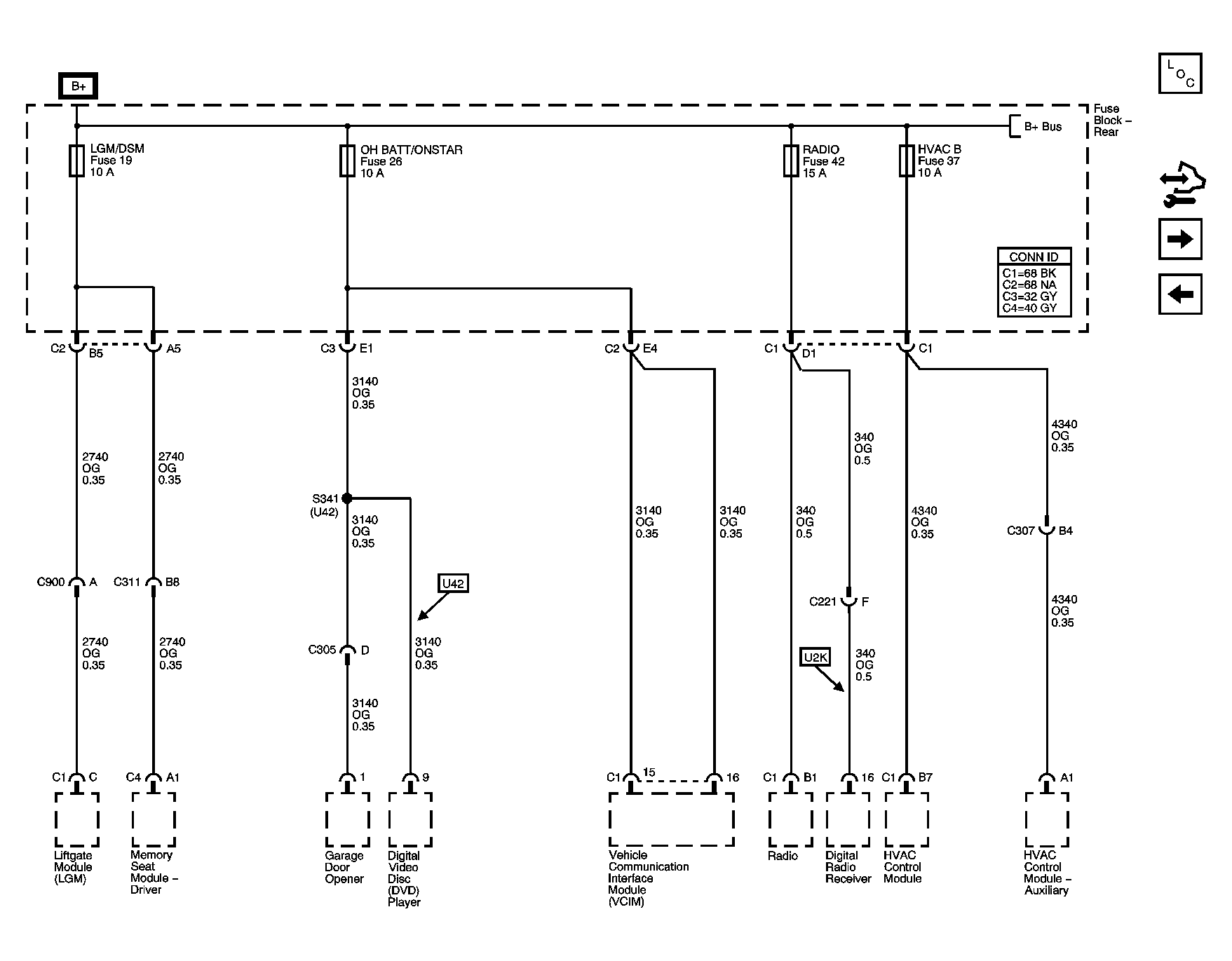

Fig 6: HVAC B, LGM/DSM, OH BATT/ONSTAR & RADIO Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

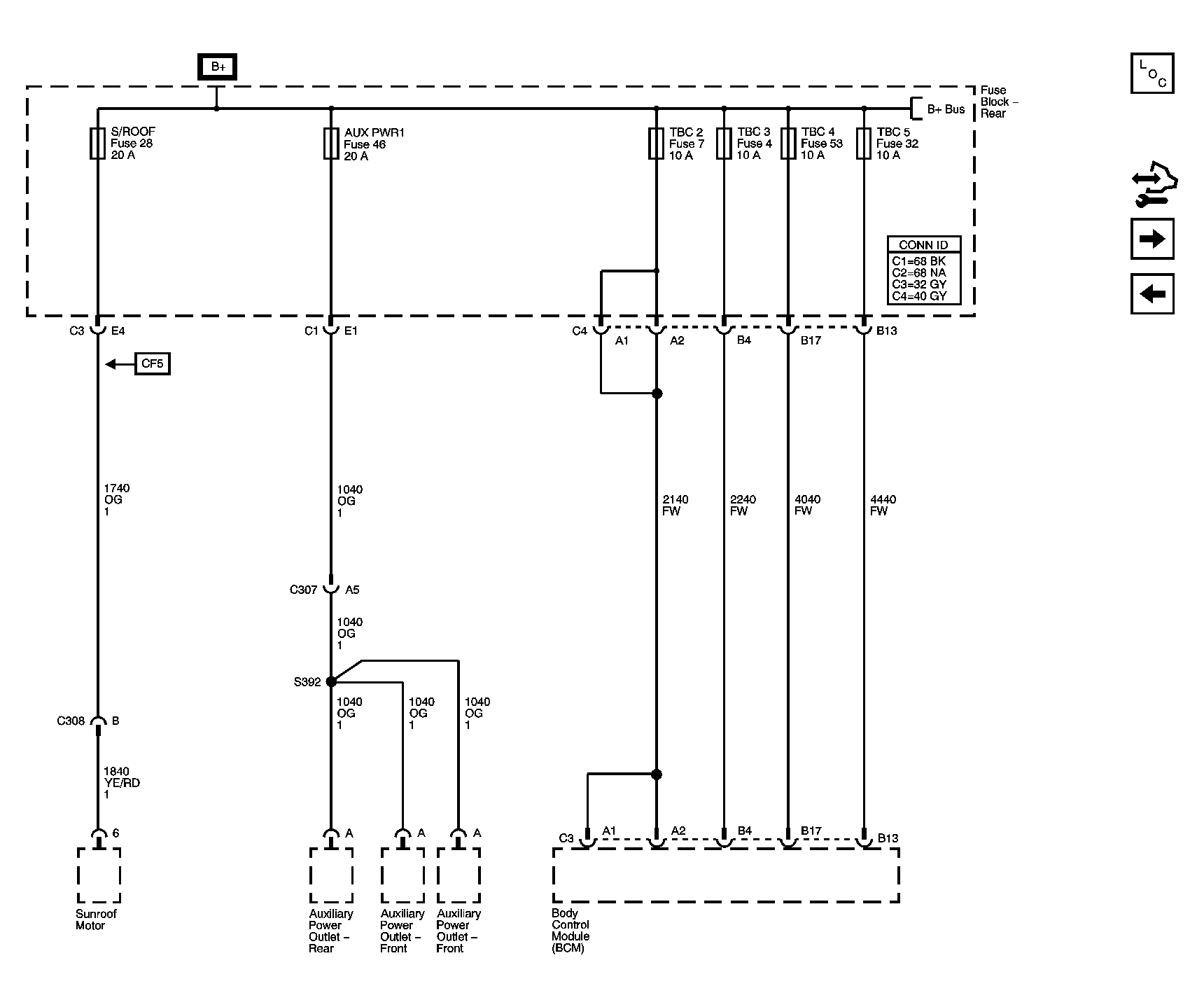

Fig 7: AUX PWR 1, S/ROOF, TBC 2, TBC 3, TBC 4 & TBC 5 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

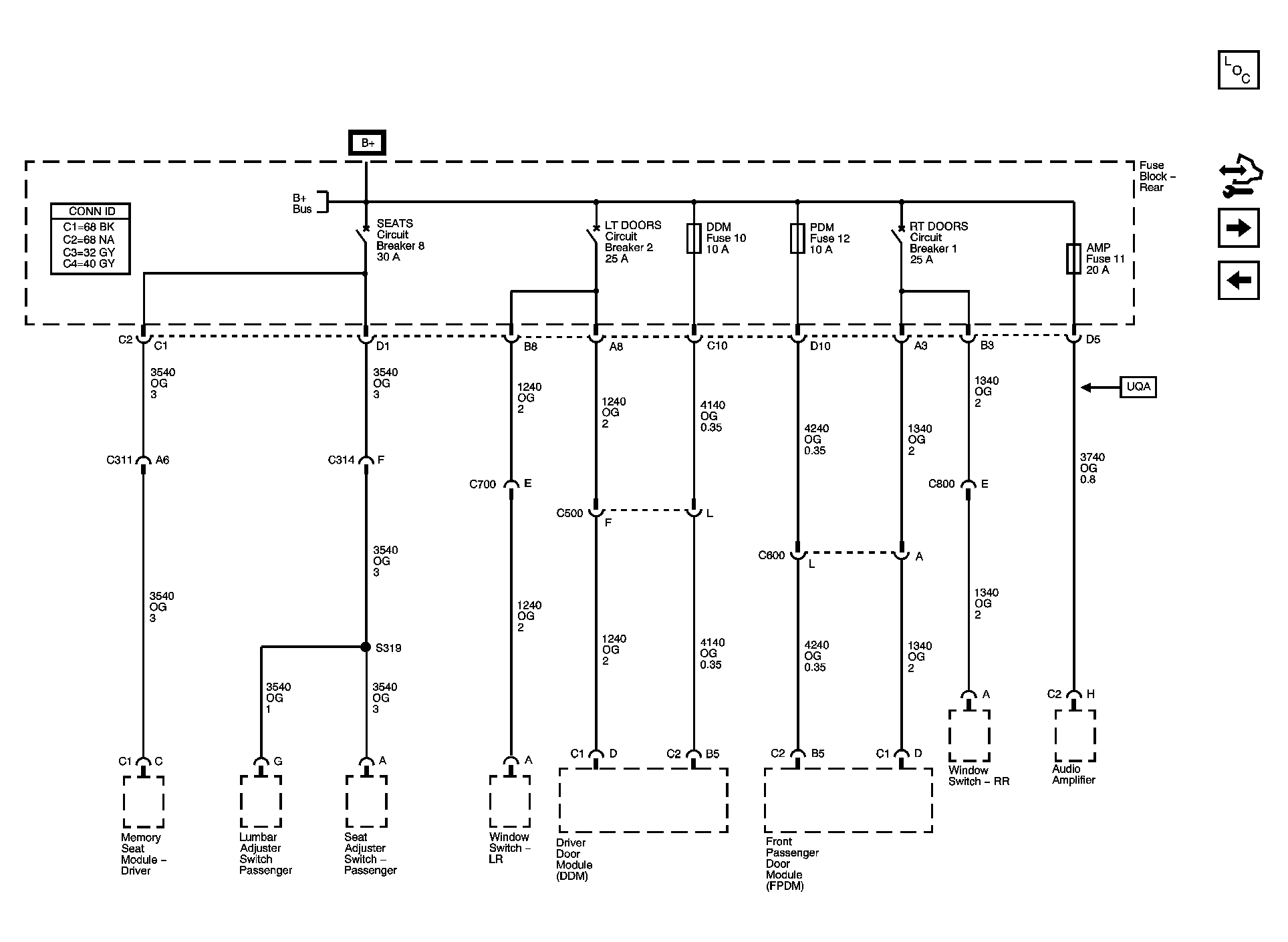

Fig 8: AMP, DDM, PDM, Fuses, LT DOORS, RT DOORS & SEATS Circuit Breakers Schematic

Courtesy of GENERAL MOTORS CORP.

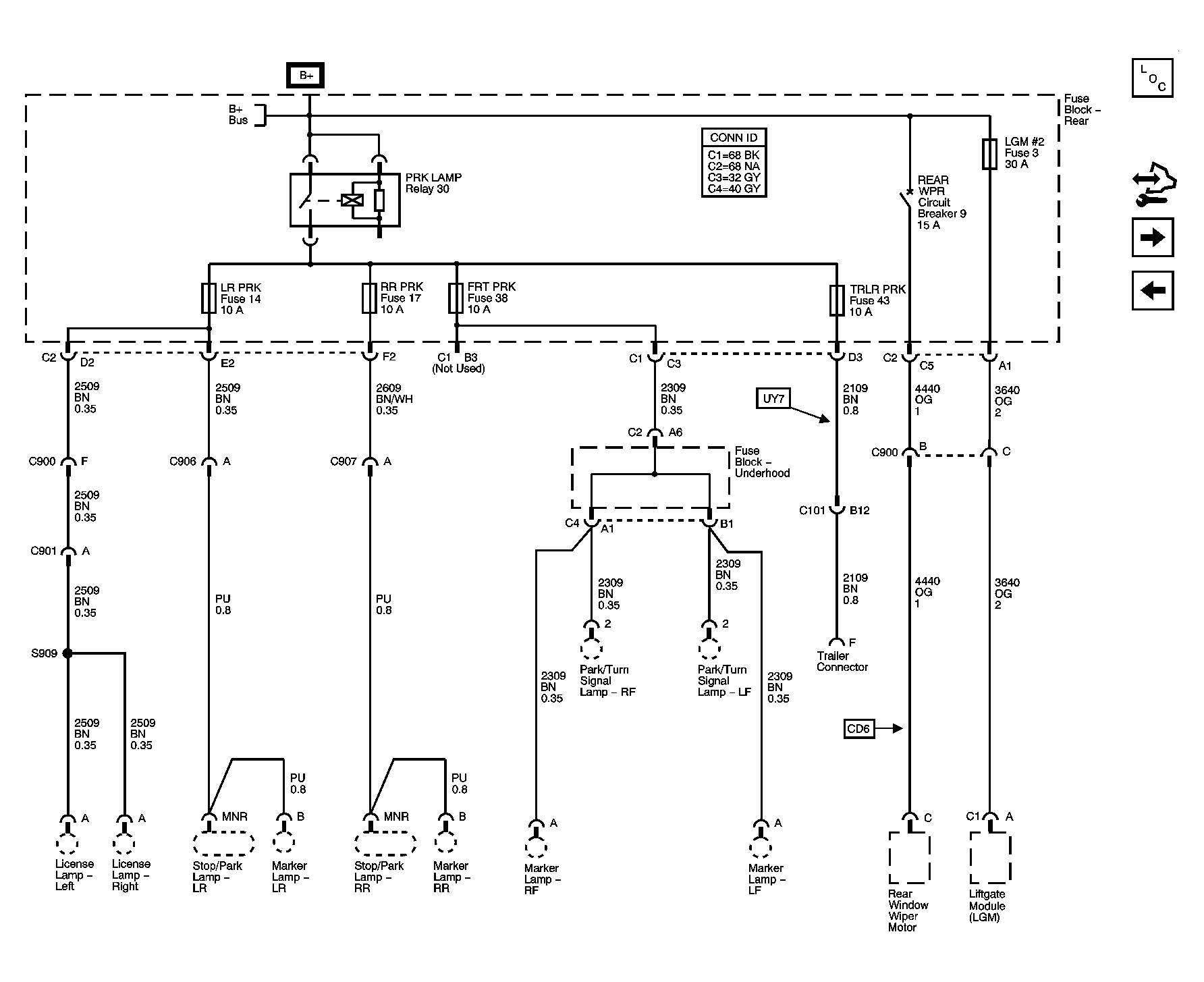

Fig 9: FRT PRK, LGM #2, LR PRK, RR PAK, TRLR PRK Fuses & REAR WPR Circuit Breakers Schematic

Courtesy of GENERAL MOTORS CORP.

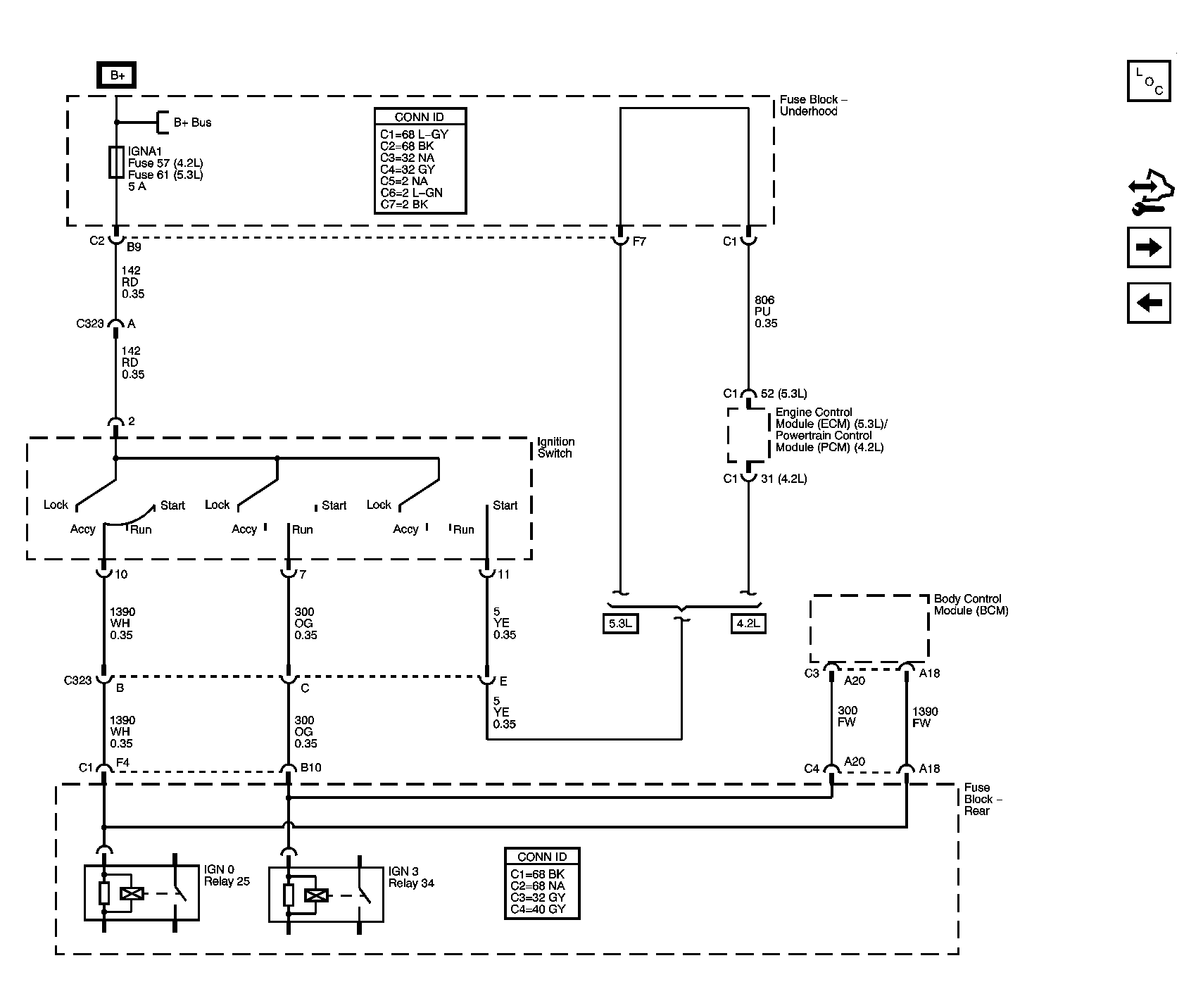

Fig 10: Ignition Switch - ACCY/RUN/START, RUN, START Bus Bars & IGNA1 Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

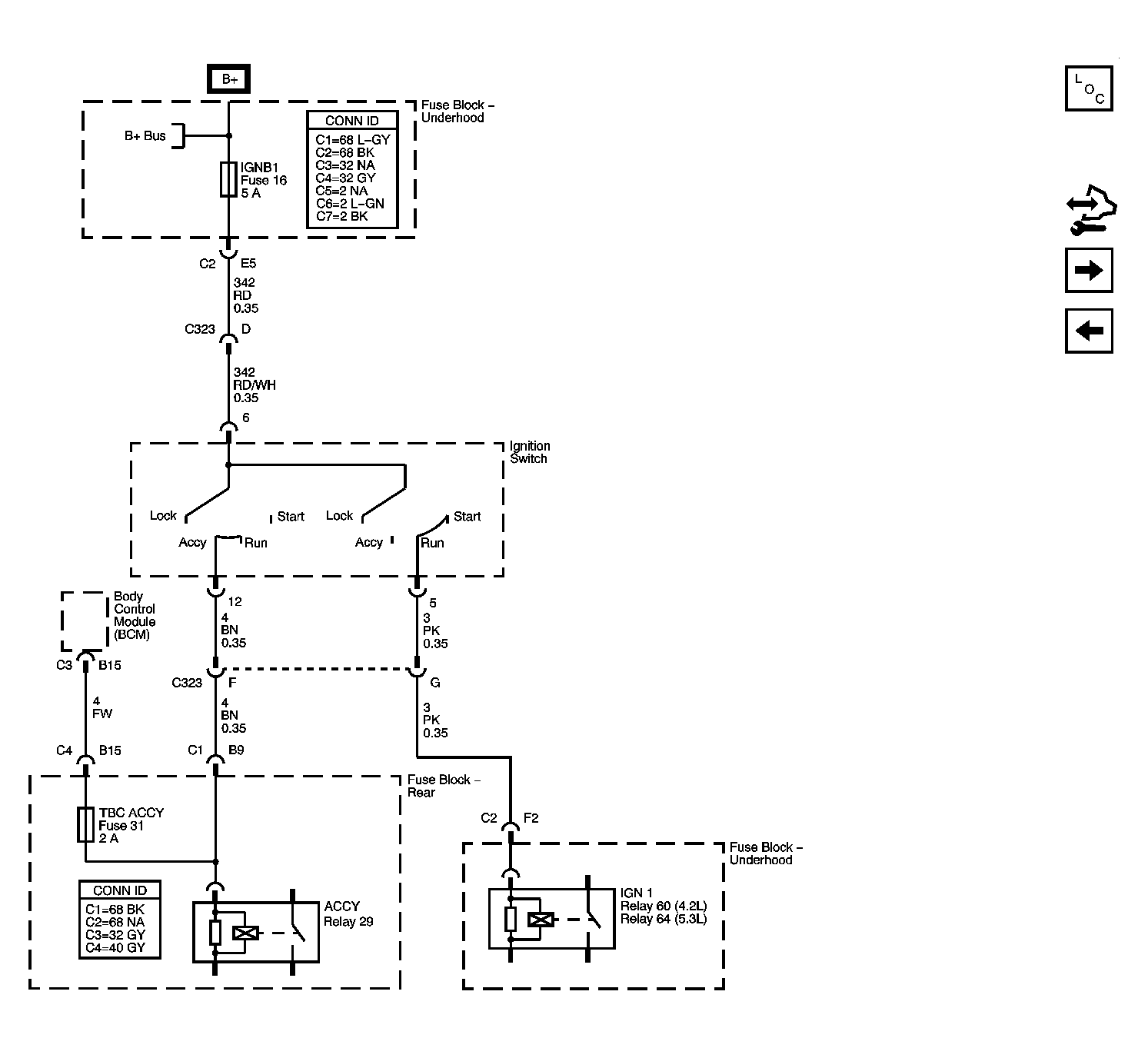

Fig 11: Ignition Switch - ACCY/RUN, RUN/START Bus Bars & IGNB1 Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

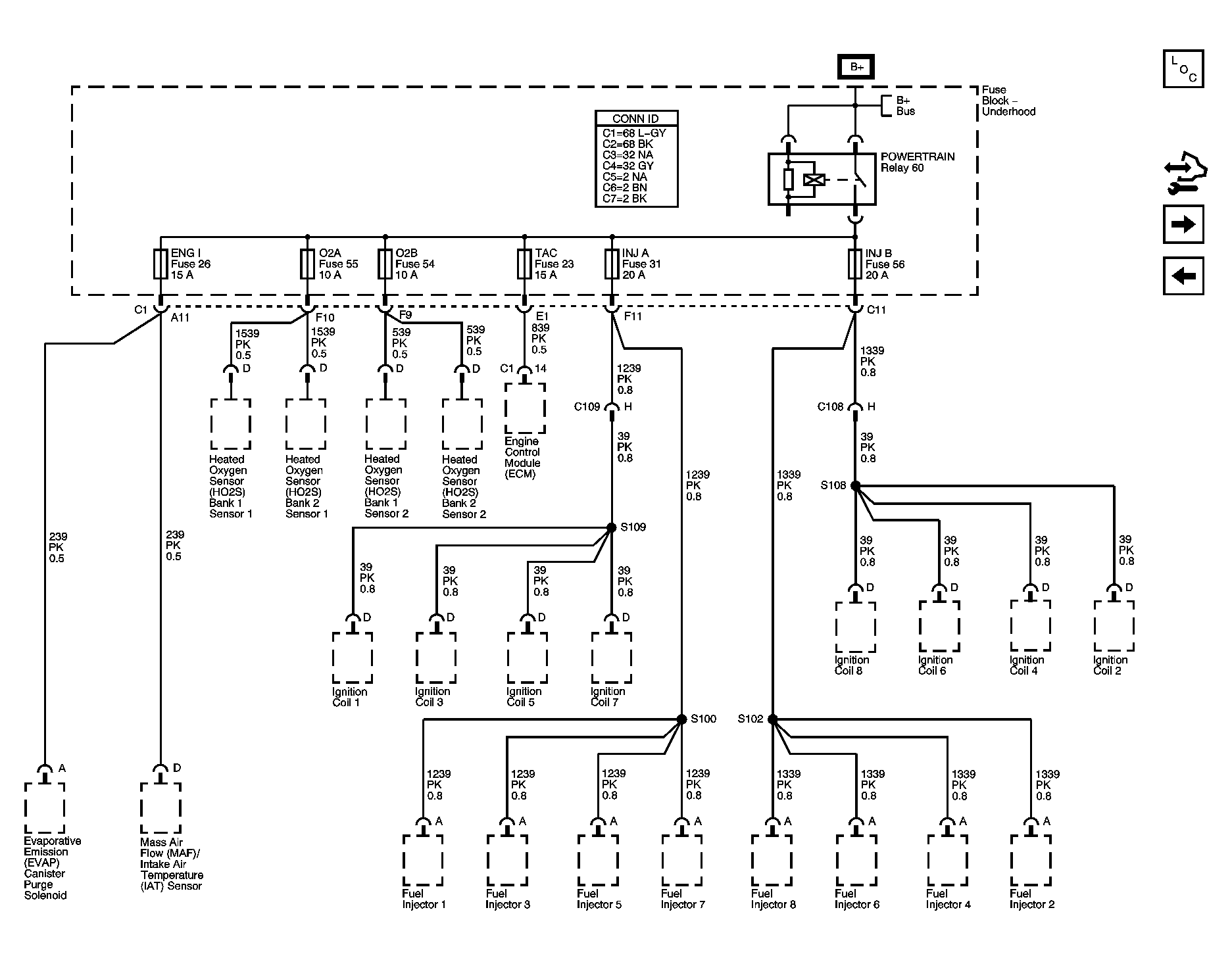

Fig 12: ENG 1, INJ A, INJ B, 02A, 02B & TAC Fuses Schematic - 5.3L

Courtesy of GENERAL MOTORS CORP.

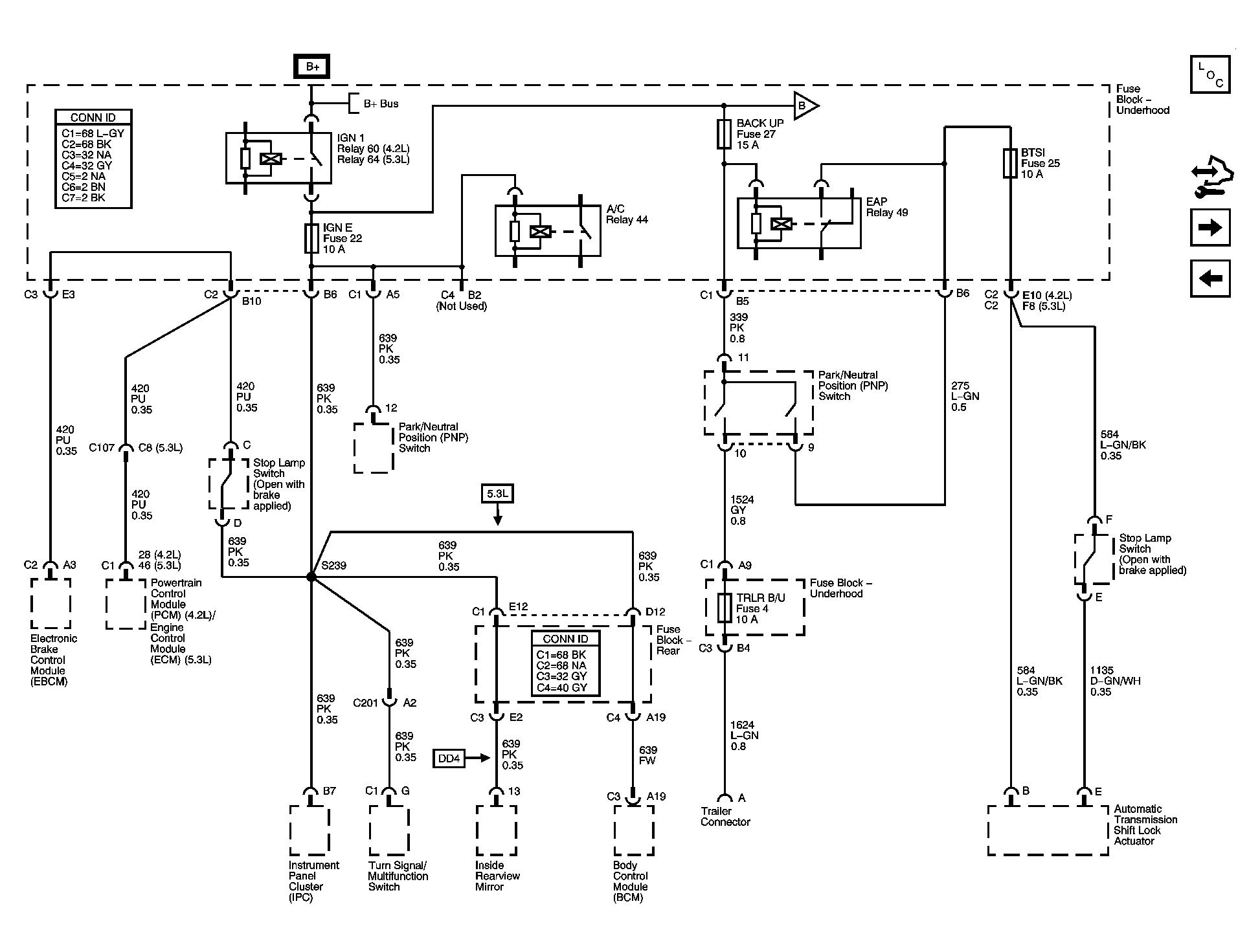

Fig 13: BACK UP, BTSI, IGN E & TRLR B/U Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

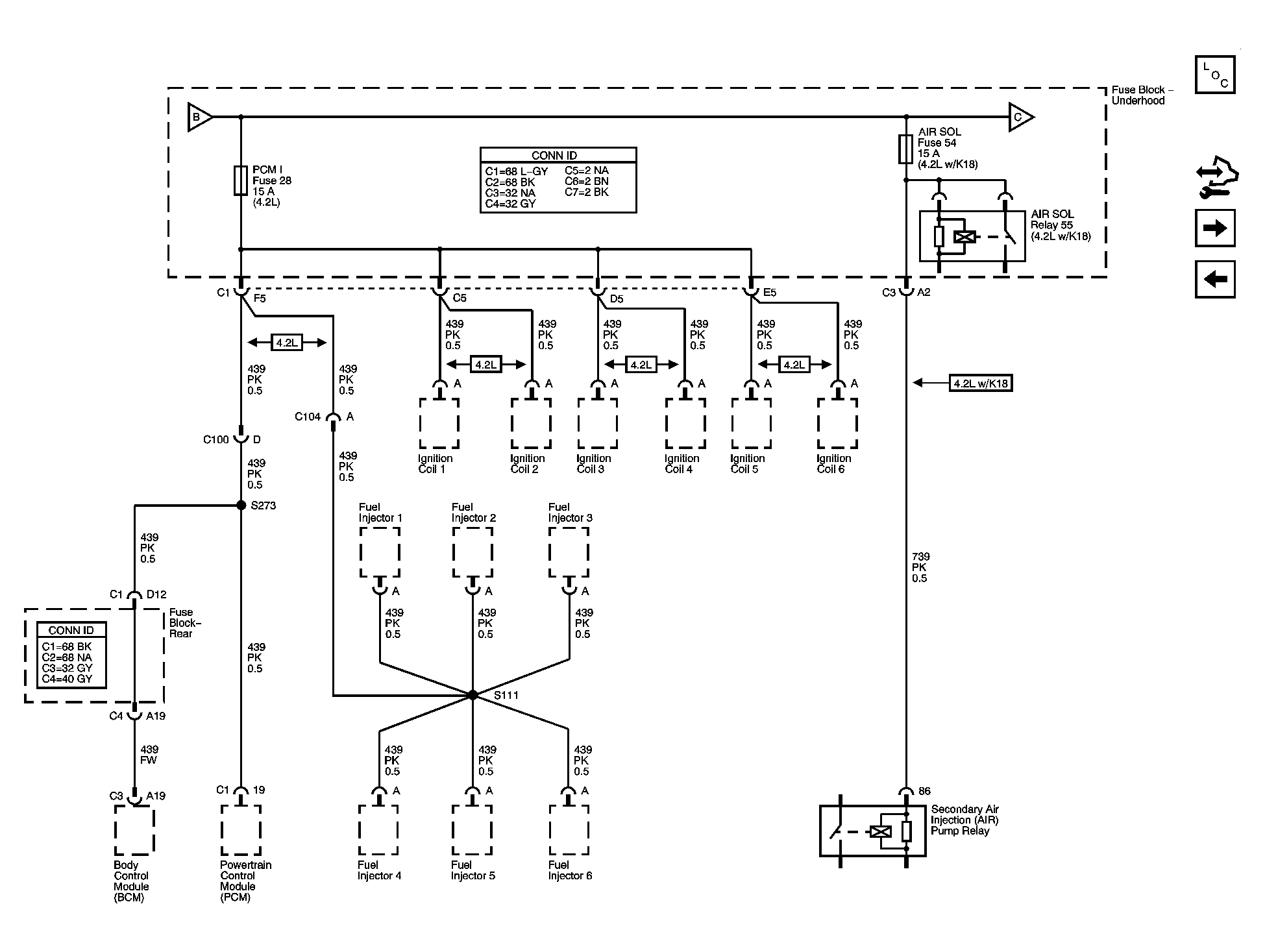

Fig 14: AIR SOL & PCMI Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

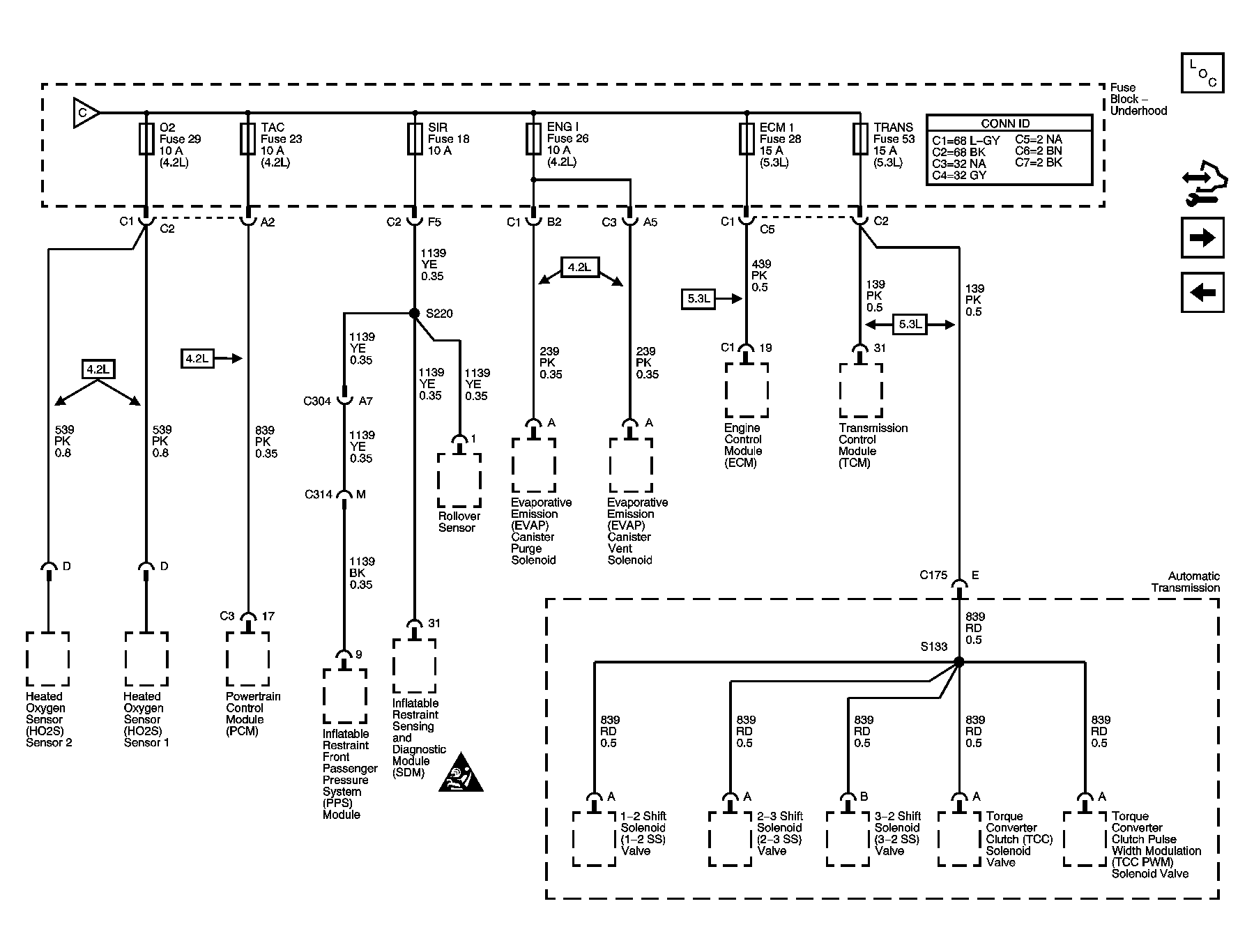

Fig 15: ECMI, ENG1, 02, SIR, TAC & TRANS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

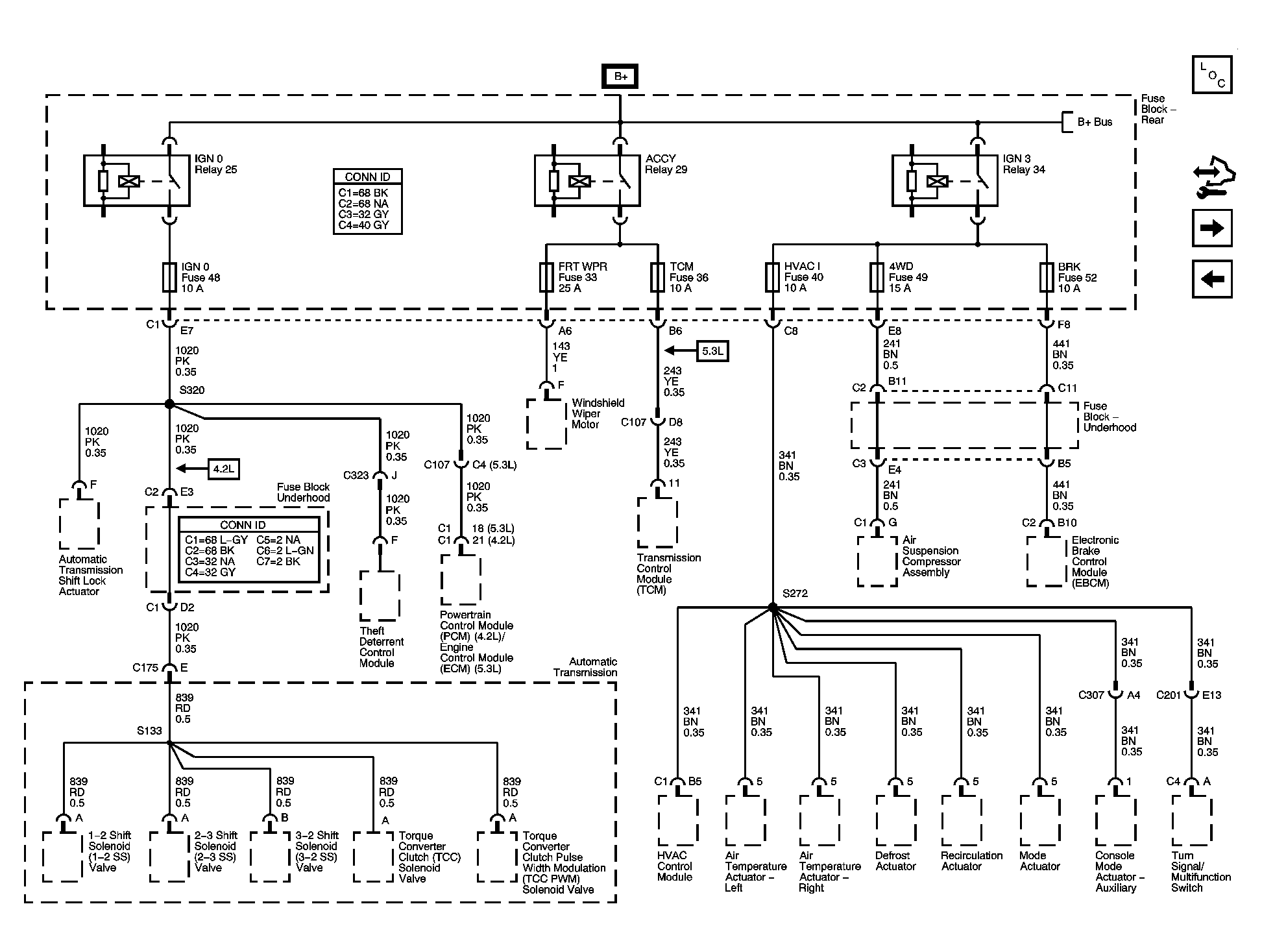

Fig 16: 4WD, BRK, FRT WPR, HVACI, IGNO & TCM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

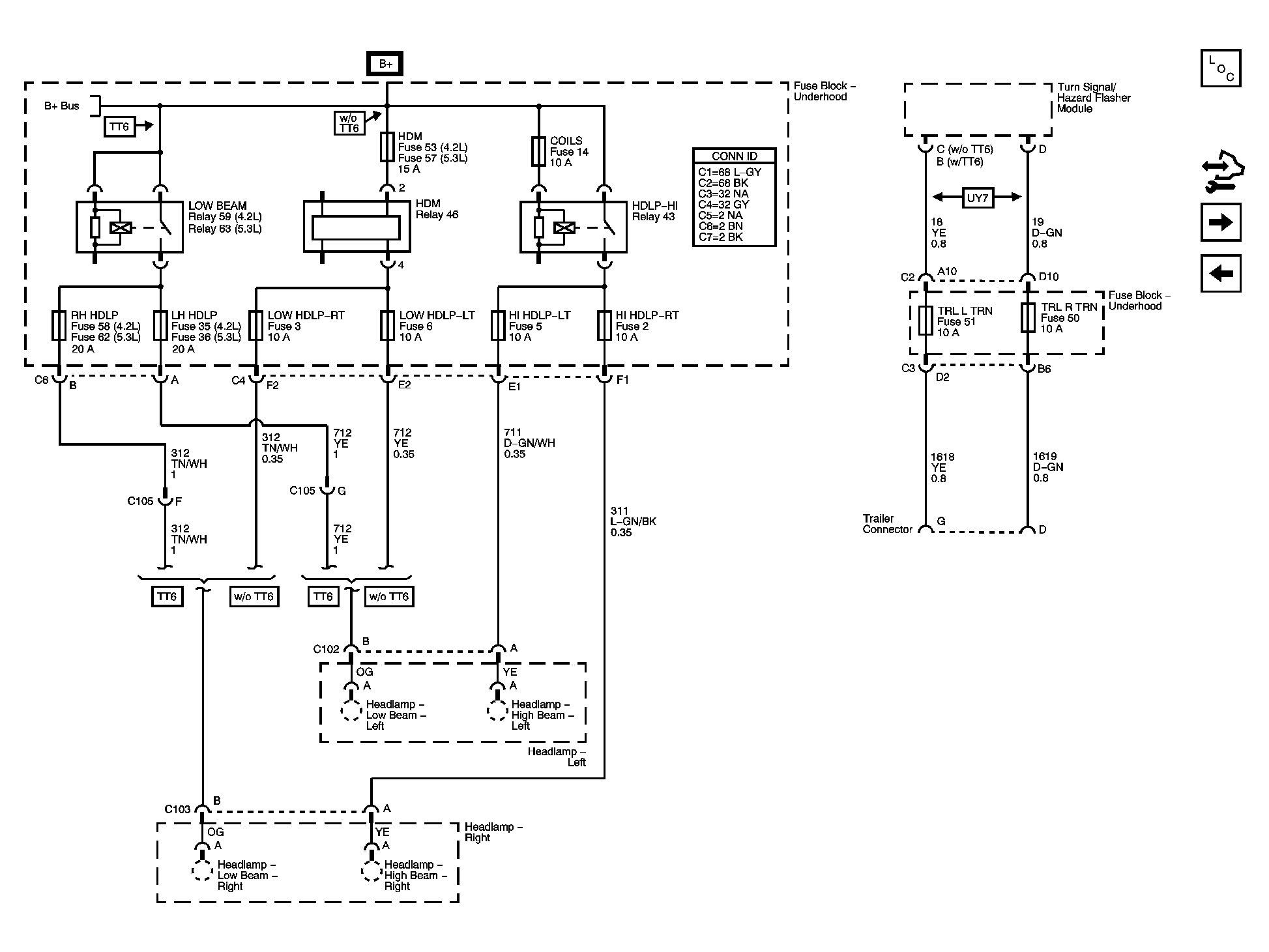

Fig 17: COILS, HDM, HI HDLP-LT, HI HDLP-RT, LH HDLP, LOW HDLP-LT, LOW HDLP-RT, RH HDLP, TRL L TRN & TRL R TRN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

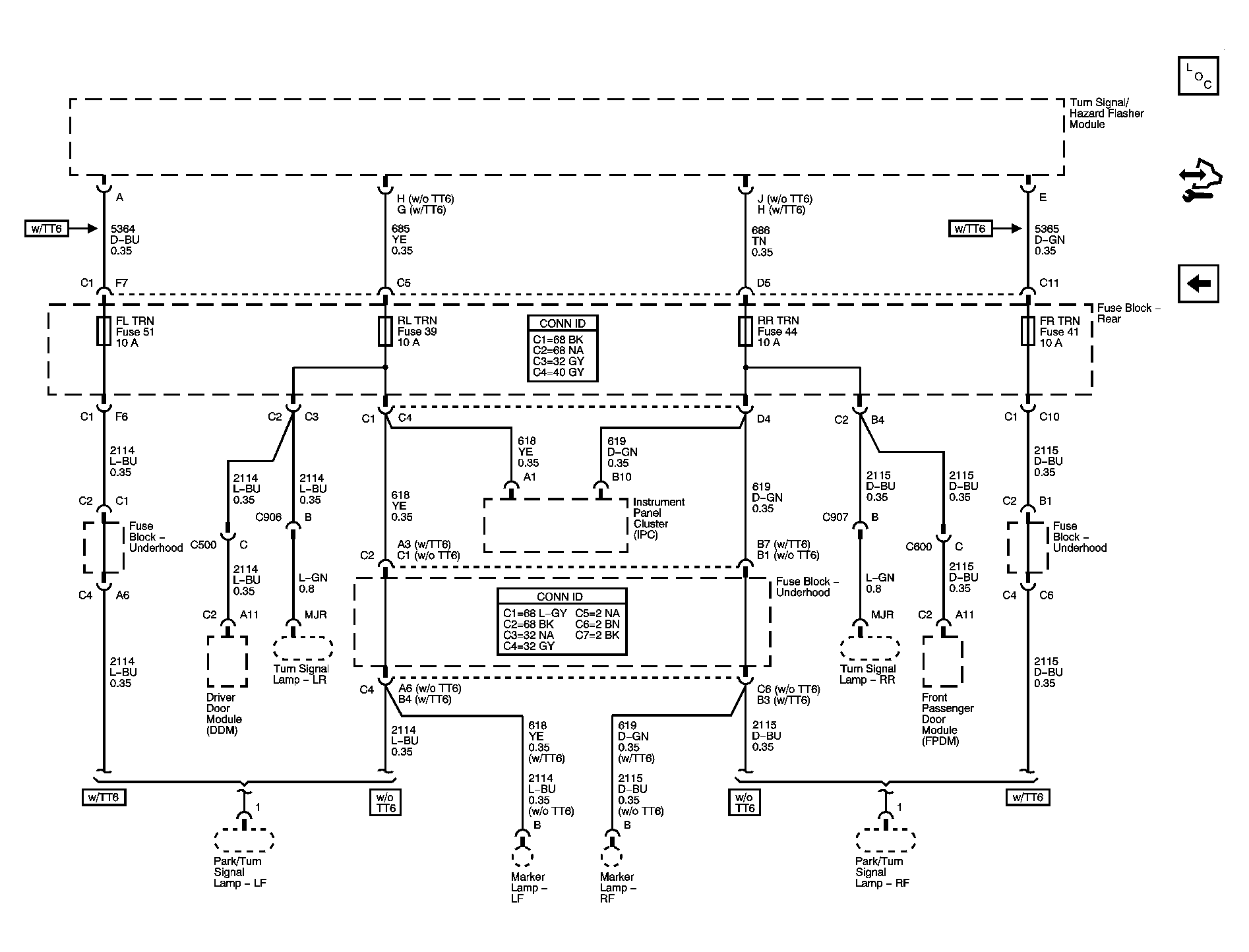

Fig 18: FL TRN, FR TRN, RL TRN & RR TRN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
