Engine Compartment

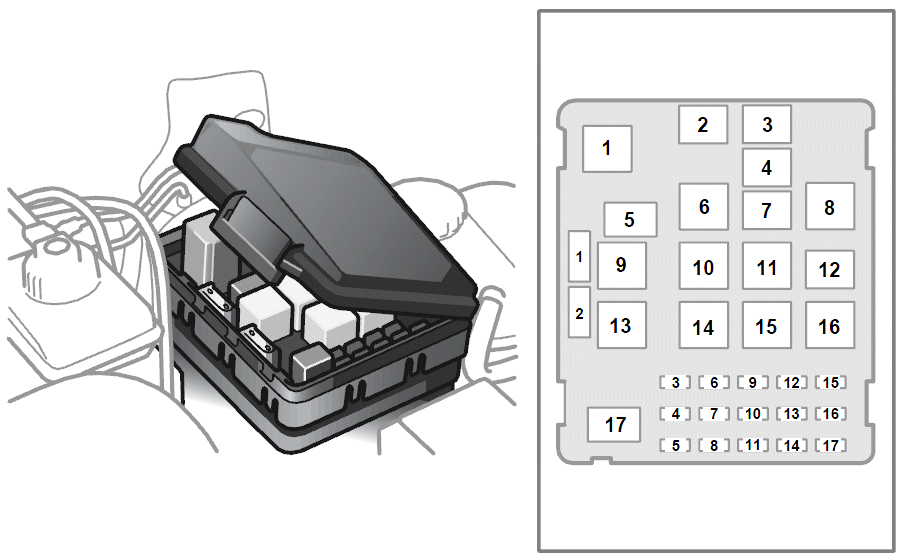

Underhood Fuse/Relay Box is located left side of engine compartment.
Underhood Fuse/Relay Box
| Fuse/Relay No. | Amps | Fuse Function |
|---|---|---|
| Fuses | ||
| 1 | 40A | Radiator Fan, High Speed |
| 2 | 40A | ABS/ESP |
| 3 | 30A | ABS/ESP |
| 4 | 7.5A | Load Angle Sensor (Cars With Xenon Headlights) |
| 5 | 15A | Heater |
| 6 | 10A | A/C; Car Alarm Siren |
| 7 | 15A | Bulb Test |
| 8 | - | - |
| 9 | 20A | Headlight Washers |
| 10 | 15A | High Beam Headlight, Left |
| 11 | 15A | Low Beam Headlight Left |
| 12 | 15A | High Beam Headlight, Right |
| 13 | 15A | Low Beam Headlight, Right |
| 14 | 30A | Radiator Fan, High Speed |
| 15 | 15A | Fog Lights (Front Spoiler) |
| 16 | 30A | Wiper, Rear |
| 17 | 15A | Horn |
| 18 | - | - |
| Relays | ||
| 1 | - | Bulb Test; Head Light; High Beam Flasher |
| 2 | - | Headlight Washer |
| 3 | - | Front Fog Lights |
| 4 | - | Wiper, Rear (9-5 SportWagon) |
| 5 | - | - |
| 6 | - | - |
| 7 | - | Rain Sensor |
| 8 | - | Radiator Fan, Low Speed |
| 9 | - | Radiator Fan, High Speed |
| 10 | - | A/C-compressor |
| 11 | - | Radiator Fan, High Speed, Right Fan |
| 12 | - | Horn |
| 13 | - | Extra Lights (Accessory) |
| 14 | - | High Beam Headlight |
| 15 | - | Low Beam Headlight |
| 16 | - | - |
| 17 | - | Windshield Wipers |
