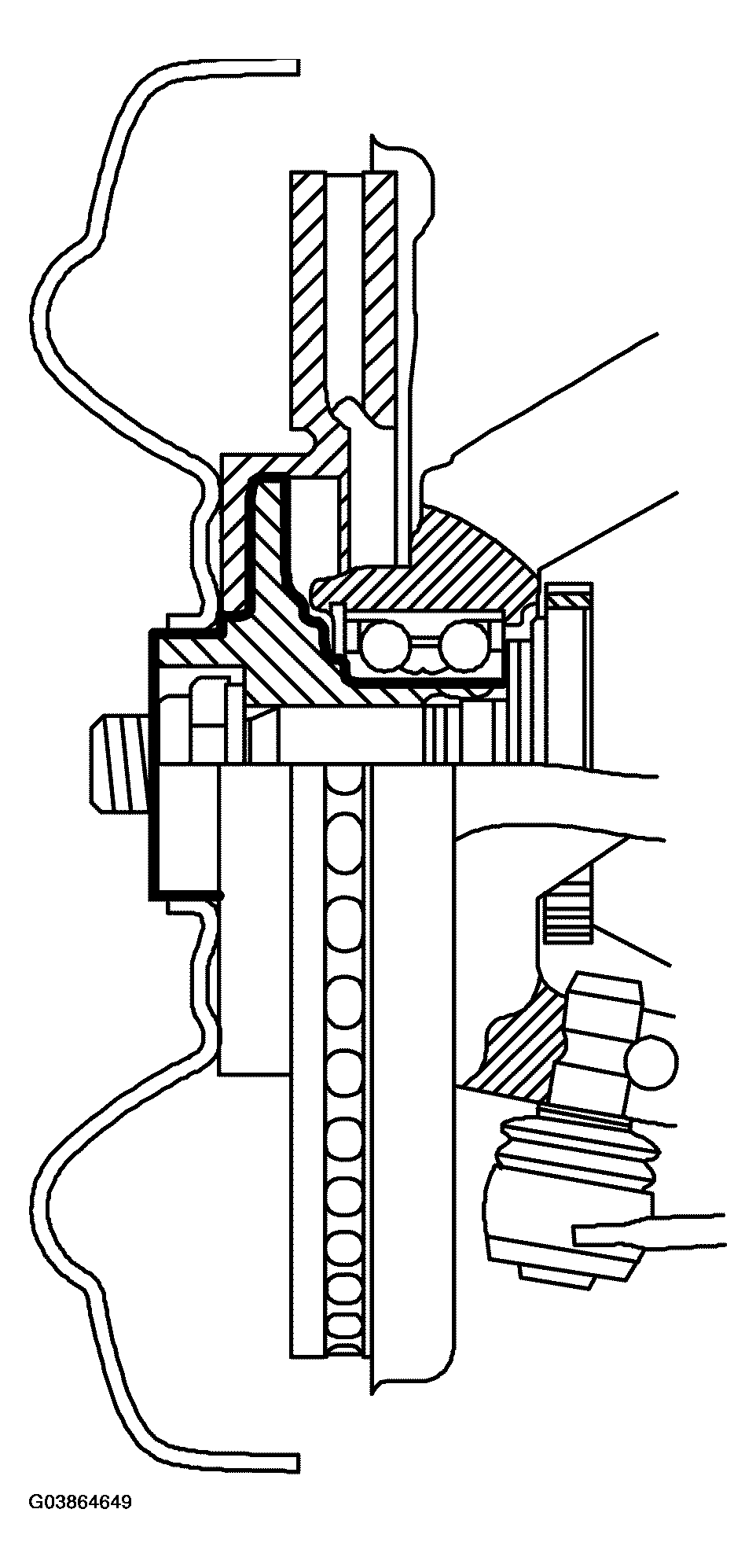

Front Wheel Hub
The wheel bearings are incorporated in the hub and are not part of a shaft or stub-axle assembly. The bearings are of double-row, angular-contact type which are permanently lubricated and maintenance-free. They can be replaced separately. The hub is of lightweight design and centered directly on the bearing.
The front-wheel bearing is a press fit in the steering swivel member and secured with a circlip. The hub is then pressed into the bearing.
