Ground, Rain Sensor: Ground: Notes

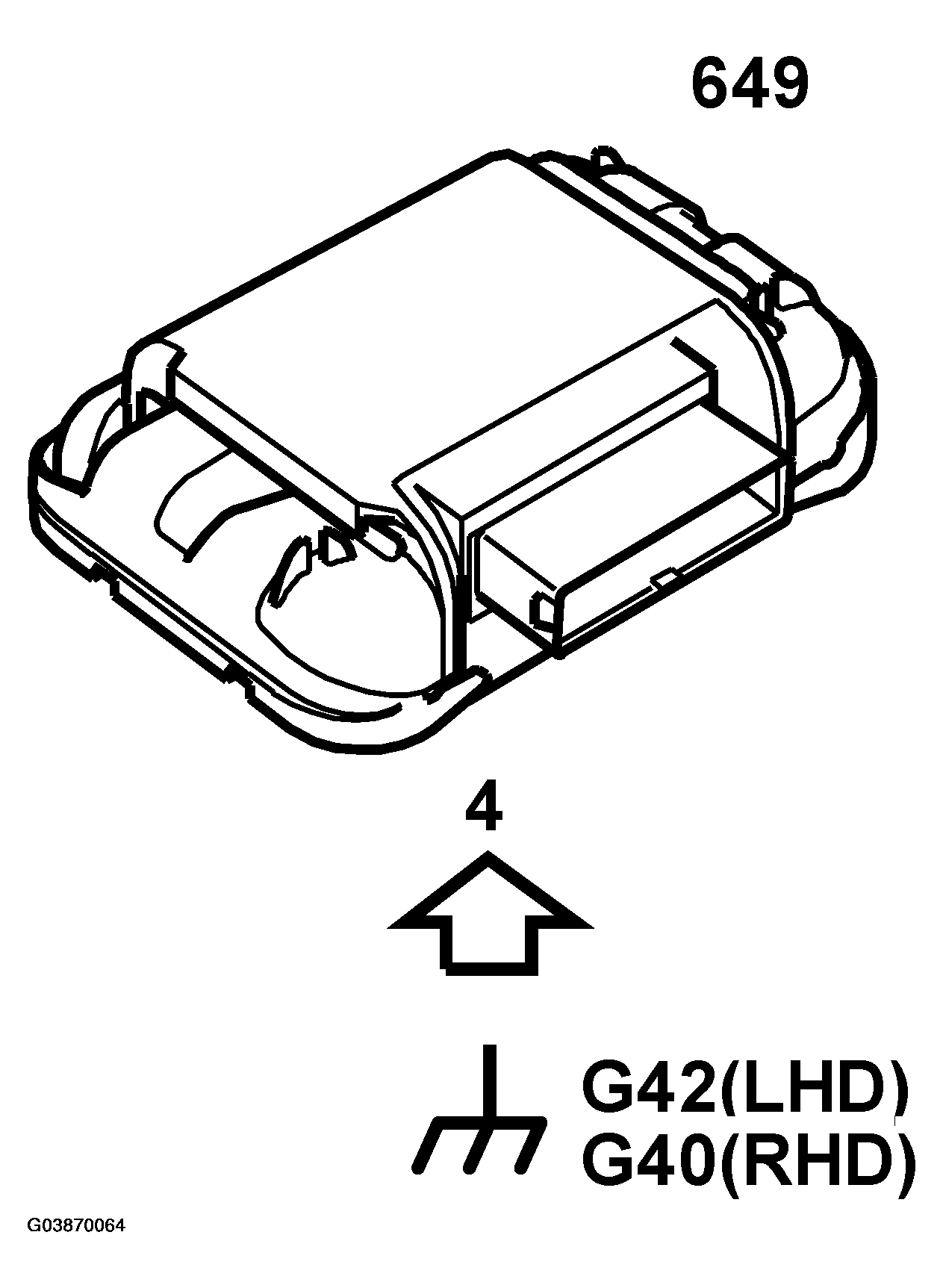

Fig 1: Identifying Rain Sensor

G03870064

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The rain sensor is grounded through pin 4 of grounding point G42 (LHD) or G40 (RHD).
