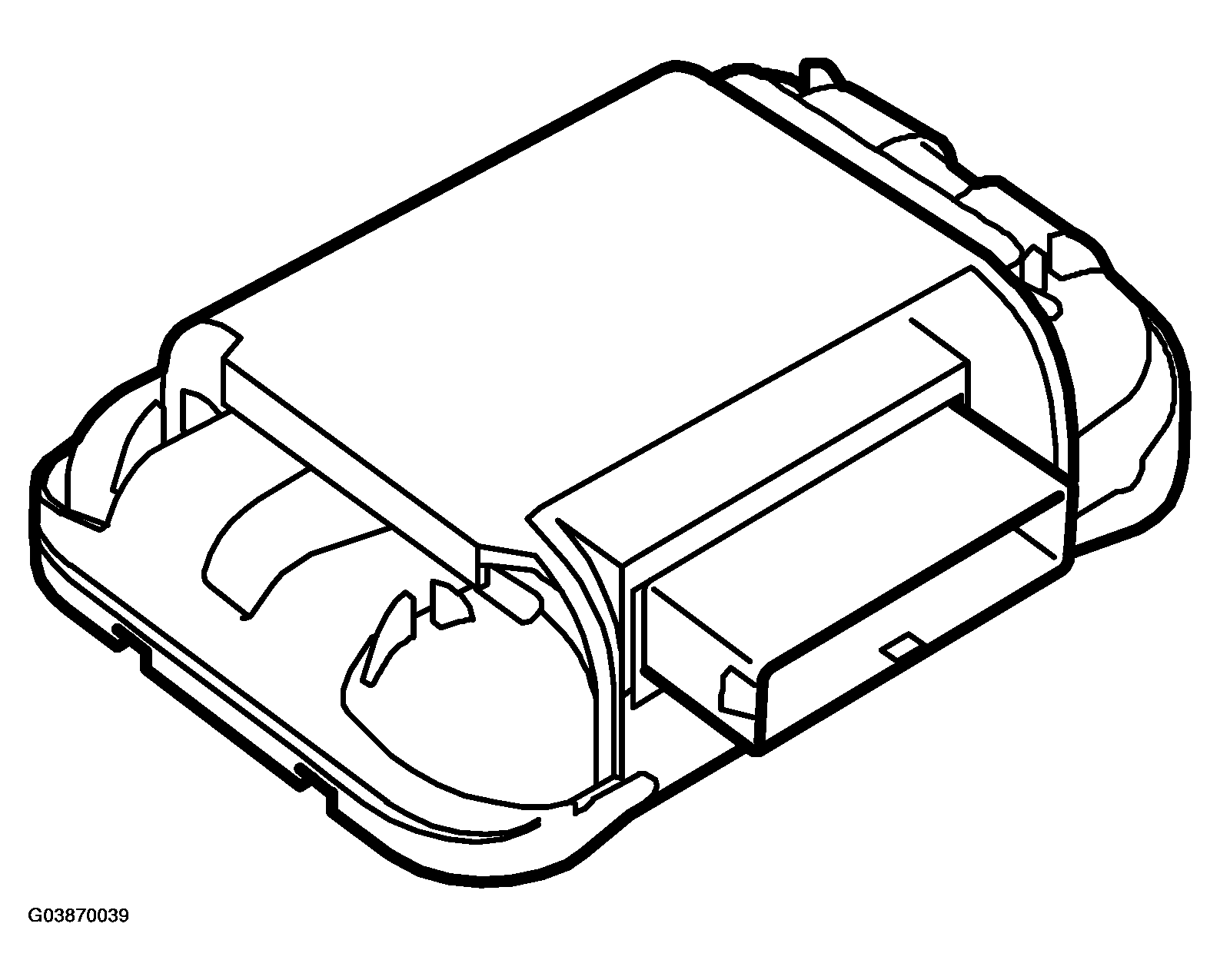

Rain Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC. SPECIAL TOOLS COMPATIBILITY - RAIN SENSOR
| Location: |
|
On windscreen in front of rear-view mirror |
| Manufacturer: |
|
Bosch |
| Type designation |
|
RSM 3SA |
| Number of pins |
|
9 |
| Quiescent current consumption |
mA |
0 |
| Current consumption, quiescent, ignition on |
mA |
120 |
| Max. current consumption |
mA |
150 |
