Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Gear Selector Mechanism (Automatic) >> Adjustment - Replacement >> Indicator display >> To remove

To remove

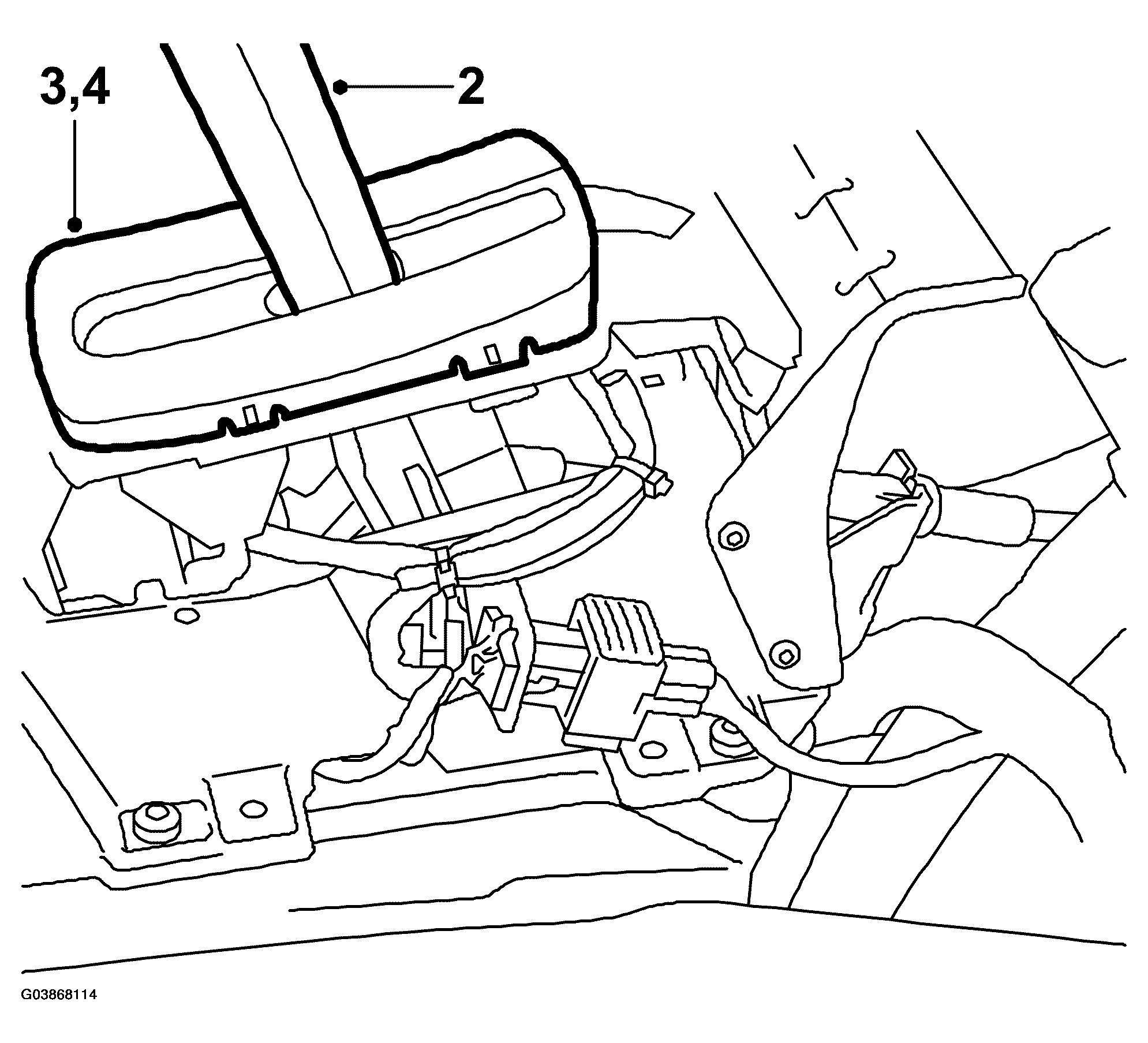

Fig 1: Illustration For Step 2 - 4
G03868114Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the rim around the indicator display.
  2. Remove the gear selector casing, see GEAR SELECTOR CASING  .
  3. Lift up the indicator display.
  4. Lift off the indicator display.
