Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Component Location >> Transmission range switch, automatic (245)

Transmission range switch, automatic (245)

Location:  On automatic transmission casing in engine bay

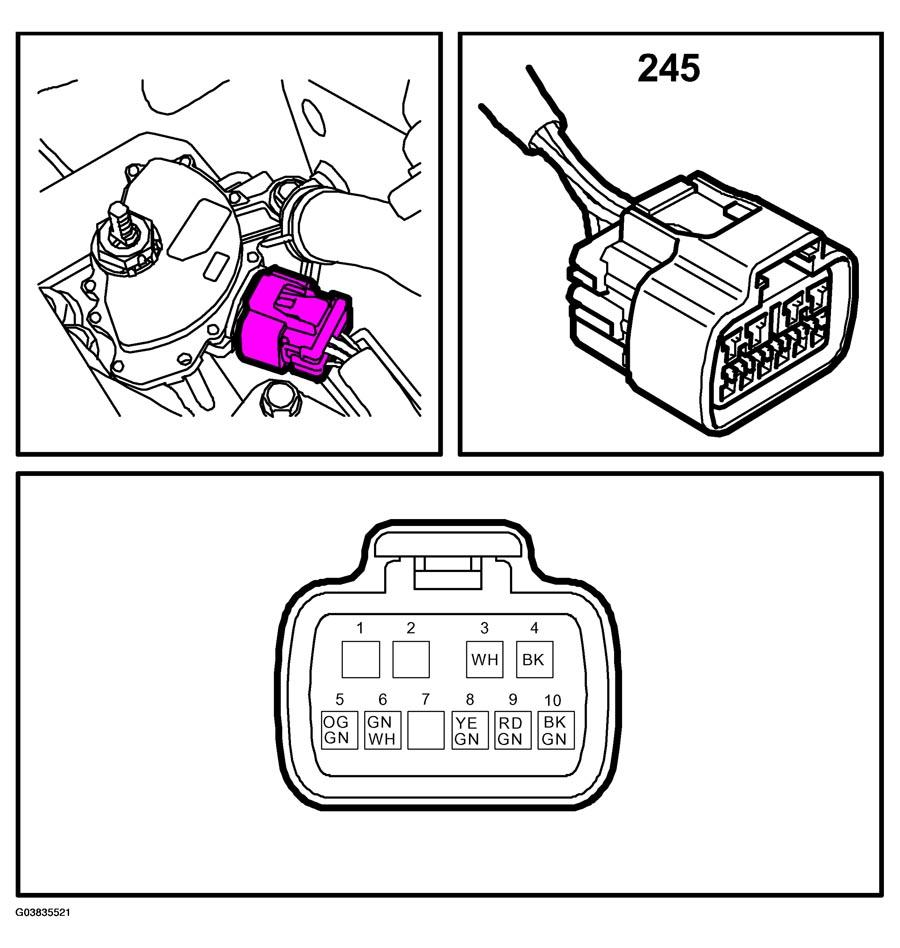

Fig 1: Identifying Transmission Range Switch Connector Location
G03835521Courtesy of SAAB-SCANIA OF AMERICA, INC.
