Preparation For The Inspection Mode
Make sure that the fuel remains approx. half amount [20-40 liters (5.3-10.6 US gal, 4.4-8.8 Imp gal)] and battery voltage is 12 V or more.

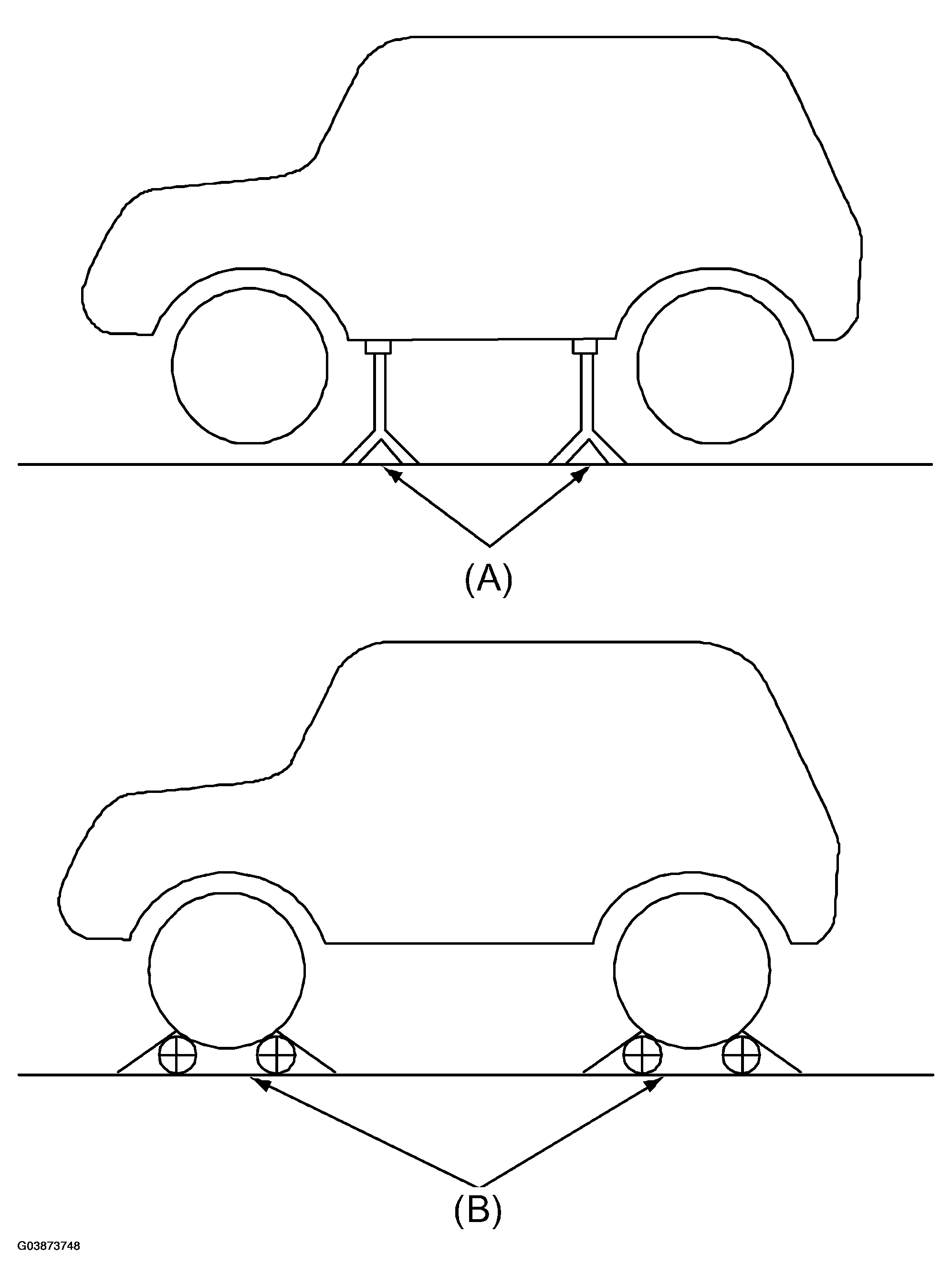

Raise vehicle using a garage jack and place on rigid racks or drive vehicle onto free rollers.
- Before raising the vehicle, ensure the parking brake is applied.
- Do not use a pantograph jack in place of a rigid rack.
- Secure a rope or wire to the front and rear towing or tie-down hooks to prevent the lateral runout of front wheels.
- Do not abruptly depress/release the clutch pedal or accelerator pedal during works even when engine is operating at low speeds since this may cause vehicle to jump off free rollers.
- In order to prevent the vehicle from slipping due to vibration, do not place any wooden blocks or similar items between the rigid racks and the vehicle.
- Since the rear wheels will also rotate, do not place anything near them. Also, make sure that nobody goes in front of the vehicle.
- Rigid rack
- Free rollers
Vehicle Diagnostic Interface
Warm up the engine.
Prepare the Vehicle Diagnostic Interface kit.
Connect the diagnosis cable to Vehicle Diagnostic Interface.

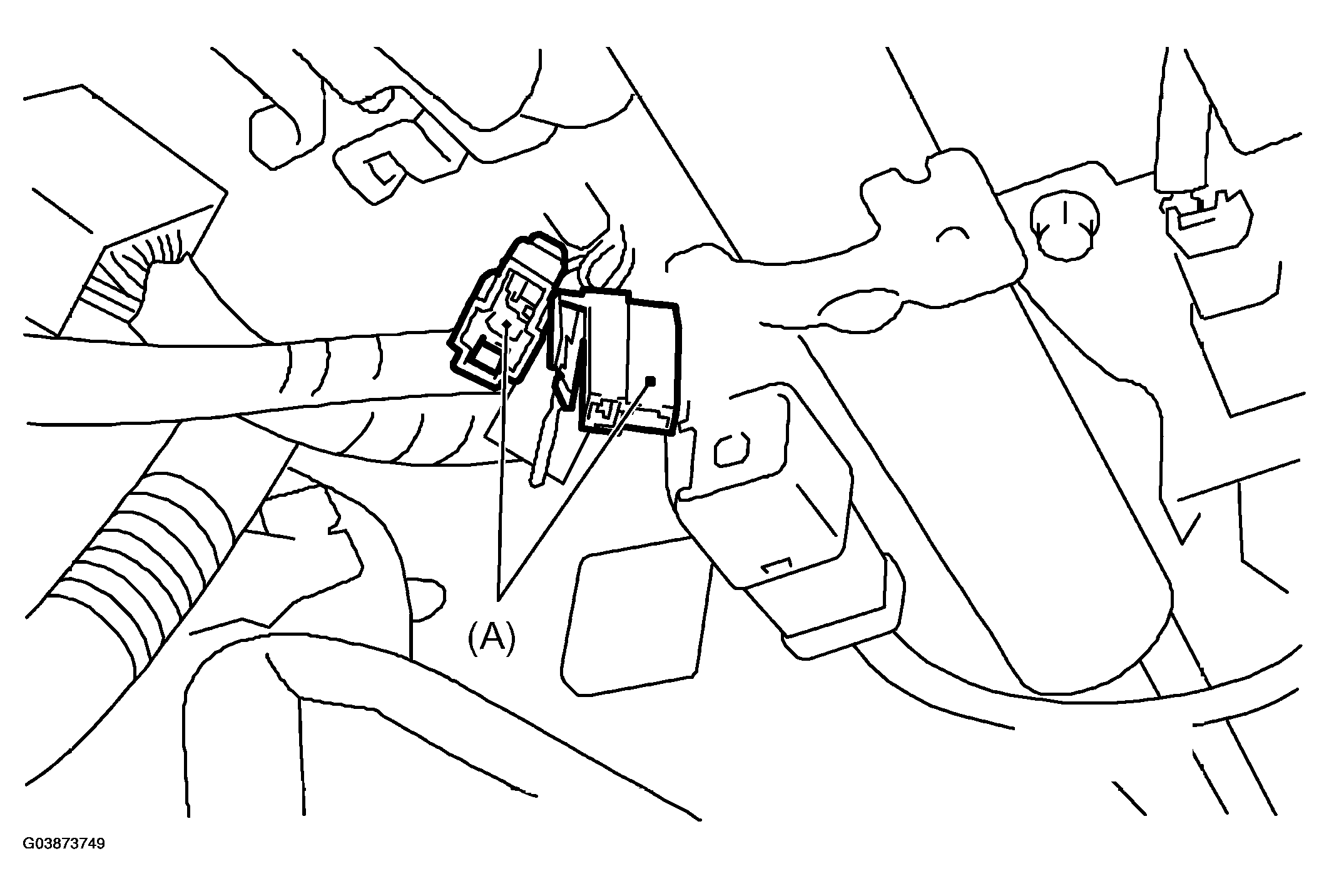

Connect the test mode connector (A) at the lower portion of instrument panel (on the driver's side).
- Test mode connector

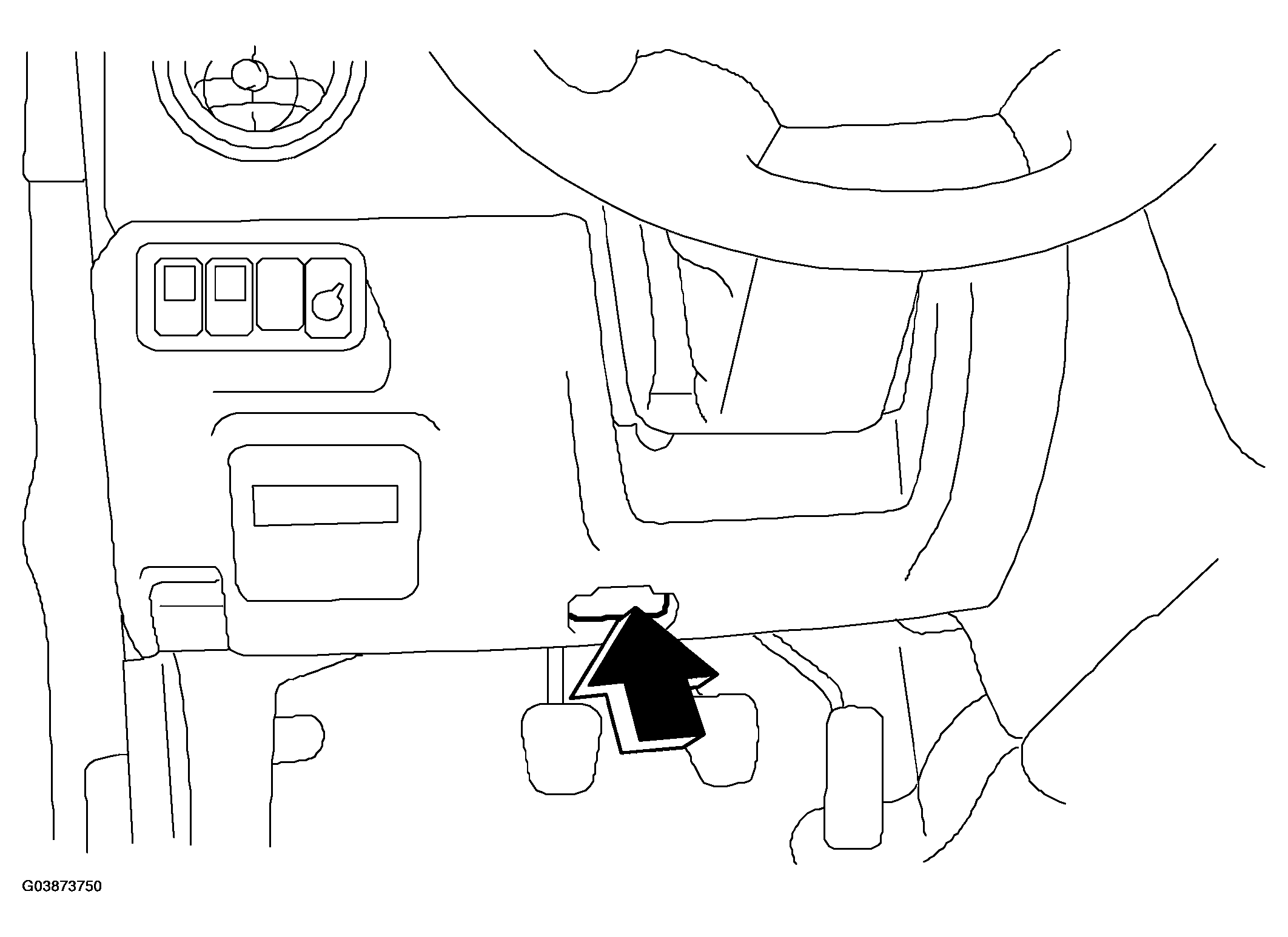

Connect the Vehicle Diagnostic Interface to data link connector located in the lower portion of the instrument panel (on the driver's side).
Turn the ignition switch to ON (engine OFF), and start the Vehicle Diagnostic Interface.
On the << Main Menu >> display screen, select the {2. Each System Check}.
On the << System Selection Menu >> display screen, select the {Engine Control System}.
Select the {OK} after the information of engine type is displayed.
On the << Engine Diagnosis >> display screen, select the {Dealer Check Mode Procedure}.
After the "Perform Inspection (Dealer Check) Mode?" is shown on the display screen, select the {OK}.
Perform subsequent procedures as instructed on the display screen.
- If trouble still remains in the memory, the corresponding DTC appears on the display screen.NOTE:
- For detailed operation procedure, refer to the VEHICLE DIAGNOSTIC INTERFACE OPERATION MANUAL.
- For detailed concerning the DTC, refer to the LIST OF DIAGNOSTIC TROUBLE CODE (DTC) .
- Release the parking brake.
- The speed difference between front and rear wheels may light either the ABS warning light, but this indicates no malfunctions. When the engine control diagnosis is finished, perform the ABS memory clearance procedure of self-diagnosis system.
