Steering wheel controls: Notes

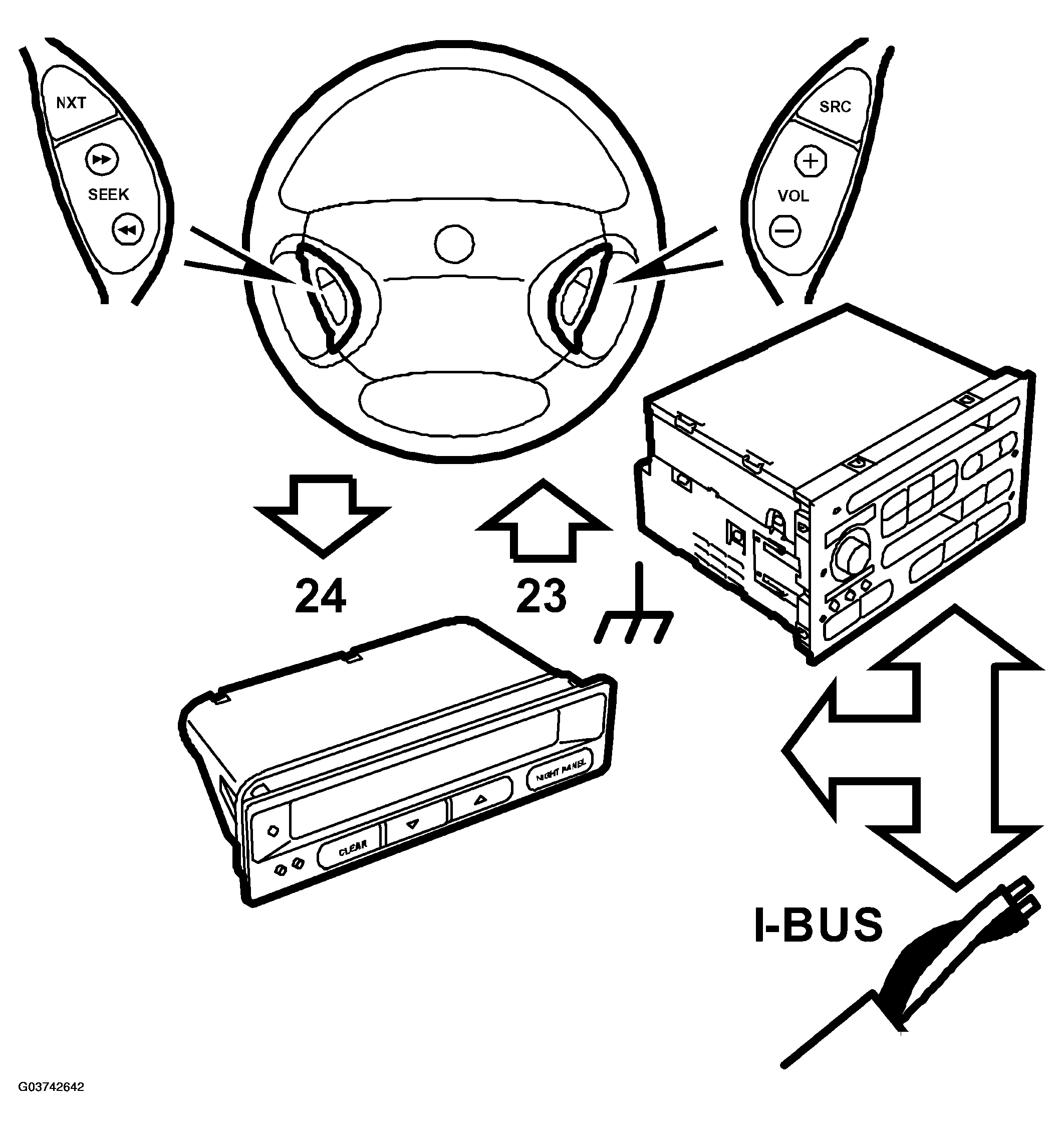

Fig 1: Identifying Communication Diagram Of Steering Wheel Controls
G03742642Courtesy of SAAB-SCANIA OF AMERICA, INC.

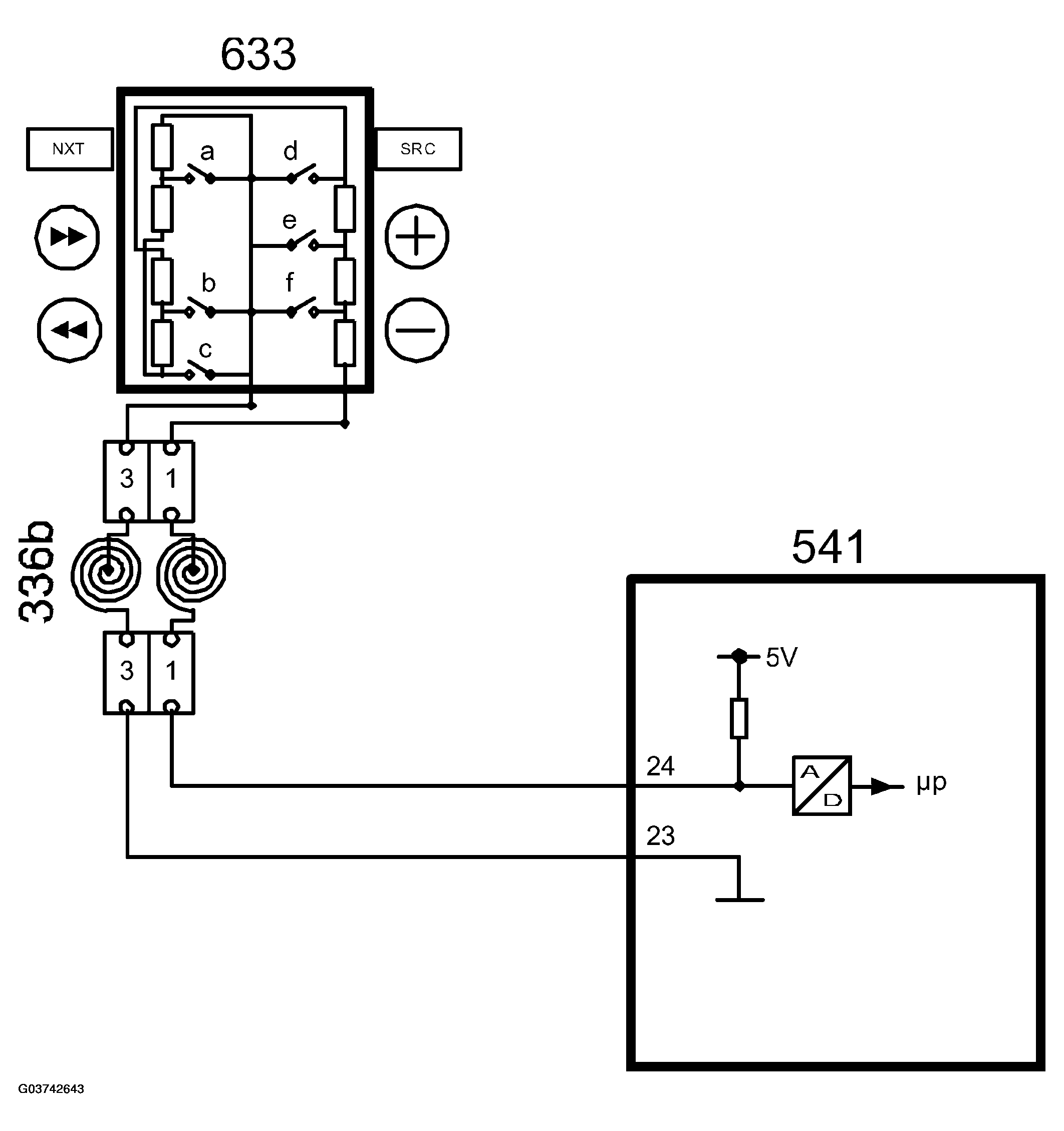

Fig 2: Circuit Diagram - Steering Wheel Controls
G03742643Courtesy of SAAB-SCANIA OF AMERICA, INC.
