Pre-heated oxygen-sensor, front (592): T8: Location:

component:  before the catalytic converter

connector:  blue connector on the console between the power steering pump and the vacuum pump

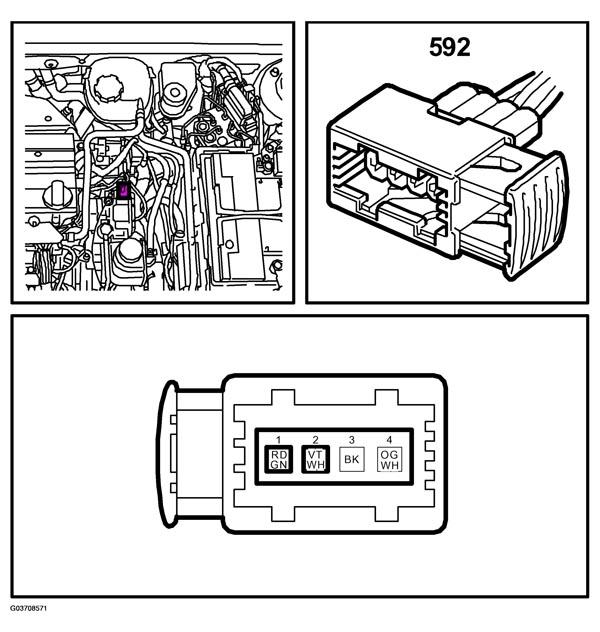

Fig 1: Identifying Pre-Heated Oxygen-Sensor Front (592) (T8)
G03708571Courtesy of SAAB-SCANIA OF AMERICA, INC.
