Fuse 4, electrical center engine bay 342: PSG16

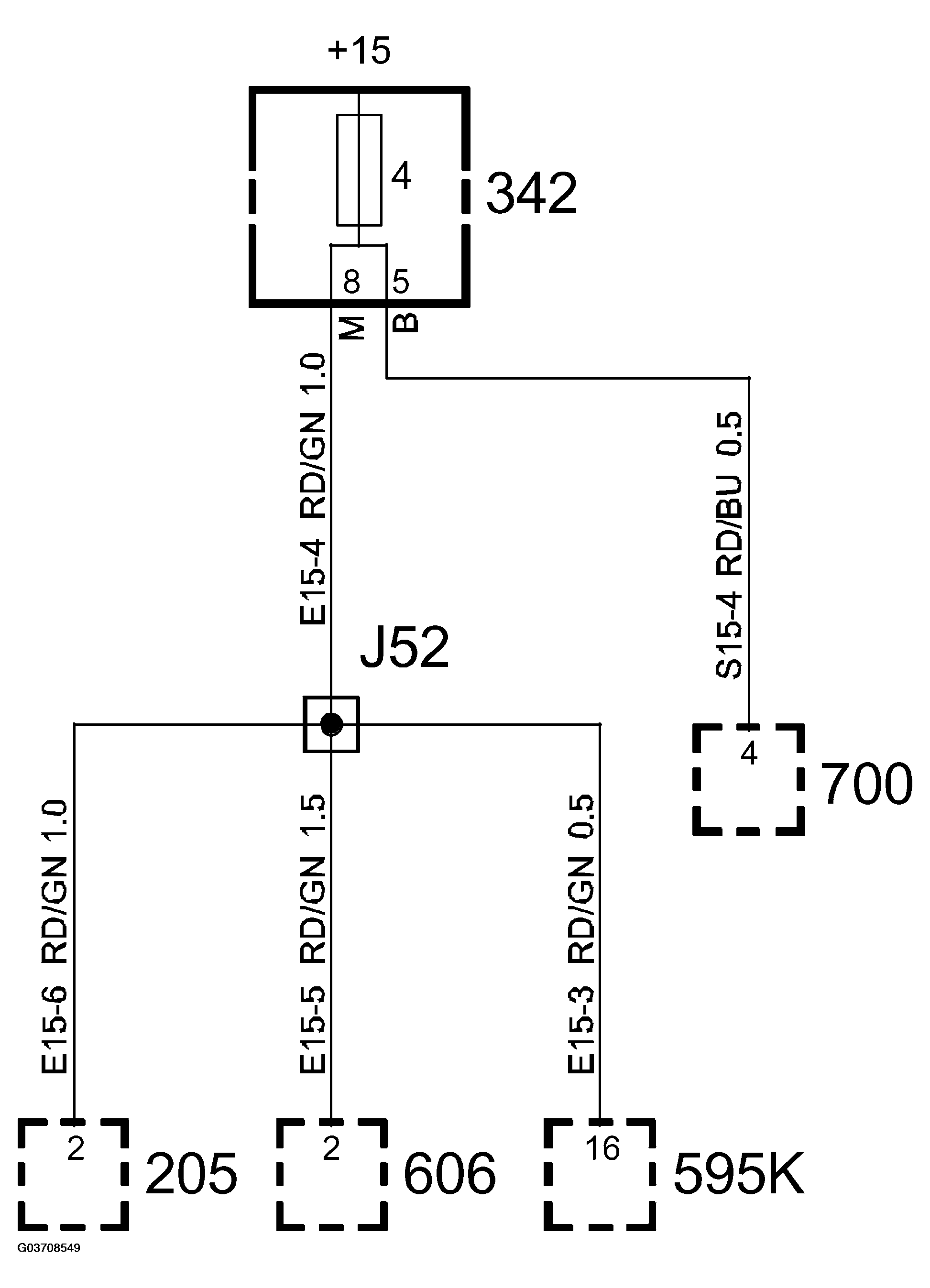

Fig 1: Fuse 4 Electrical Centre Engine Bay 342 (PSG16) Circuit Diagram

G03708549

Courtesy of SAAB-SCANIA OF AMERICA, INC.
