Starter motor for 4-cylinder diesel engine: Notes

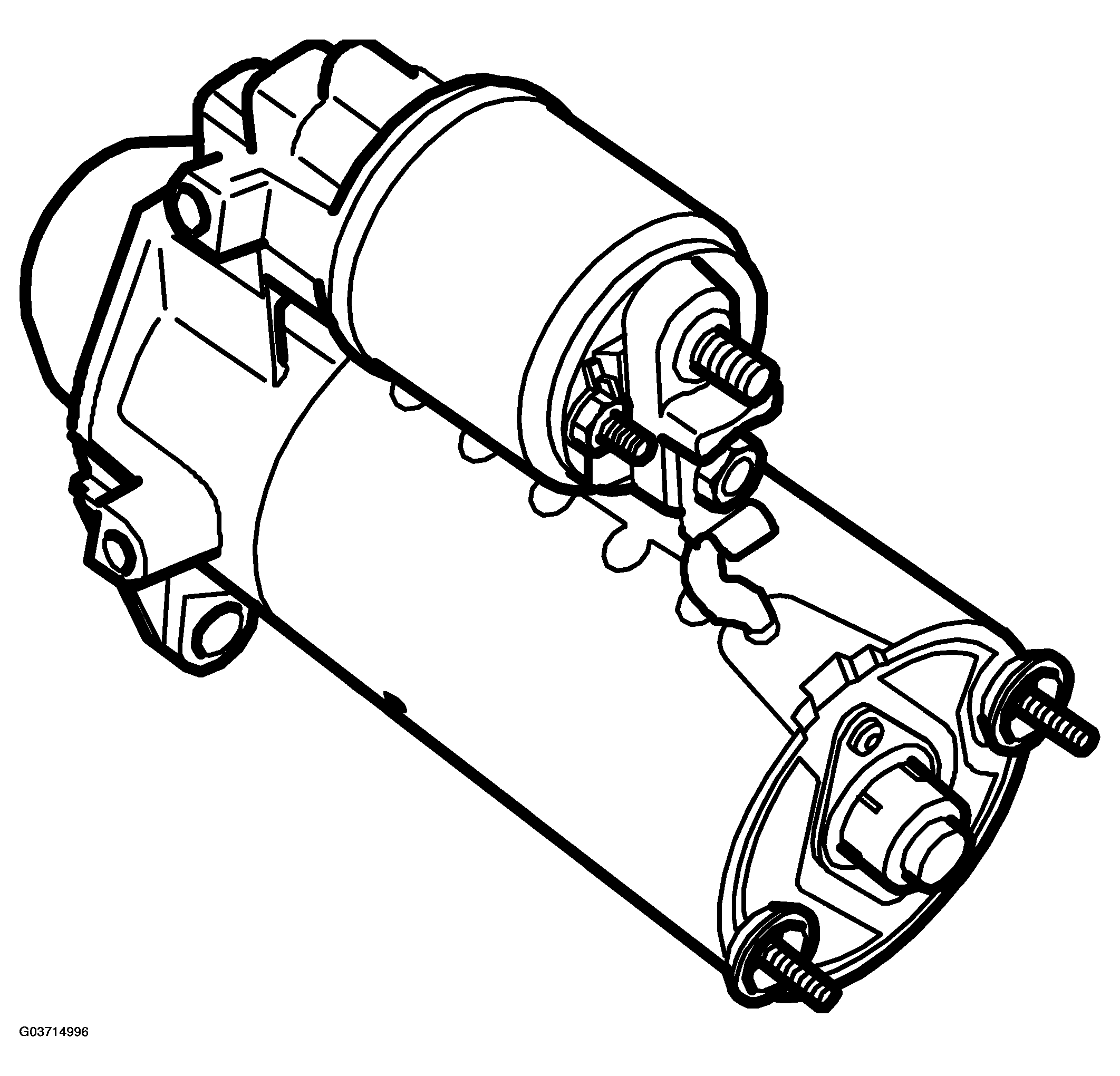

Courtesy of SAAB-SCANIA OF AMERICA, INC. STARTER MOTOR DESCRIPTION (4-CYLINDER DIESEL ENGINE)
| Type designation |
Bosch DW 12V 0 001 109 015 |
| Power |
2.0 kW |
| No. of teeth on starter motor pinion |
10 |
| Number of teeth on ring gear |
135 |
| Ratio engine/starter motor |
13.5:1 |
