To fit

  1. Fit the relay unit to the fan cowling and fit the screw.

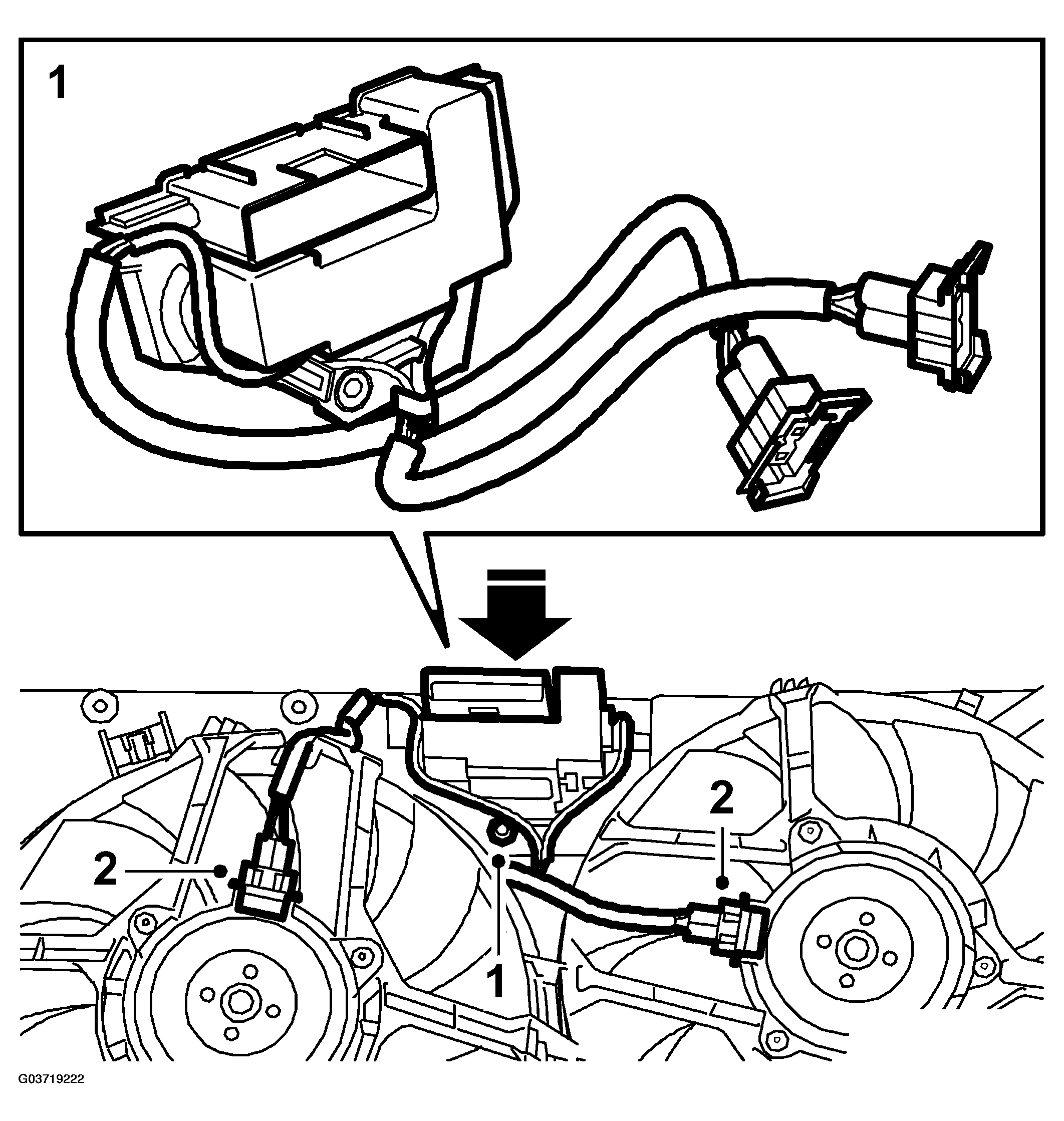

    Fig 1: Illustration For Step 2
    G03719222Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Secure the wiring in its retainers in the fan cowling and plug in the connectors.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  3. Plug in the relay unit connector.

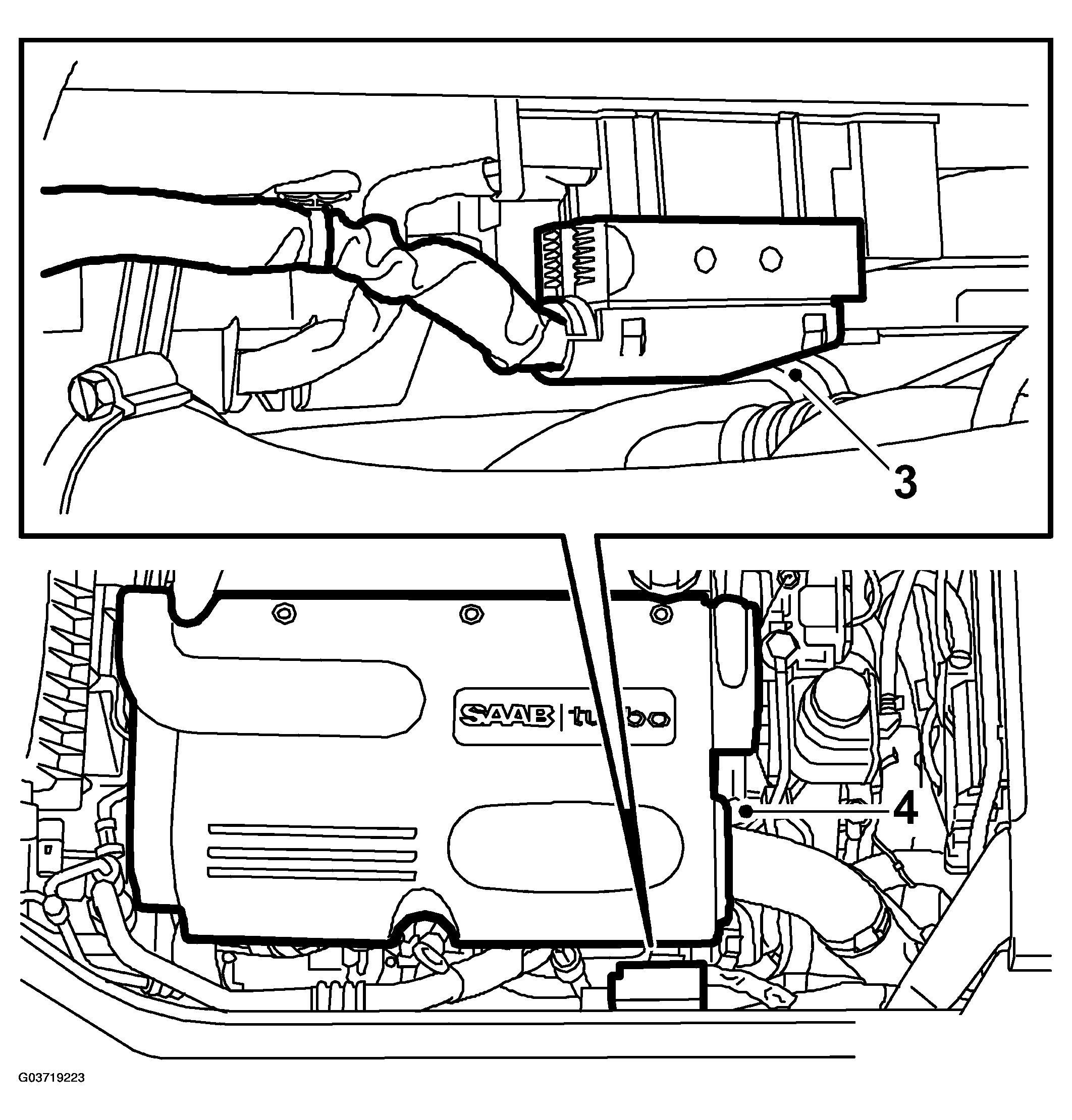

    Fig 2: Illustration For Step 3
    G03719223Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the upper engine cover.
