Home >> Saab >> 2004 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Body & Frame >> Seats >> Component Location >> Fuse 28, boot electrical center 701 >> Notes

Fuse 28, boot electrical center 701: Notes

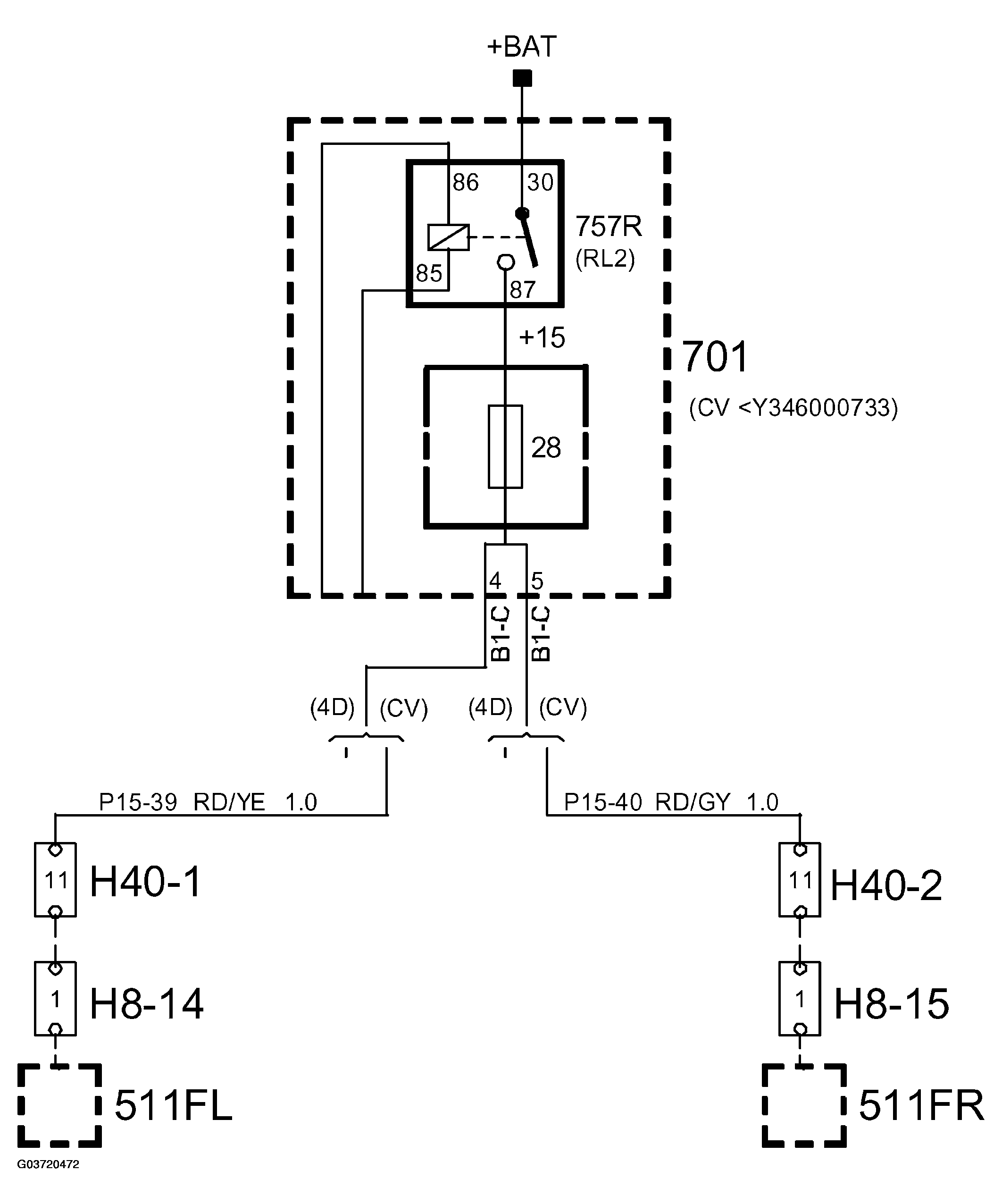

Fig 1: Identifying Boot Electrical Center 701 (Fuse 28)

G03720472

Courtesy of SAAB-SCANIA OF AMERICA, INC.
