Fuse 25, boot electrical center 701: Notes

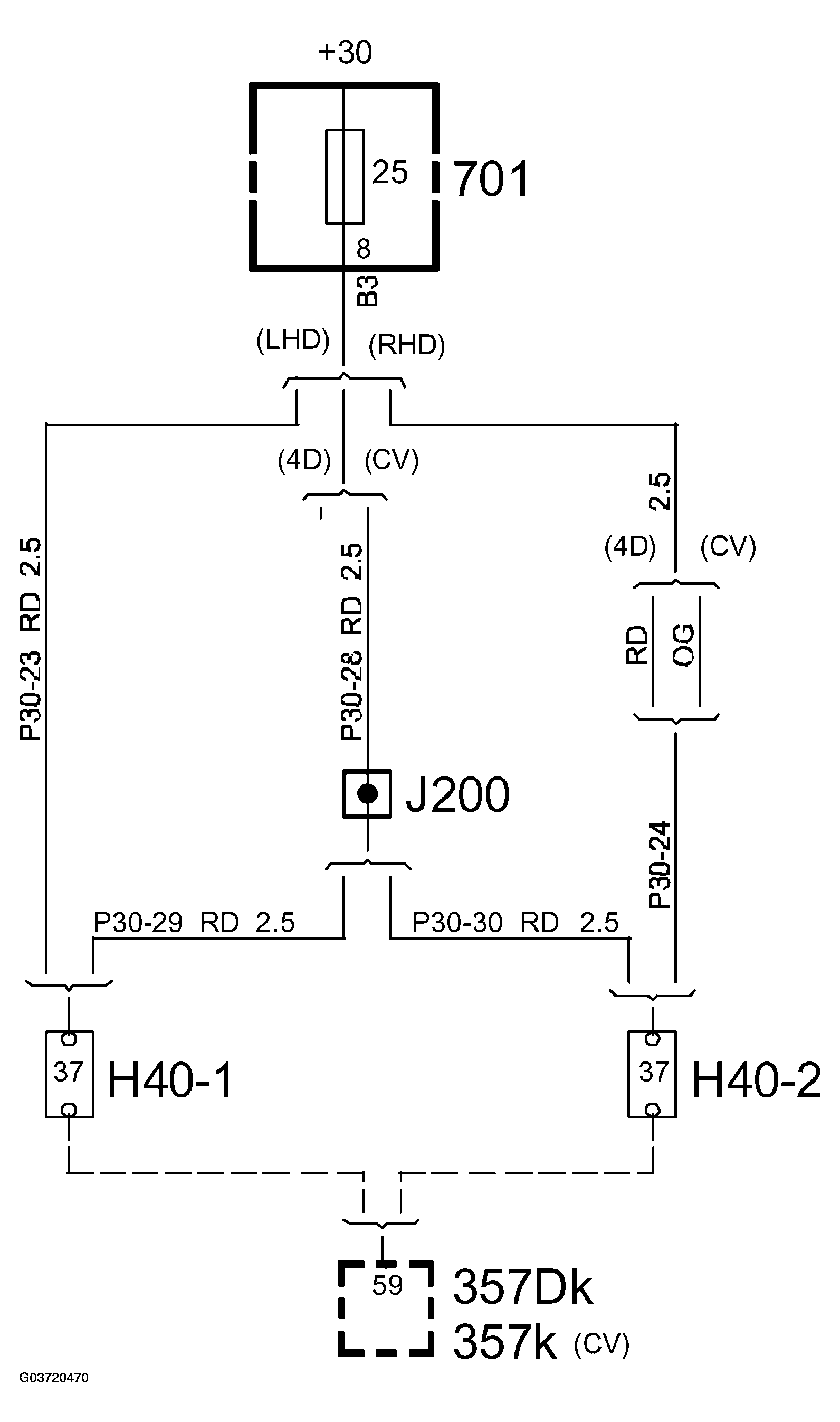

Fig 1: Identifying Boot Electrical Center 701 (Fuse 25)

G03720470

Courtesy of SAAB-SCANIA OF AMERICA, INC.
