Home >> Saab >> 2004 >> 9-3 Linear, Automatic >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Component Location >> Throttle body actuator (604) >> Simtec

Throttle body actuator (604): Simtec

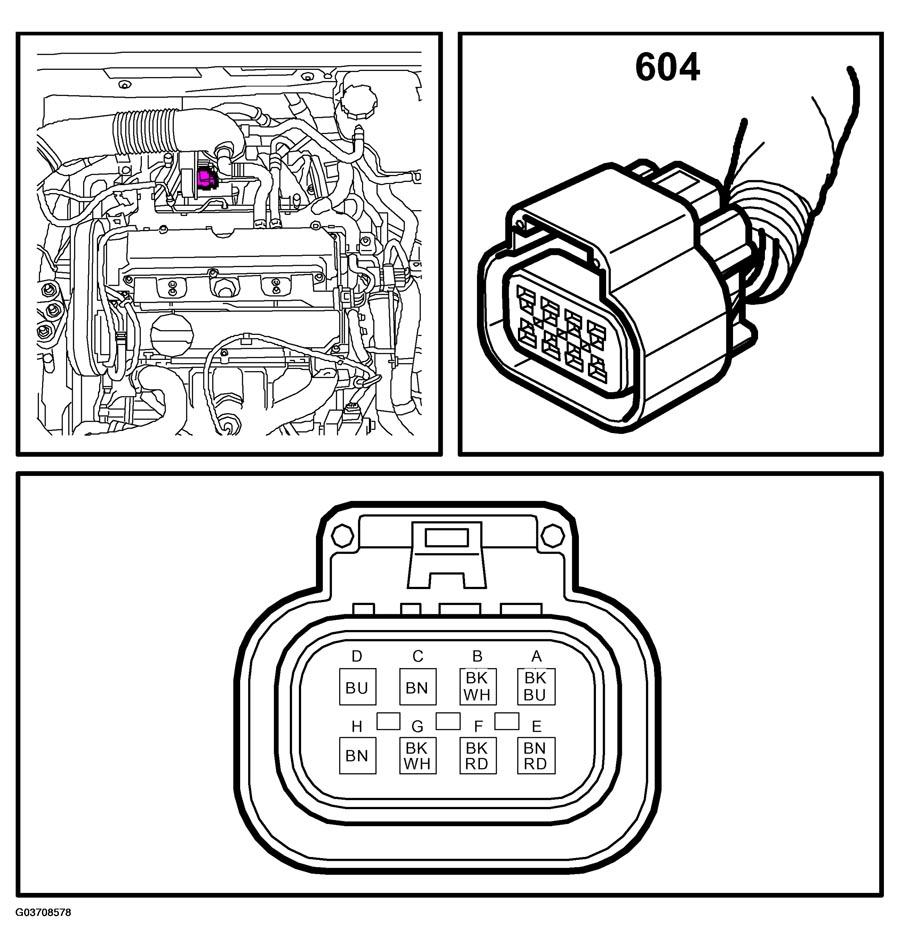

Fig 1: Identifying Throttle Body Actuator (604)(Simtec)

G03708578

Courtesy of SAAB-SCANIA OF AMERICA, INC.
