Injectors (206), T8

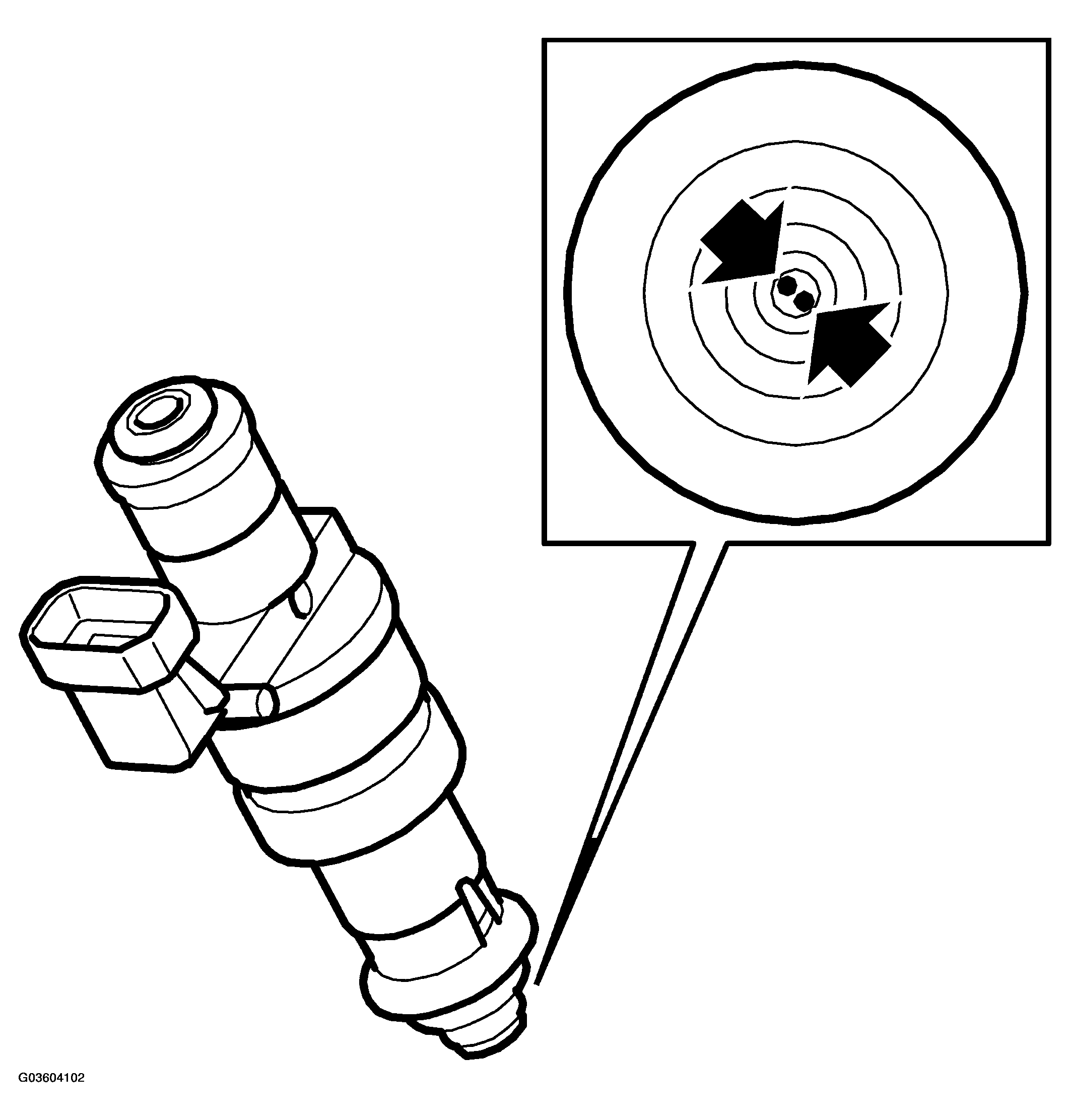

Fig 1: Identifying Injectors (206), T8

Courtesy of SAAB-SCANIA OF AMERICA, INC.

INJECTORS TECHNICAL DATA

Engine type		B207E, B207L	B207R
Type		Siemens, color blue	Siemens, color green
Style		2 hole	2 hole
Resistance	Ohm	12	12
Flow capacity	ml/ 30 s	134 +/-5	176 +/-7
Maximum permitted difference between injectors	ml/ 30 s	10	14
