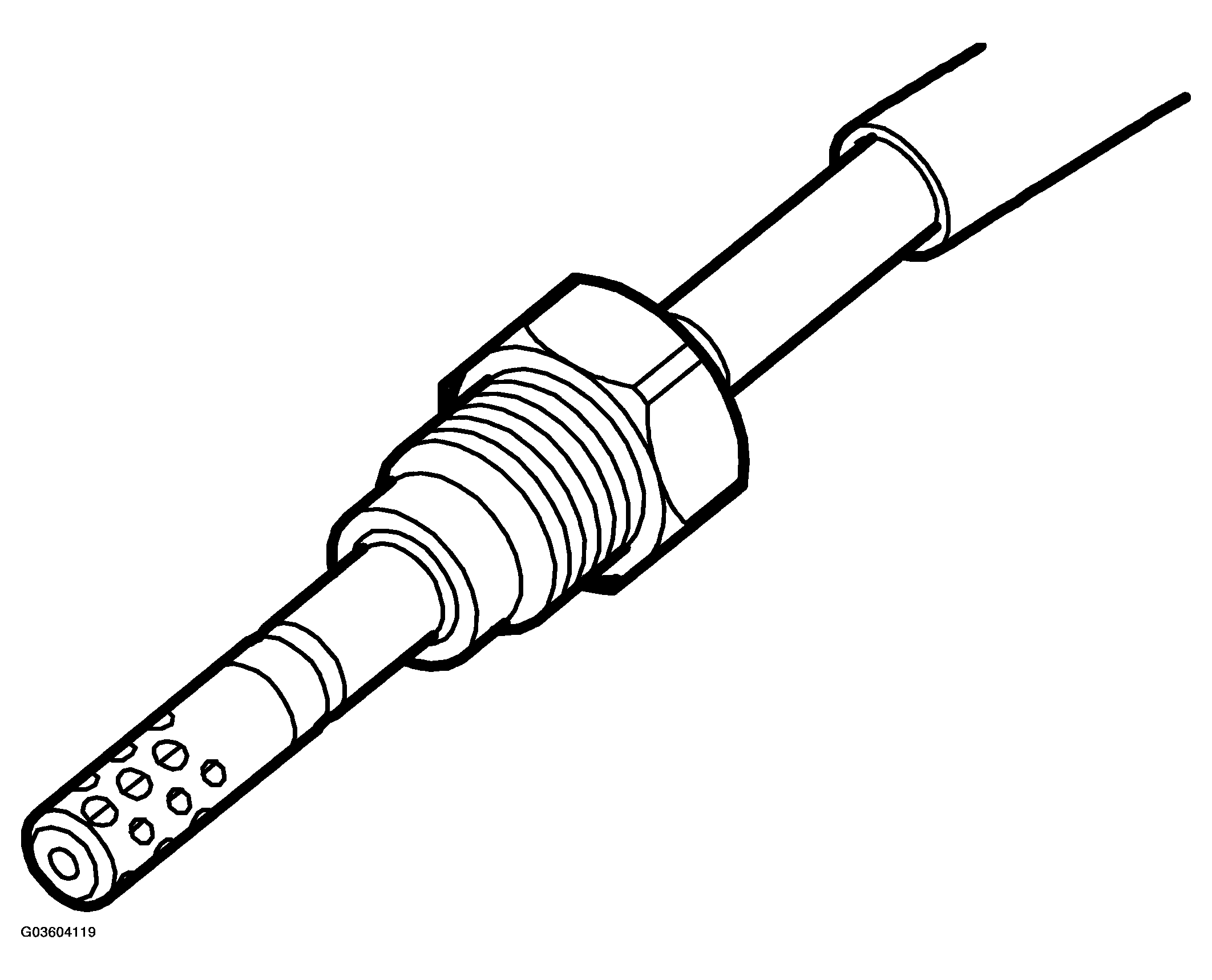

Exhaust temperature sensor (602)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

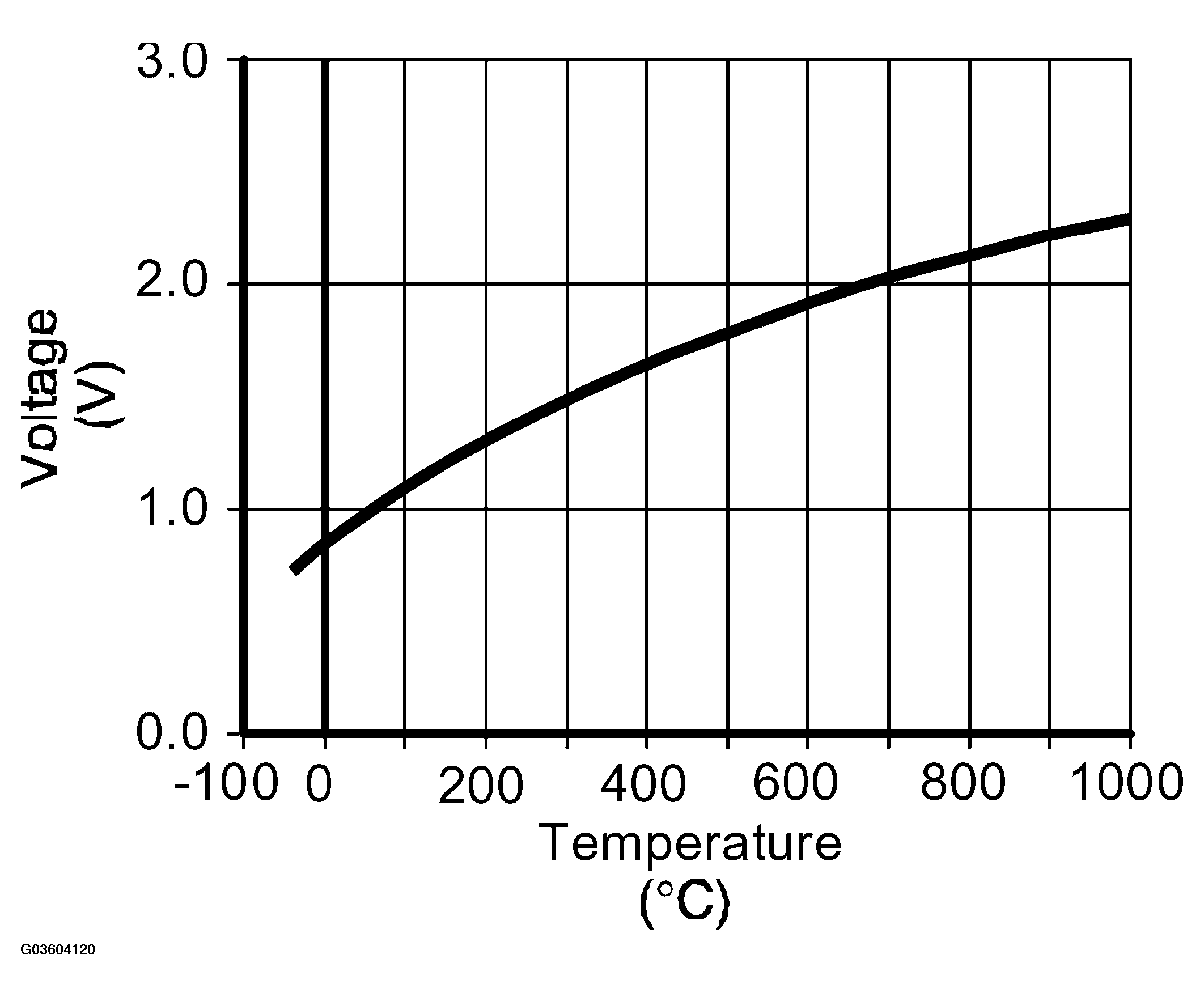

Courtesy of SAAB-SCANIA OF AMERICA, INC. EXHAUST TEMPERATURE SENSOR TECHNICAL DATA
| °C (°F) |
Ohm |
V |
| -40,0 |
169,7 |
0,725 |
| 0 |
200,5 |
0,836 |
| 25 |
219,6 |
0,900 |
| 50 |
238,5 |
0,963 |
| 100 |
275,9 |
1,081 |
| 200 |
349,0 |
1,295 |
| 300 |
419,7 |
1,478 |
| 400 |
488,1 |
1,640 |
| 500 |
554,1 |
1,782 |
| 600 |
617,8 |
1,909 |
| 700 |
679,2 |
2,022 |
| 800 |
738,2 |
2,124 |
| 900 |
794,9 |
2,214 |
| 1000 |
849,3 |
2,296 |
