Connected components

CONNECTED COMPONENTS

Via Crimp connection J108, main wiring harness
102	Relay, fuel pump
323	Motor, fuel pump
323a	Motor, fuel pump, supplementary heater
702FR	Control module, RH front door
702RR	Control module, rear door, RH
Via Crimp J135, door wiring harness, inner which is in contact with crimp J108 from Rev.5 inclusive
209F	Lamp, front right door courtesy lighting
388	Switch, boot lid (RHD)
514FR	Switch, simultaneous central locking, front right door

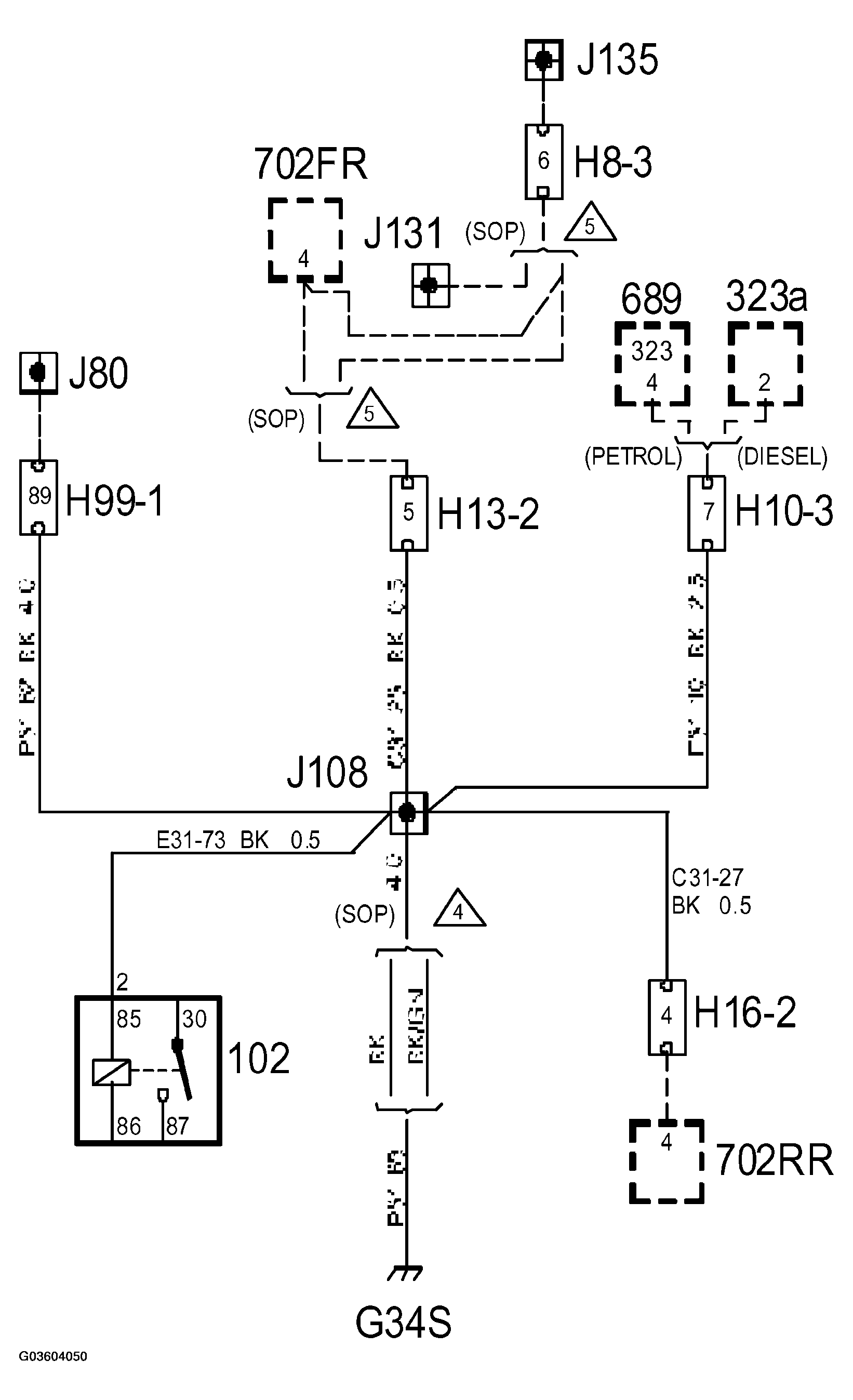

Fig 1: Identifying Grounding Point G34S Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Crimp J108

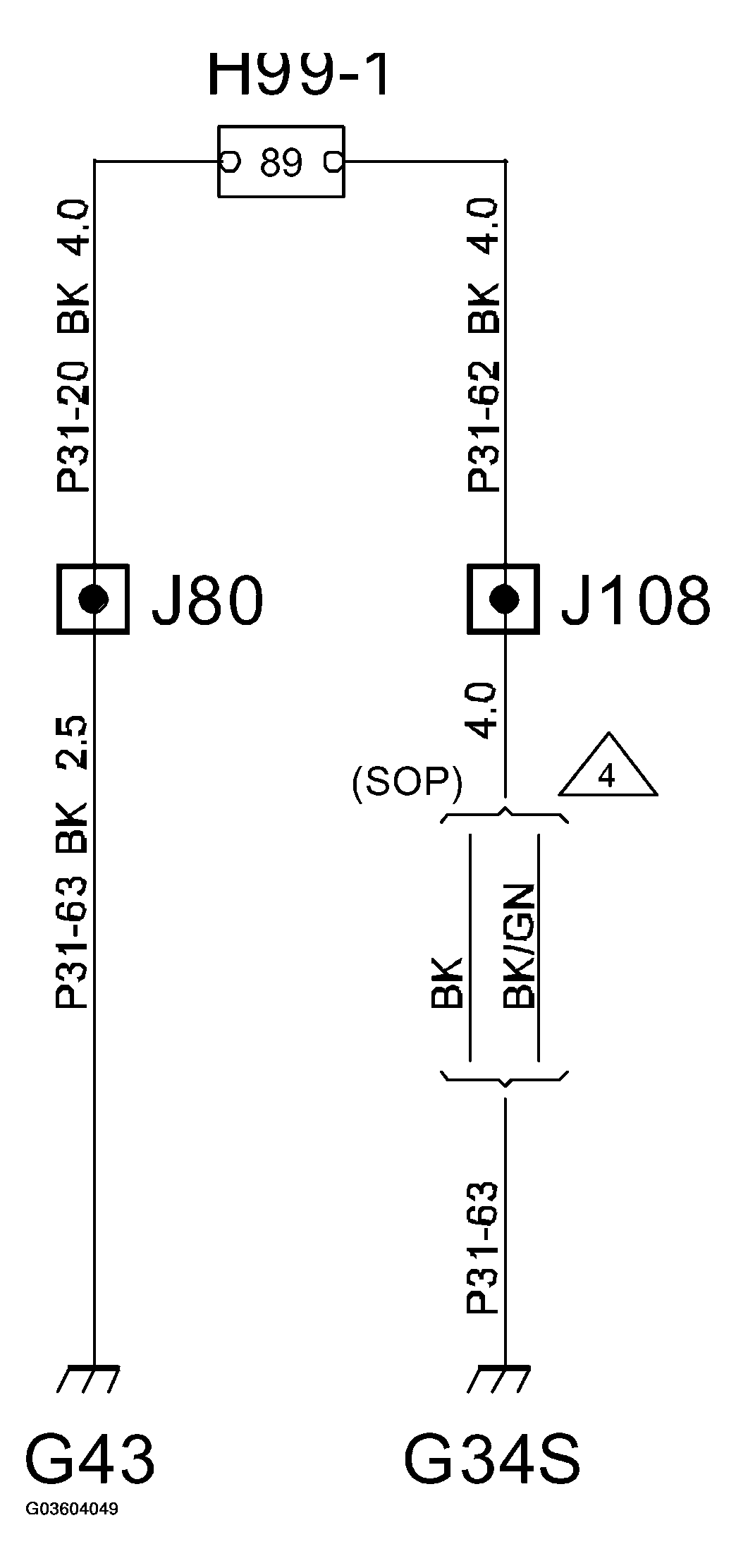

Fig 2: Identifying Crimp J108 Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
