Front heated oxygen sensor (592)

Location  :

component  : before the catalytic converter

connector  : black connector on the console between the power steering pump and the vacuum pump

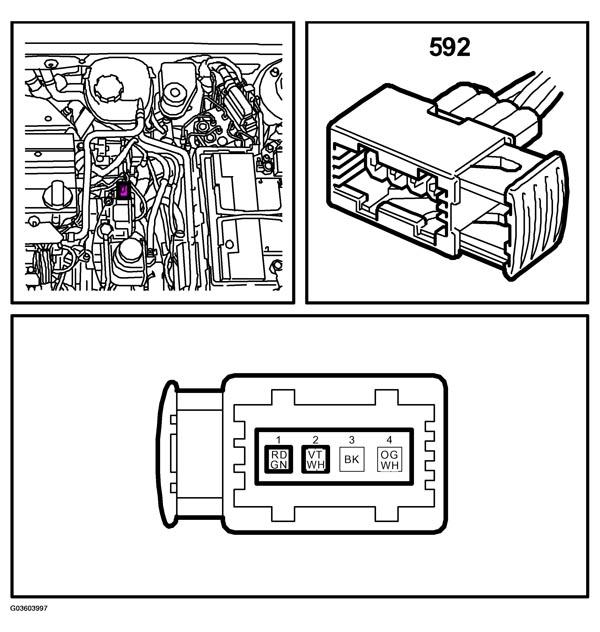

Fig 1: Locating & Identifying Front Heated Oxygen Sensor (592)
G03603997Courtesy of SAAB-SCANIA OF AMERICA, INC.
