Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T8 Fuel Control System (Late; 9440) >> Component Location >> Crimp connection J44, petrol engine harness >> Notes

Crimp connection J44, petrol engine harness: Notes

Location  : Approximately 190 mm from crankshaft position sensor branching point towards the engine control module

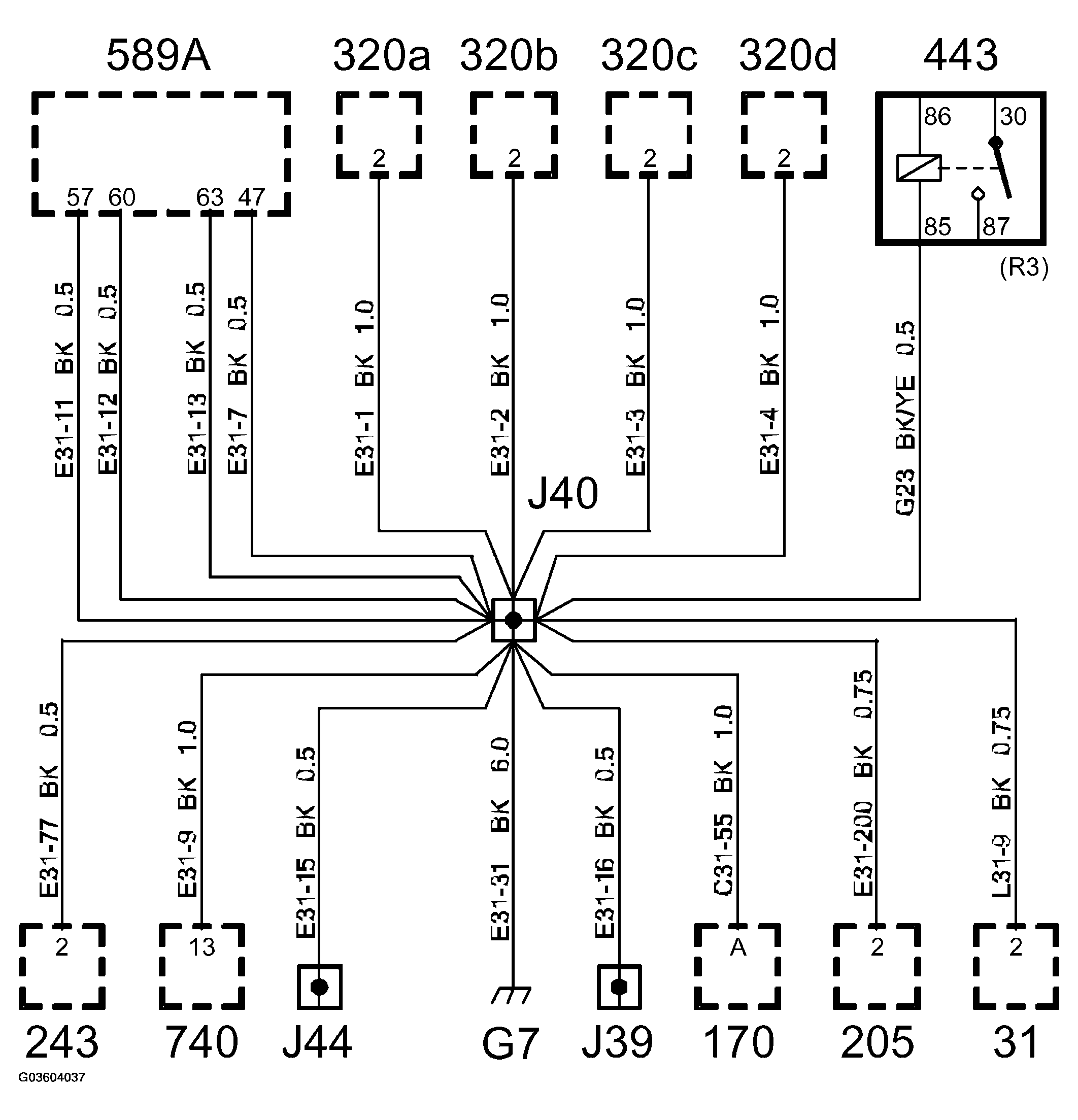

Fig 1: Identifying Crimp Connection J44 And Petrol Engine Harness Wiring Diagram
G03604037Courtesy of SAAB-SCANIA OF AMERICA, INC.
