Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T8 Fuel Control System (Late; 9440) >> Component Location >> Crimp J42, petrol engine harness >> Notes

Crimp J42, petrol engine harness: Notes

Location  : In the branching point to the power steering fluid pressure switch

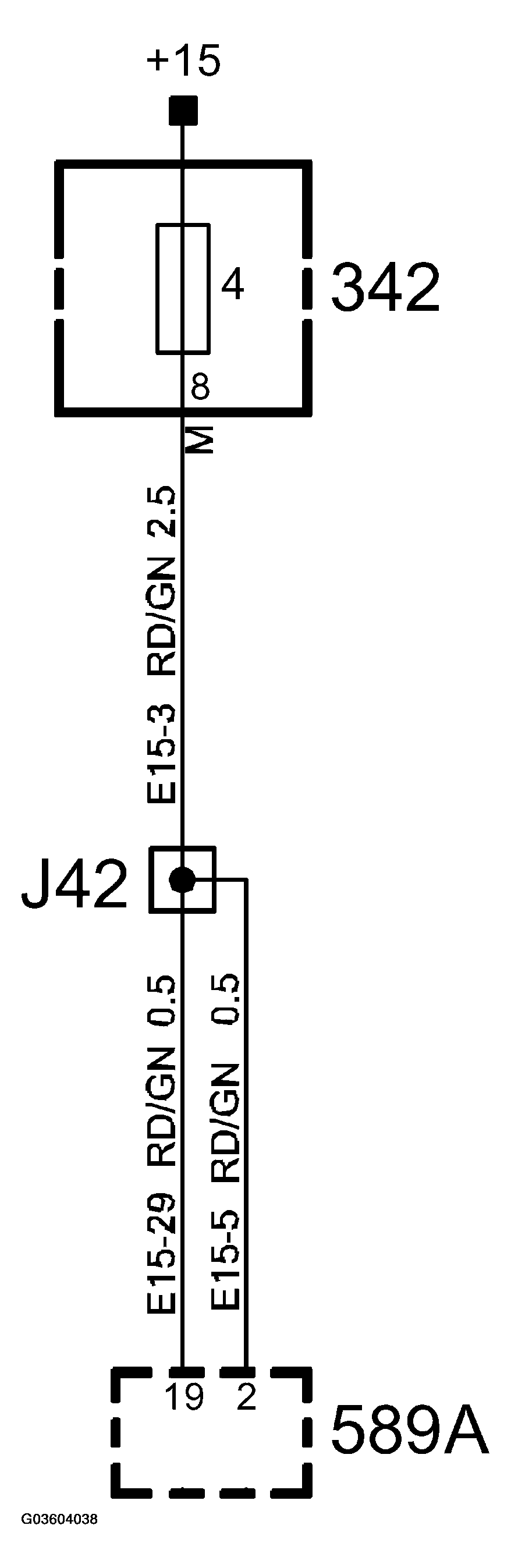

Fig 1: Identifying Crimp J42 And Petrol Engine Harness Wiring Diagram
G03604038Courtesy of SAAB-SCANIA OF AMERICA, INC.
