Crimp J37, petrol engine harness: Notes

Location  : Approx. 260 mm from branching of crankshaft sensor towards the engine control module

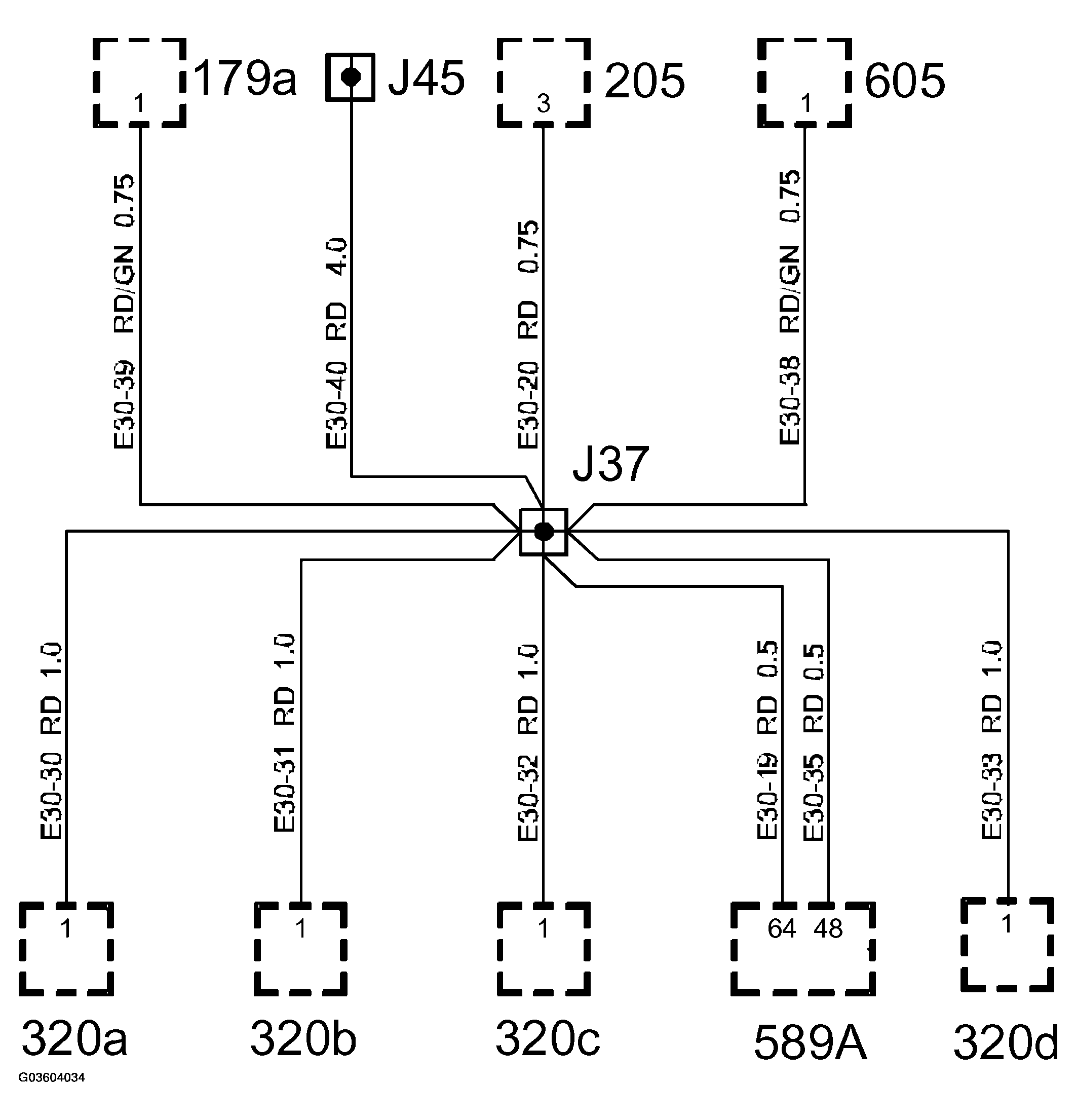

Fig 1: Identifying Crimp J37 And Petrol Engine Harness Wiring Diagram
G03604034Courtesy of SAAB-SCANIA OF AMERICA, INC.
