Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Engine Performance >> System >> TRIONIC T8 Fuel Control System (Late; 9440) >> Component Location >> Crimp J31, petrol engine harness >> Notes

Crimp J31, petrol engine harness: Notes

Location  : Approx. 20 mm from branching of engine control module switch B towards its switch A

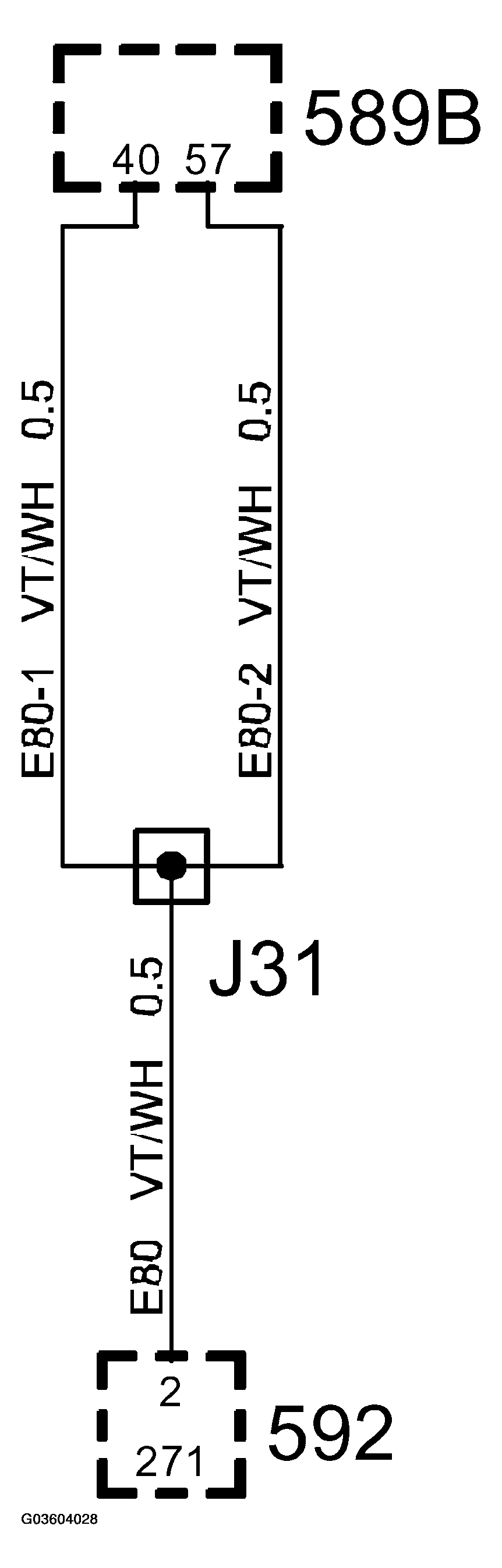

Fig 1: Identifying Crimp J31 And Petrol Engine Harness Wiring Diagram
G03604028Courtesy of SAAB-SCANIA OF AMERICA, INC.
