Crimp J26, petrol engine harness: Notes

Location  : Approx. 210 mm from branching of connector H42-2 towards the engine control module

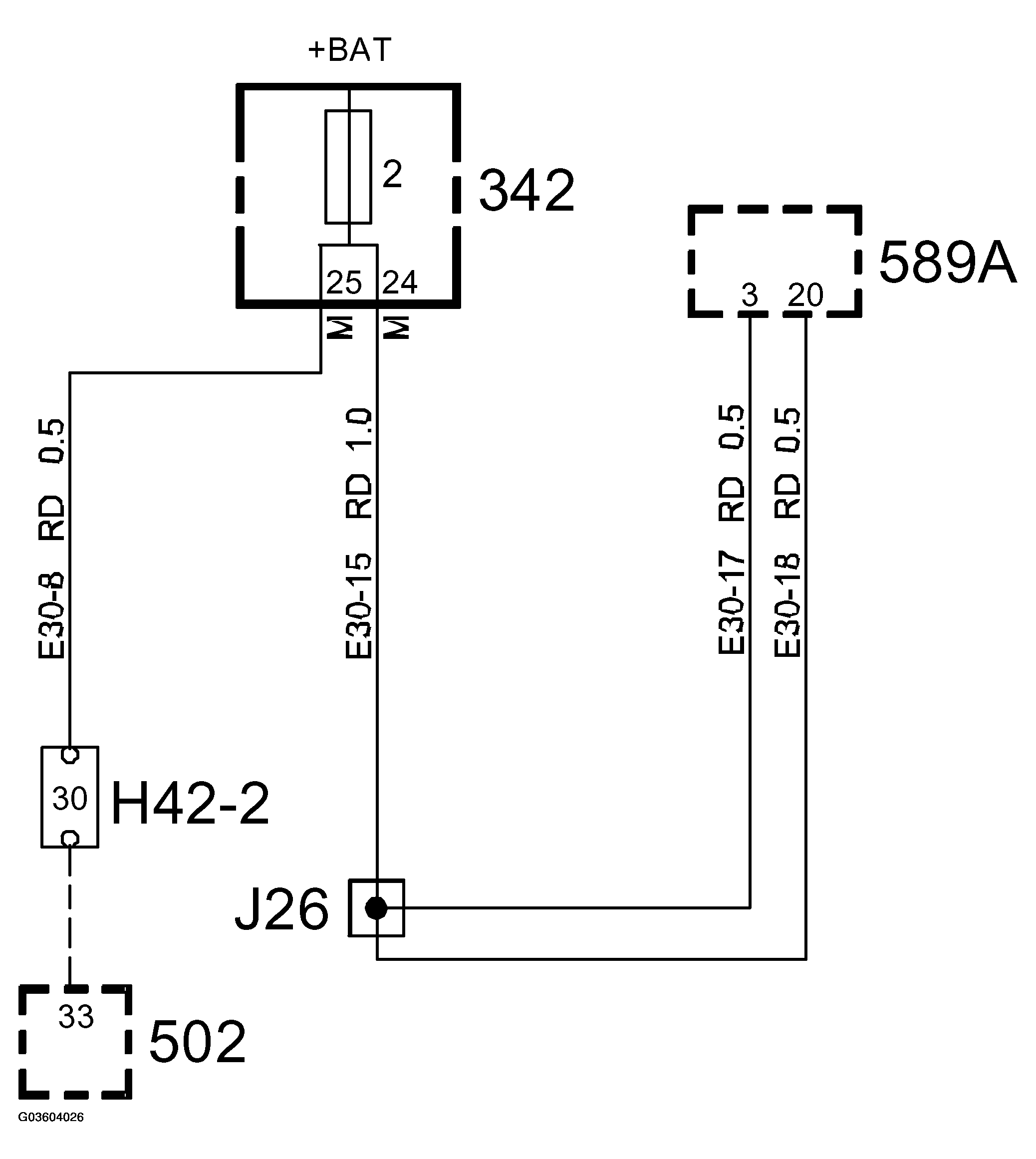

Fig 1: Identifying Crimp J26 And Petrol Engine Harness Wiring Diagram
G03604026Courtesy of SAAB-SCANIA OF AMERICA, INC.
