Connector H102-1

Location  : Under the LH A-pillar

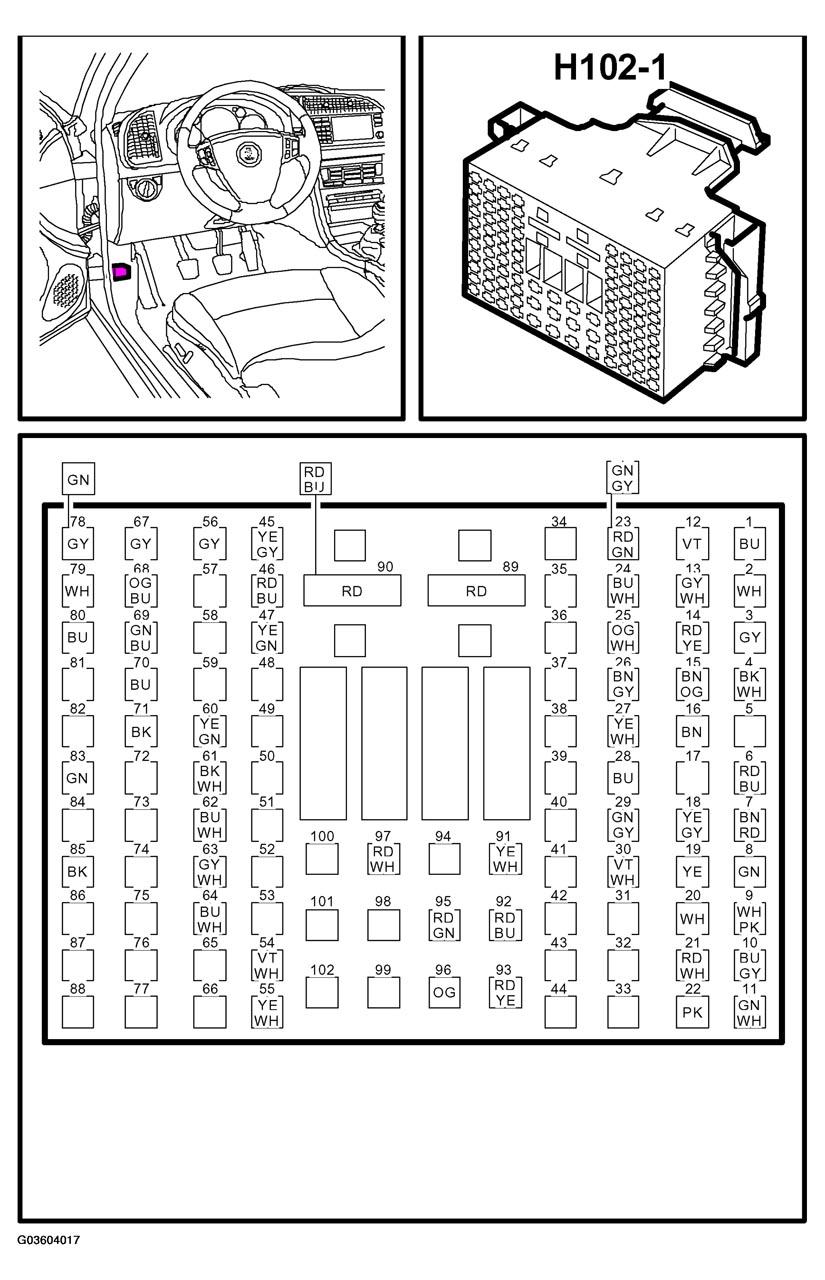

Fig 1: Locating & Identifying Connector H102-1
G03604017Courtesy of SAAB-SCANIA OF AMERICA, INC.
