To remove

  1. Unplug the oxygen sensor and carefully lower the cable.

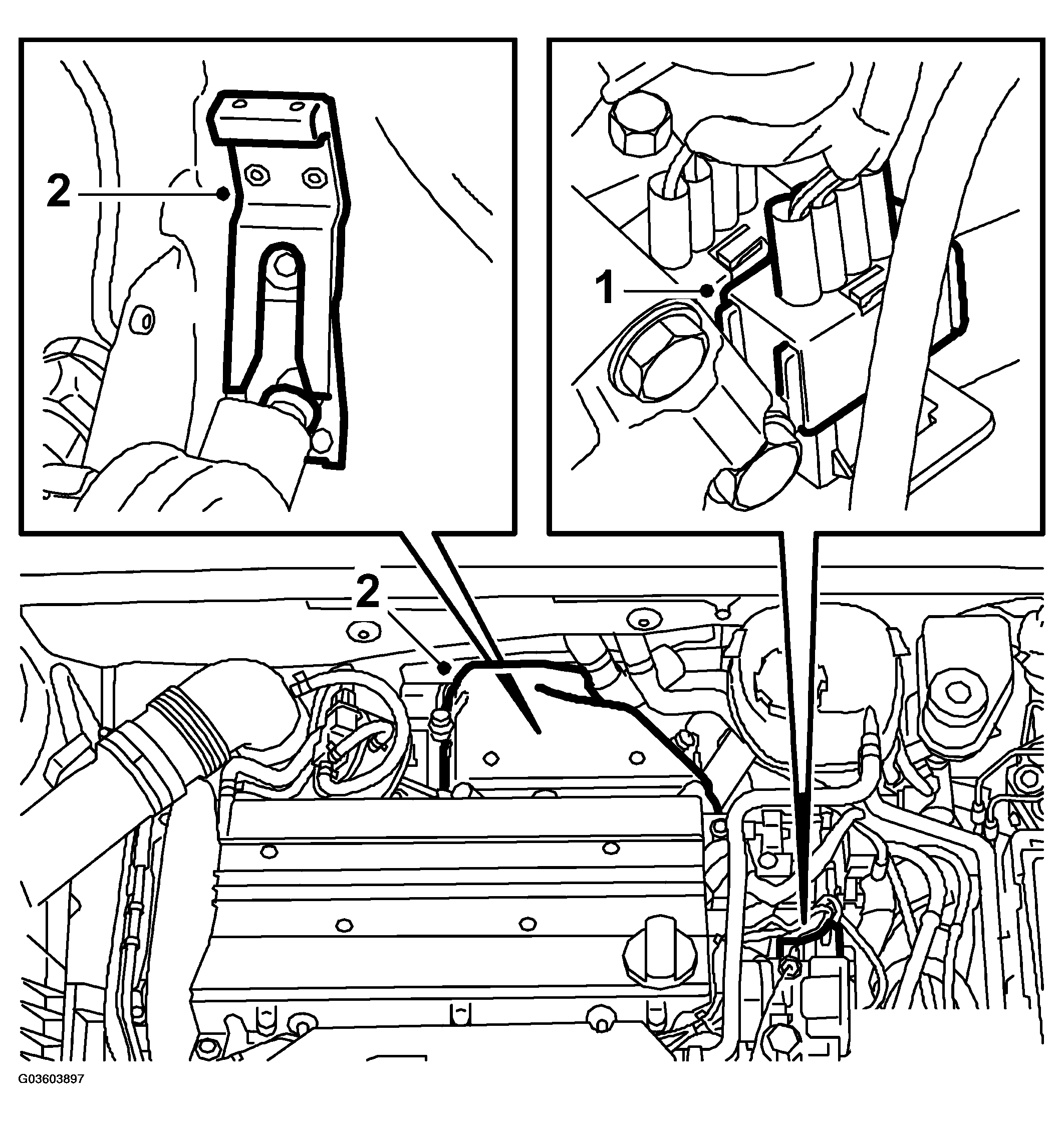

    Fig 1: Illustration For Steps 1-2
    G03603897Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the heat shield over the turbocharger (note the clip underneath the heat shield).
  3. Remove the oxygen sensor.

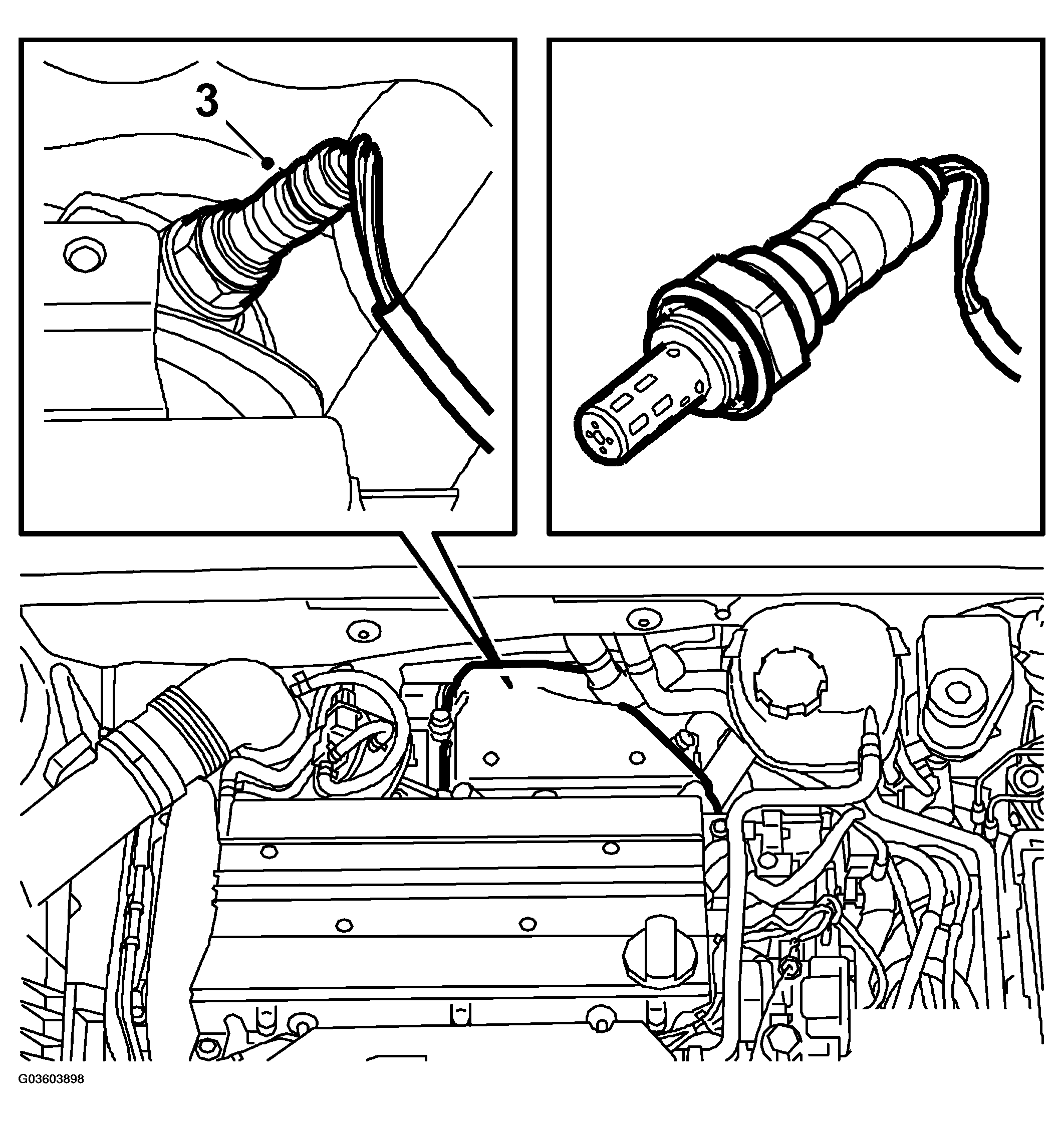

    Fig 2: Illustration For Step 3
    G03603898Courtesy of SAAB-SCANIA OF AMERICA, INC.
