To remove

  1. Unplug the connector to CDM.

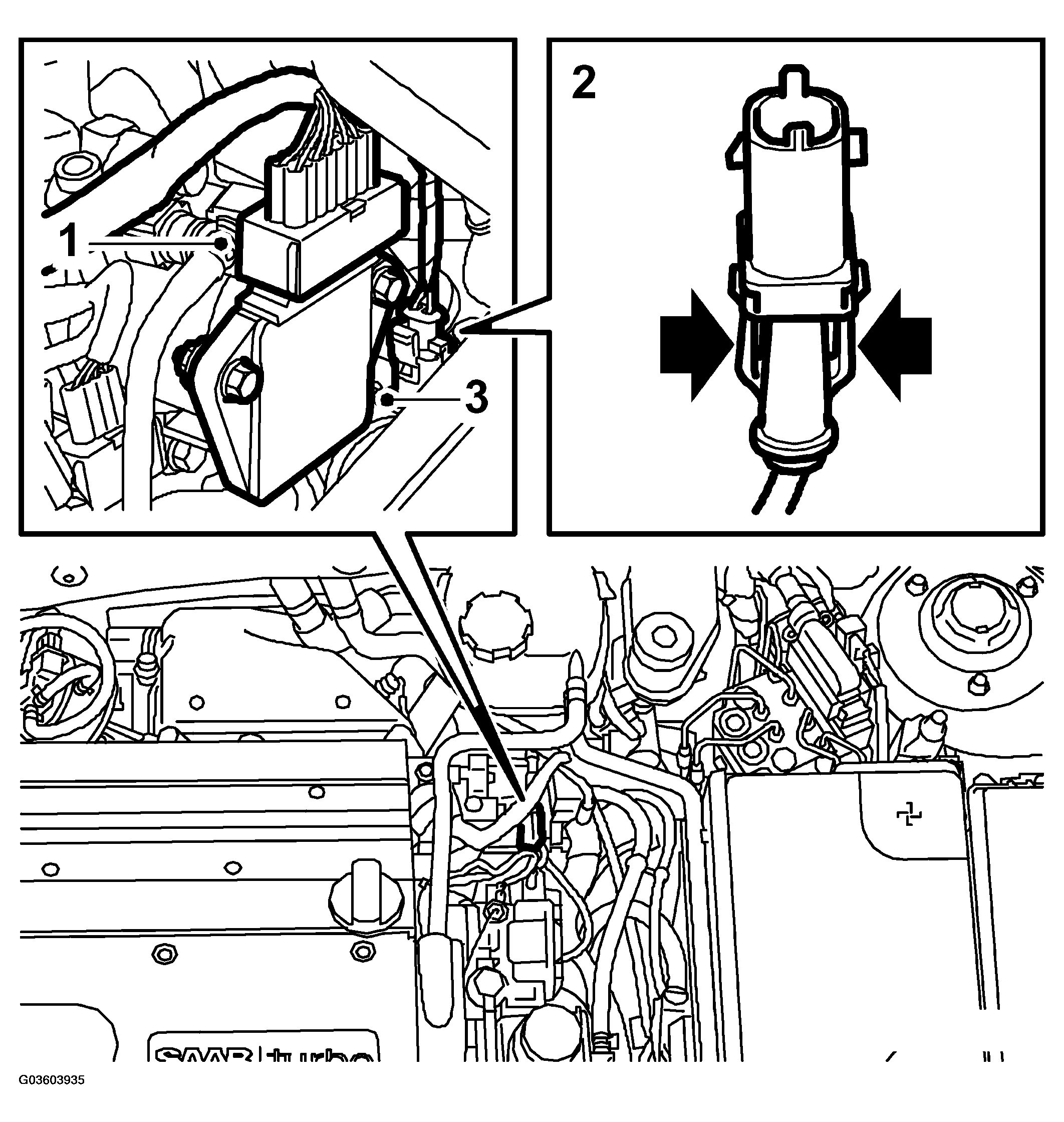

    Fig 1: Illustration For Steps 1-3
    G03603935Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector to the catalytic converter temperature sensor.
  3. Remove CDM.
