To remove

  1. Remove the gearbox as described in TRANSMISSION\MANUAL GEARBOX\ADJUSTMENT_REPLACEMENT

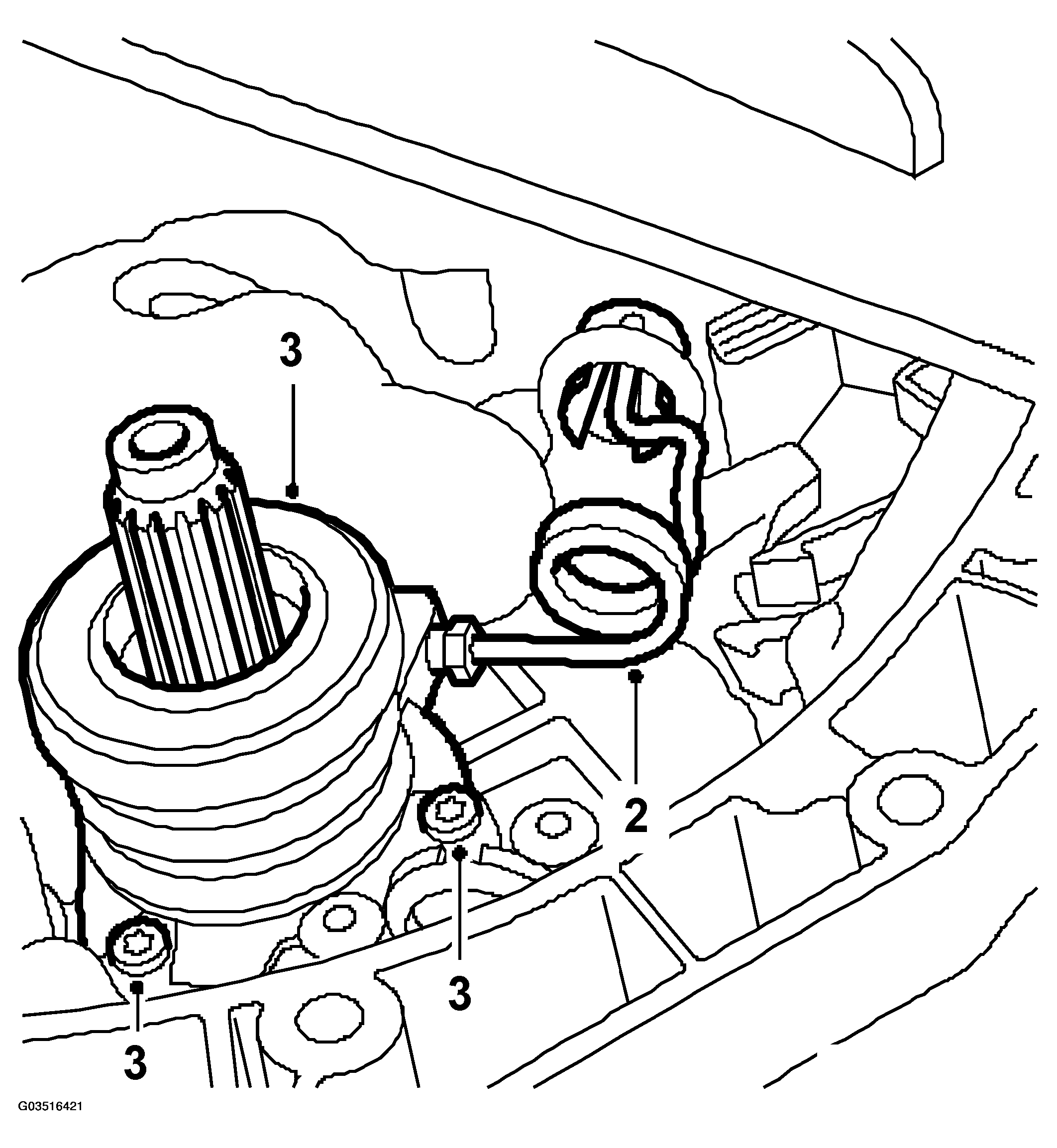

    Fig 1: Illustration For Step 2-3
    G03516421Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the delivery pipe.
  3. Remove the slave cylinder's three retaining screws and withdraw the slave cylinder.
