Tightening Torques
TIGHTENING TORQUES SPECIFICATIONS

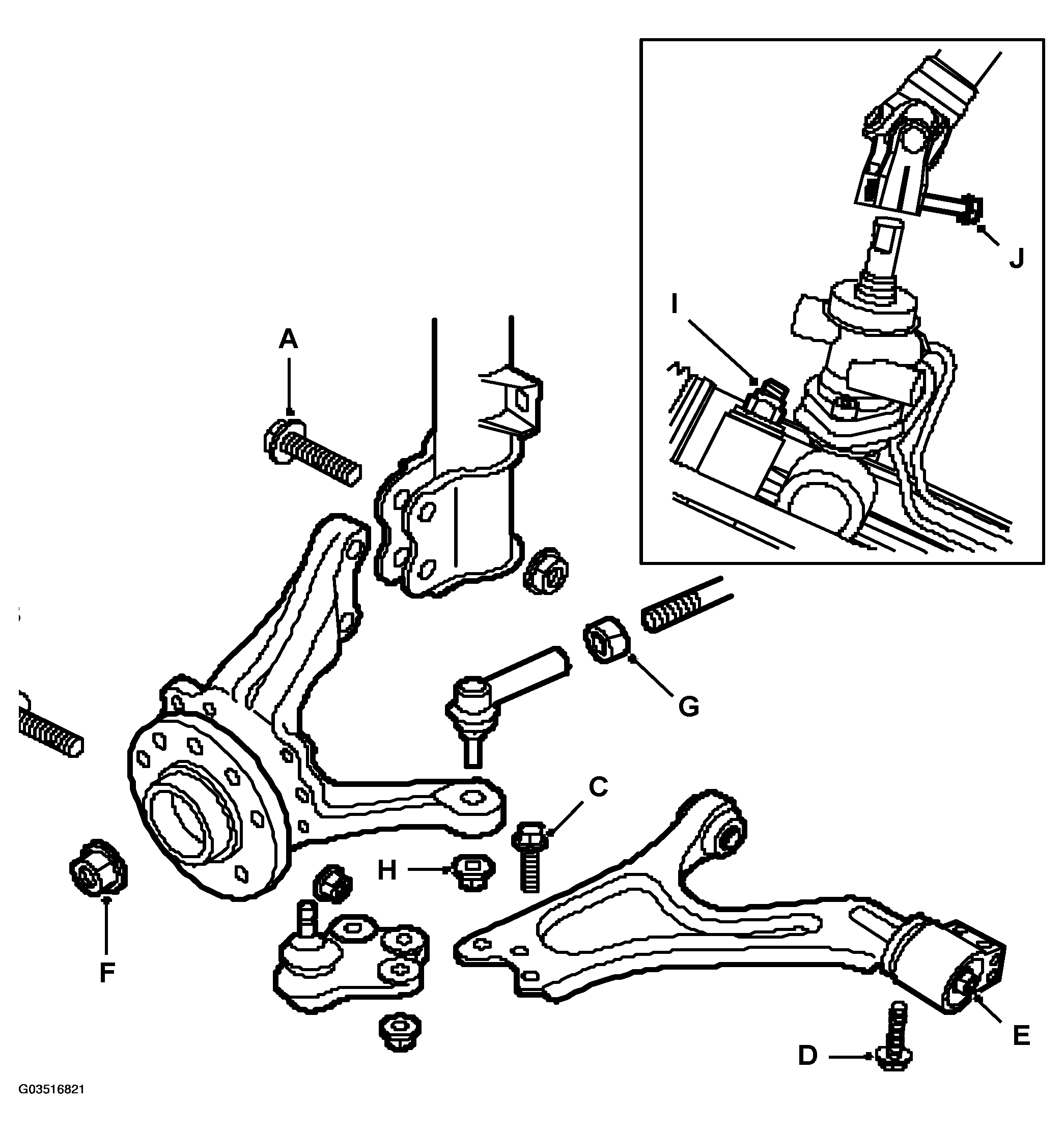

| Designation | Pos. | Dimensions | |
|---|---|---|---|
| Nm | lbf ft | ||
| Steering swivel member to MacPherson strut | A | 110 +45° |
81 +45° |
| Steering swivel member to ball joint, steering swivel member | B | 95 | 70 |
| Ball joint, steering swivel member to suspension arm | C | 20 +90° |
15 +90° |
| Bolts securing suspension arm to subframe (tighten when car standing on wheels) | D | 95 | 70 |
| Rear suspension arm bush to suspension arm | E | 75 | 55 |
| Hub centre-nut (use nut with top groove) | F | 170 +45° |
126 +45° |
| Locknut, track rod | G | 70 | 55 |
| Outer track-rod end to steering swivel member | H | 60 | 45 |
| Steering gear retaining bolt | I | 95 | 70 |
| Steering column shaft to steering gear | J | 30 | 20 |
