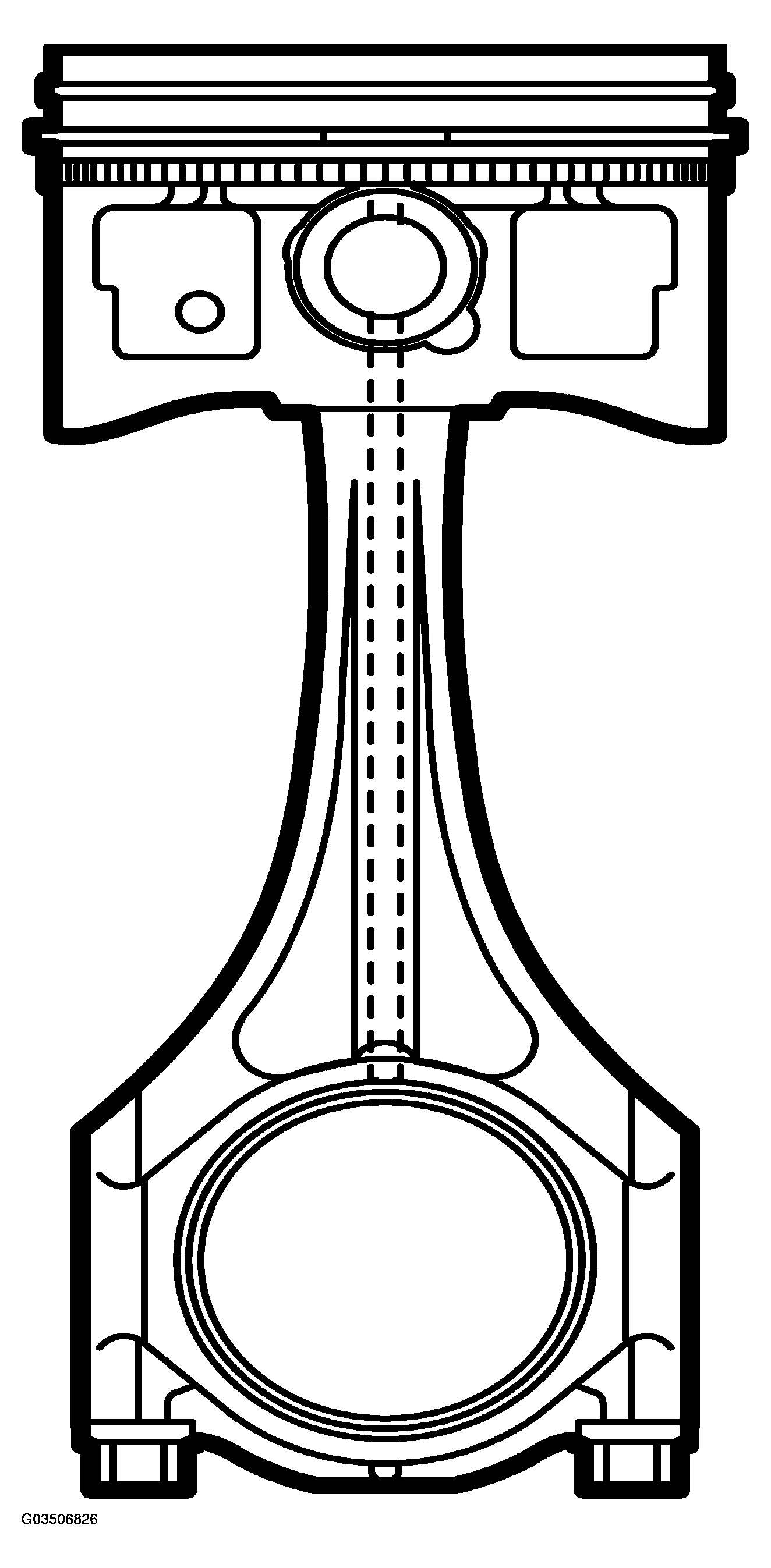

Connecting rods
WARNING: This page is about a different variant/trim than selected.
Courtesy of SAAB-SCANIA OF AMERICA, INC. CONNECTING ROD TECHNICAL SPECIFICATIONS
| Big-end diameter mm |
52.000-52.012 |
| Length mm |
148 |
| The difference in weight between connecting rods in the same engine must not exceed: g |
6 |
| Through oilway in connecting rod mm |
4 |
