Grounding Point G30: Notes

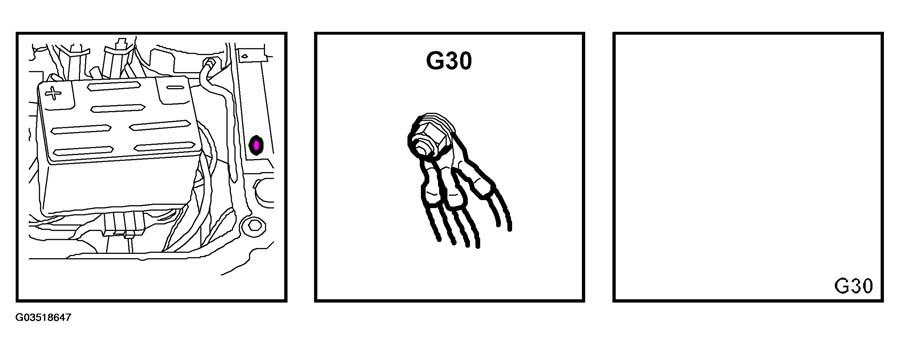

Fig 1: Identifying Grounding Point G30

Courtesy of SAAB-SCANIA OF AMERICA, INC.

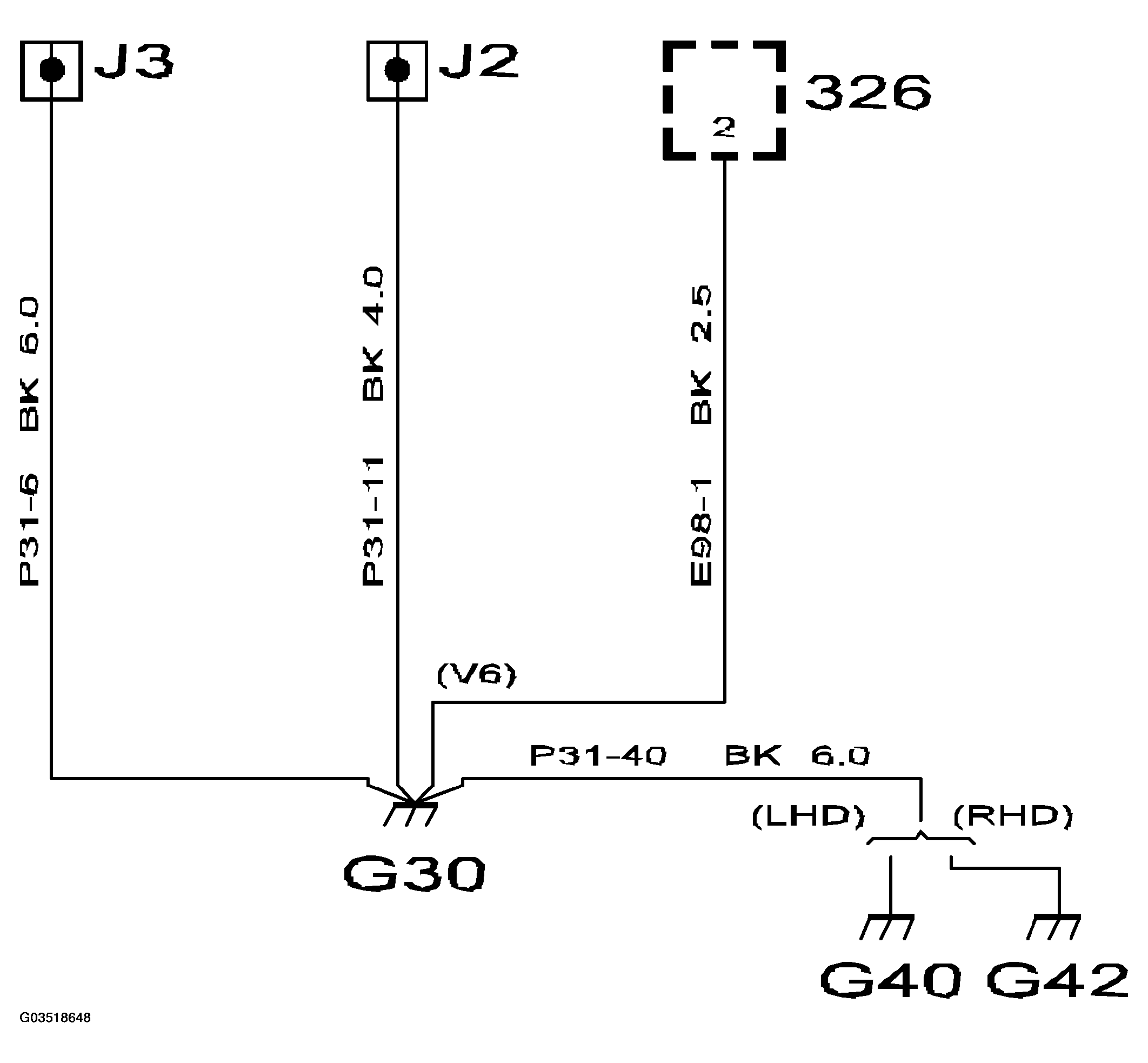

Fig 2: Circuit Diagram - Grounding Point G30

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In the engine bay on the side panel in front of the left-hand wheel housing
