Abs Fuse Panel Identification

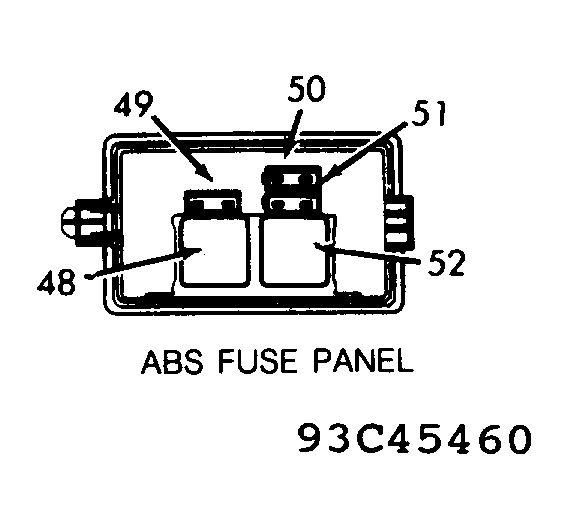

Fig 1: ABS Fuse Panel Identification

G93C45460

Courtesy of SAAB-SCANIA OF AMERICA INC.

48 - Relay ABS Main Relay
49 - 10 Amp ABS
50 - 30 Amp ABS
51 - 30 Amp ABS Pump
52 - Relay ABS Pump
