Clutch line versions

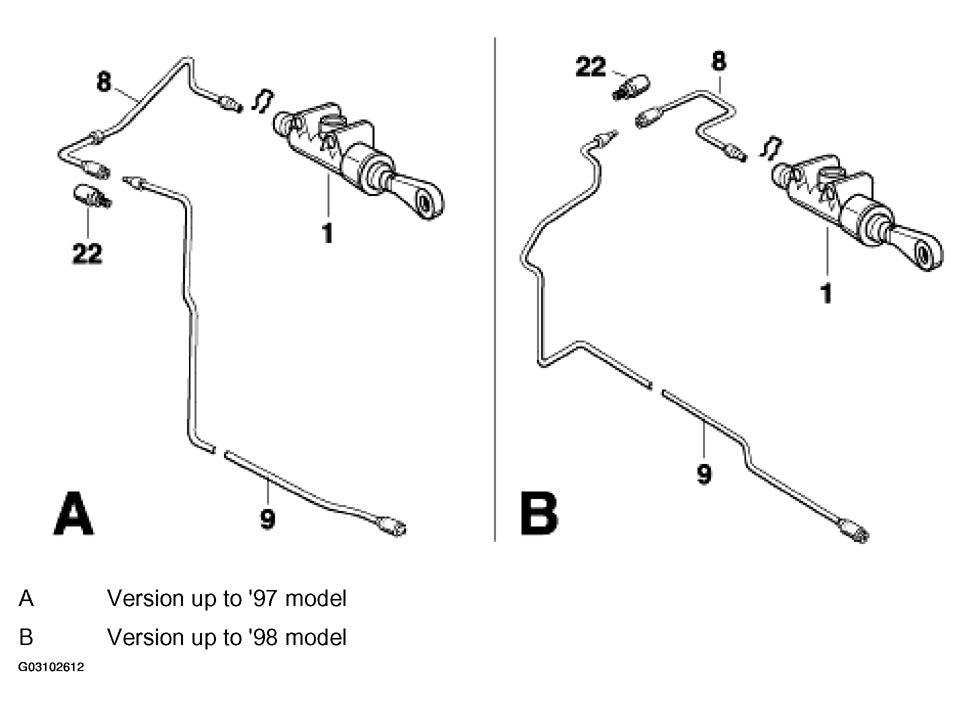

The clutch pipeline on the clutch master cylinder -8- has changed as of '98 model (length, shape and routing). Version A = '97 model / version B = as of '98 model. See Fig 1 .
For this reason, the connecting center line -9- has also changed. See Fig 1 .
This applies to left and right-hand drive vehicles. In the case of right-hand drive vehicles, the line -8- is longer due to the different position of the master cylinder. See Fig 1 . The line -9- is an identical part in the case of left and right-hand drive vehicles.
The spare part number of the lines -8 and 9- as of '98 model = version -B- are provided with the index 10 (10 at the end of the spare part number). See Fig 1 .
Version -A- is no longer available. In the event of replacement, the new/current lines -B- are to be installed with the part number 996.423.107.10 and 996.423.109.10 for left-hand drive vehicles and 996.423.108.10 and 996.423.109.10 for right-hand drive vehicles. See Fig 1 .
A 15 mm hole must be drilled in the left wheel housing due to the position of the lines!
