Ground Views

Fig 1: G101, G102, G104, and G109
GM2148445Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G101
2 G102
3 G109
4 G104
Fig 2: G105 and G106 (LE5 Or LE9)
GM1555567Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor Connector
2 J101
3 G105
4 Fuse Block - Underhood X1
5 X108
6 X100 (MN5)
7 J118
8 G106
9 X130

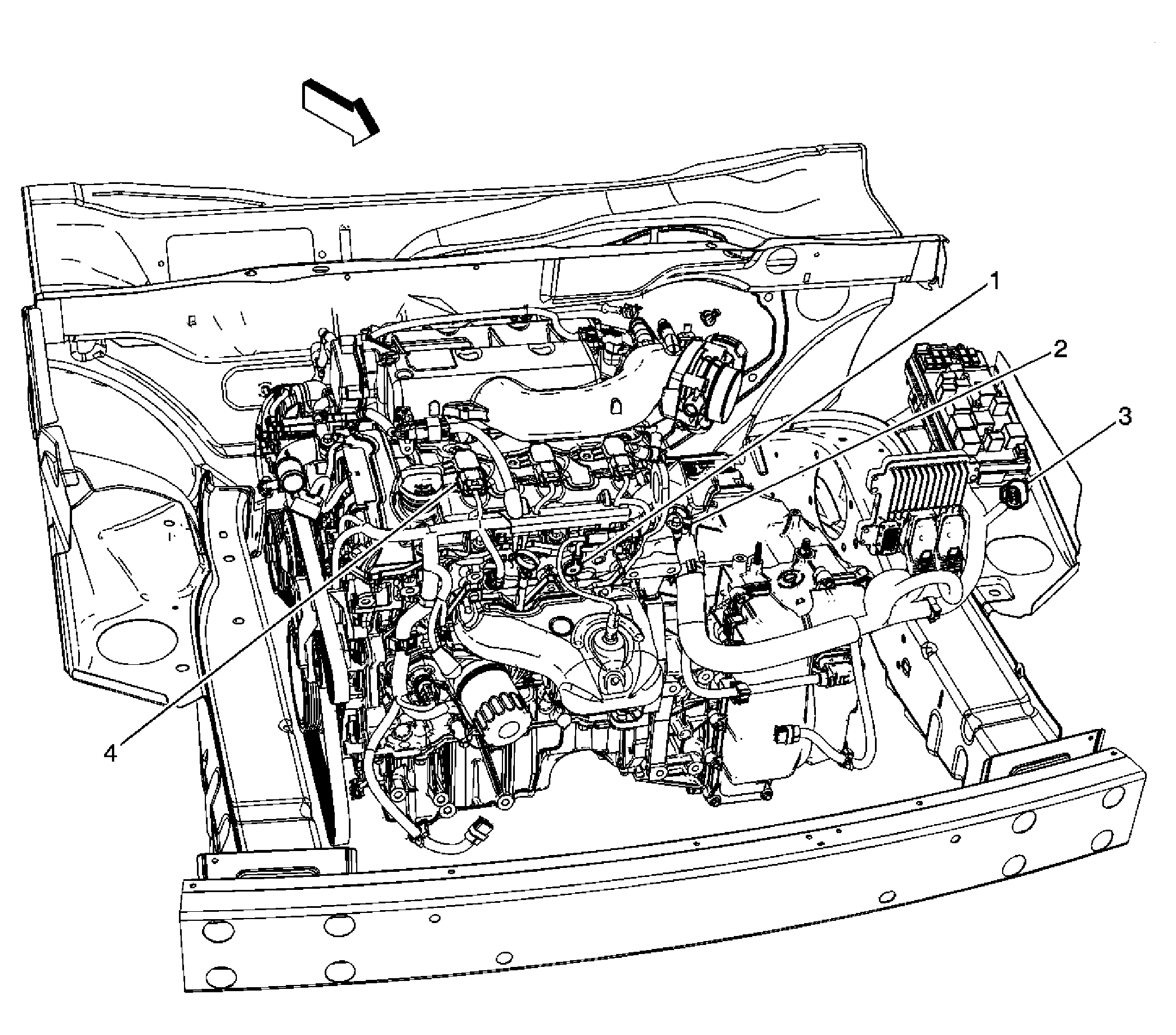

Fig 3: G113 (LY7)
GM1858147Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G113
2 J199
3 X108
4 X130
Fig 4: G106 (LE5 with MH8 and NU6) and G110 (LE5 or LE9)
GM2148475Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G110

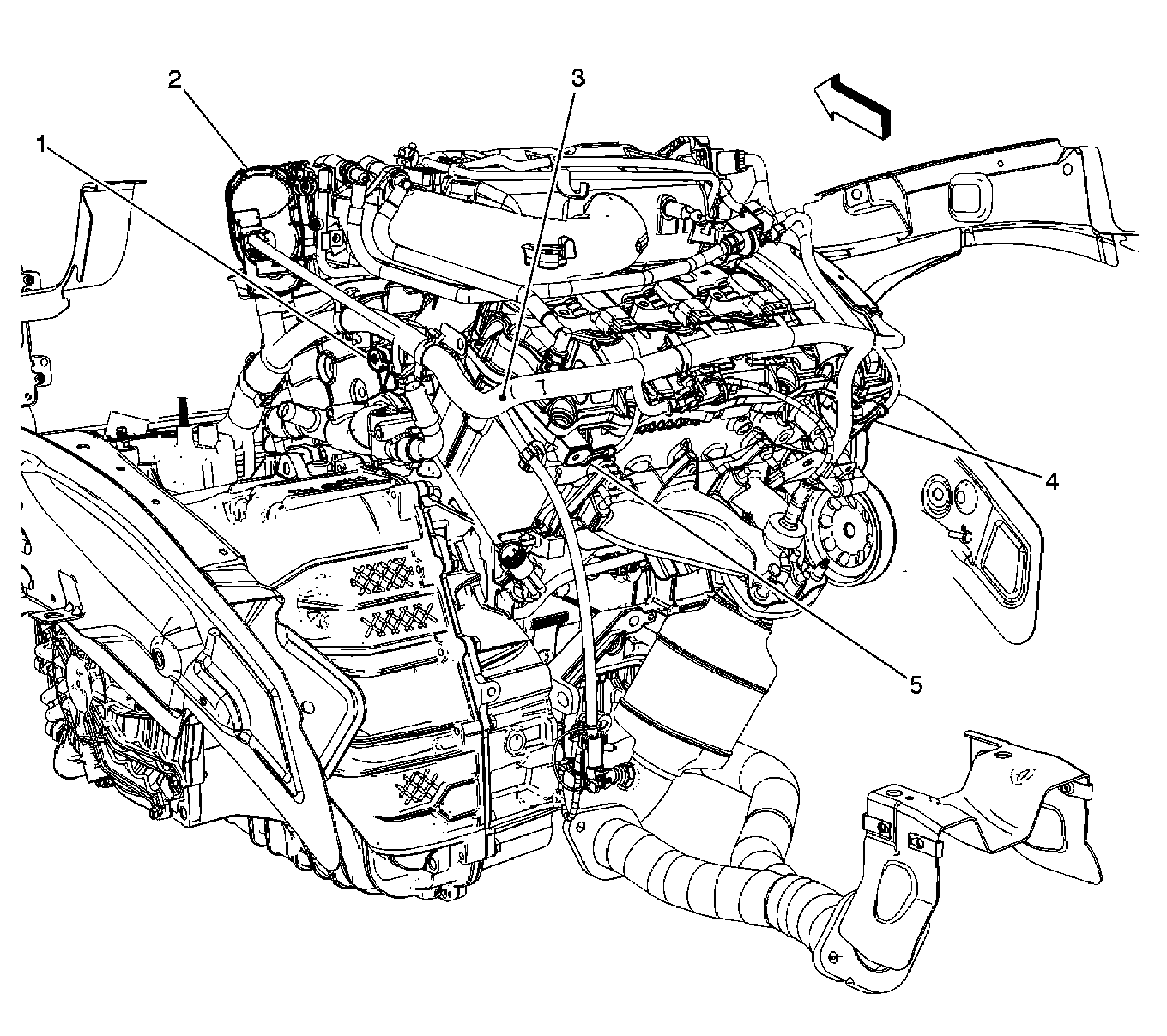

Fig 5: G105, G106, and G111 (LY7)
GM1858150Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G105
2 Throttle Actuator Control (TAC) Module
3 J198
4 G106
5 G111

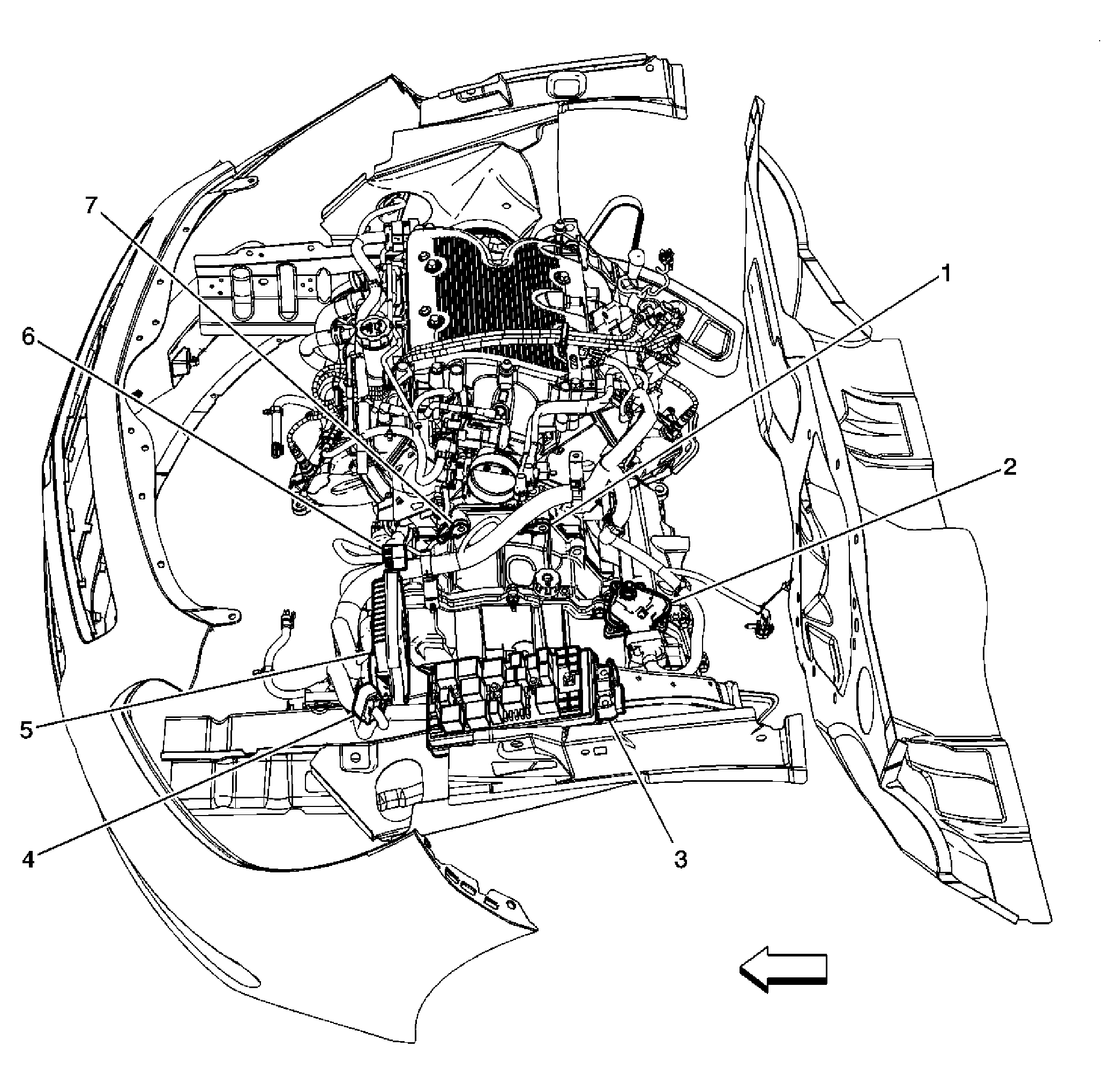

Fig 6: G105 and G106 (LZ4 or LZE)
GM1858134Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G106
2 Park/Neutral Position (PNP) Switch
3 Fuse Block - Underhood
4 X108
5 Engine Control Module (ECM)
6 X103
7 G105
Fig 7: G201 and G203
GM2148486Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G201
2 G203

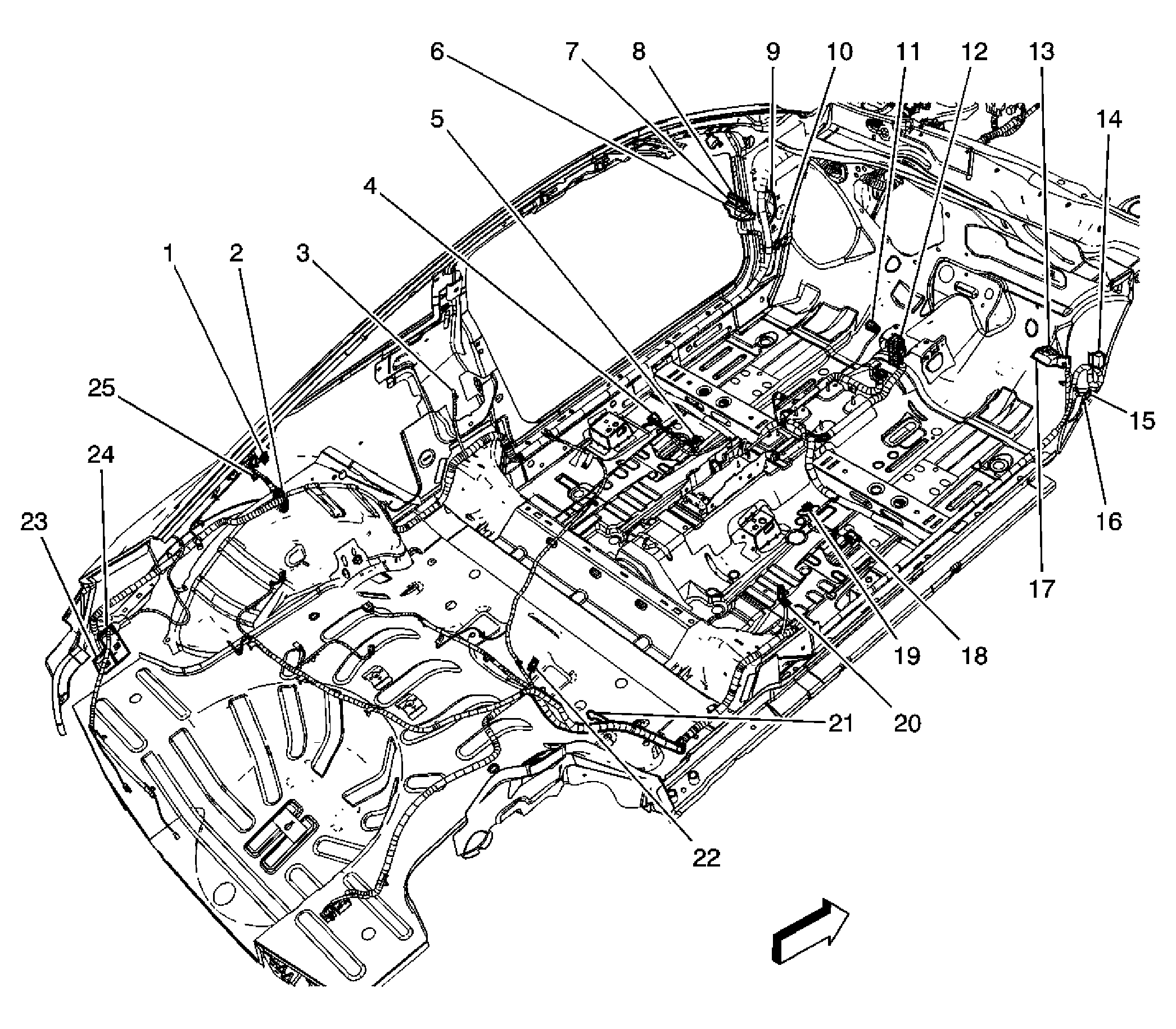

Fig 8: G301, G302, G303, G304, and G305 (Coupe)
GM1577057Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X419 (AY0)
2 X351 (UE1)
3 Seat Belt Retractor Pretensioner - Driver
4 X300
5 X308 (AJ7 or AY0)
6 X208
7 X206
8 X203
9 X500
10 G303
11 X214
12 Body Control Module (BCM) X3
13 X207
14 X600
15 G305
16 G304
17 X216
18 X310
19 X309 (AJ7 or AY0)
20 Seat Belt Retractor Pretensioner - Driver
21 G301
22 X420 (AY0)
23 Fuse Block - Rear X4
24 Fuse Block - Rear X1
25 G302

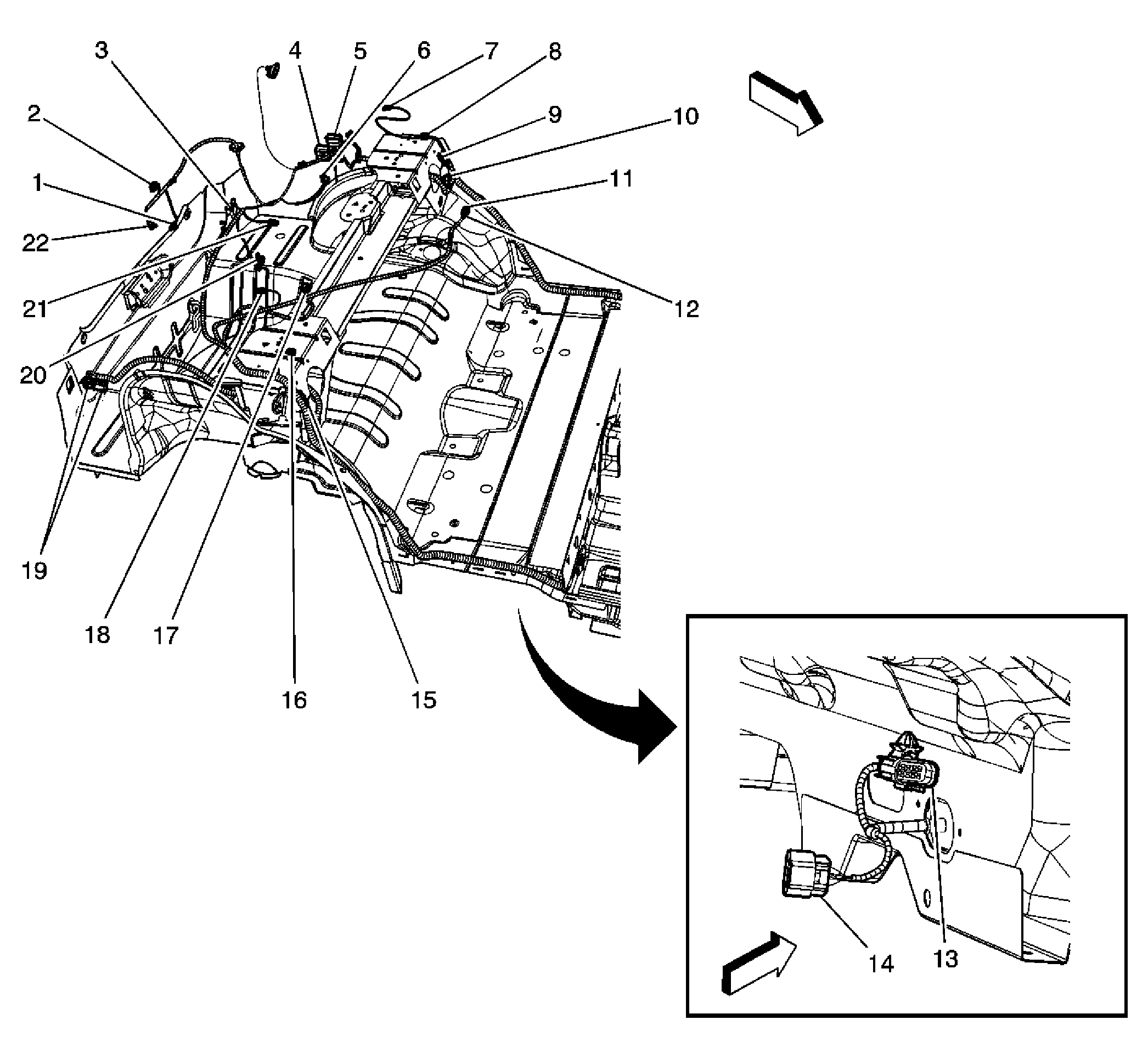

Fig 9: G301 and G302
GM1470407Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Compartment Lid Release Switch Connector
2 Center High Mounted Stop Lamp (CHMSL) Connector
3 Rear Compartment Courtesy Lamp Connector
4 Fuse Block - Rear X4
5 Fuse Block - Rear X1
6 Speaker - Left Rear Connector
7 X419 Body Harness to Roof Rail Inflatable Restraint Module - Left Hand (AY0)
8 Rear Window Defogger Grid X1 Connector
9 G302
10 X351 Body Harness to Headliner Harness (UE1)
11 Antenna Amplifier Module X1 Connector
12 Coax AM/FM Connector
13 X413 Body Harness to Fuel Tank Harness
14 X403 Body Harness to Wheel Speed Sensor (WSS) Jumper Harness - Right Rear /Left Rear
15 G301
16 X420 Body Harness to Roof Rail Inflatable Restraint Module - Right Hand (AY0)
17 Digital Radio Receiver Connector (U2K)
18 Rear Window Defogger Grid X2 Connector
19 Audio Amplifier Connectors (U85)
20 Speaker - Right Rear Connector
21 Remote Control Door Lock Receiver (RCDLR) Connector (AU0)
22 Rear Compartment Lid Pulldown Actuator Connector

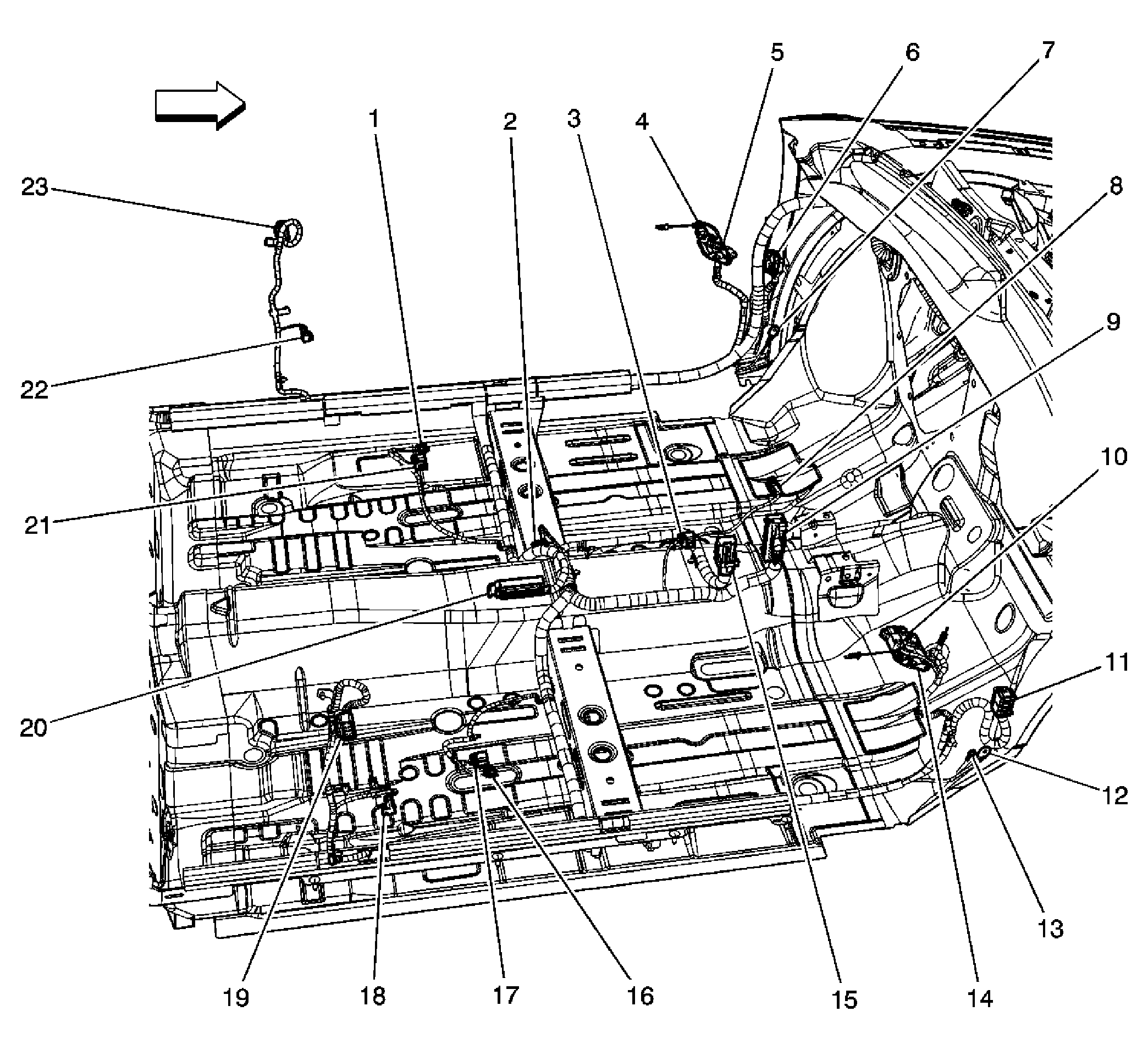

Fig 10: G303, G304, and G305
GM1470406Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X308 (AJ7 or AY0)
2 Park Brake Switch Connector
3 X303
4 X208
5 X206
6 X500
7 G303
8 X214
9 Body Control Module (BCM) X3
10 X216
11 X600
12 G305
13 G304
14 X207
15 Body Control Module (BCM) X1
16 X309 (AJ7 or AY0)
17 X310
18 Inflatable Restraint Seat Belt Pretensioner - Right Front Connector
19 X800 (Sedan)
20 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
21 X300
22 Inflatable Restraint Seat Belt Pretensioner - Left Front Connector
23 X700 (Sedan)

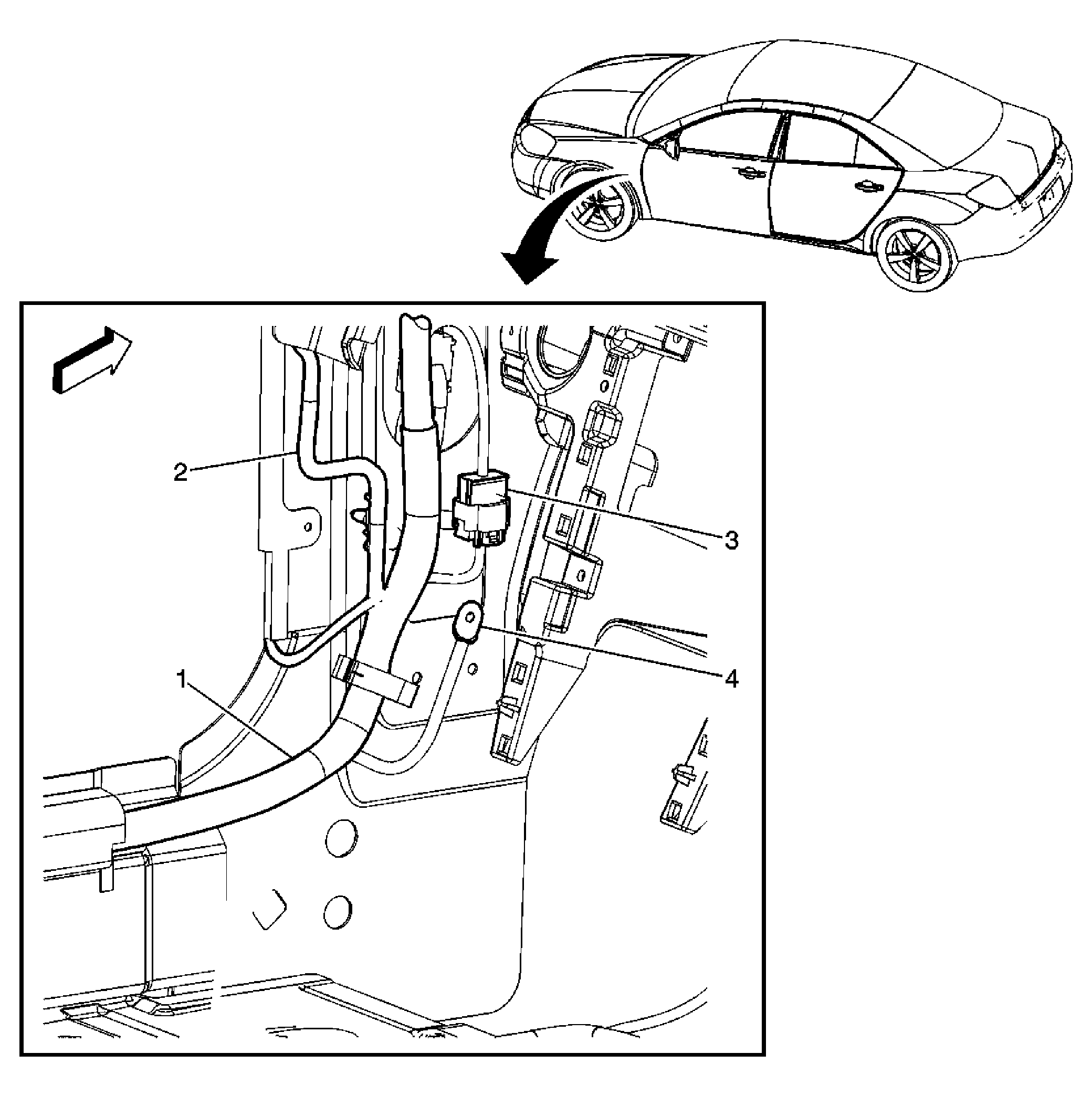

Fig 11: G303
GM1724515Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness
2 Headliner Harness (Convertible)
3 X200 (Convertible)
4 G303
Fig 12: G401 and G403
GM1470409Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X402
2 X416
3 G401
4 G403
5 X401
6 Fuse Block - Rear X1
