Rear Seat Shoulder Belt Guide Replacement

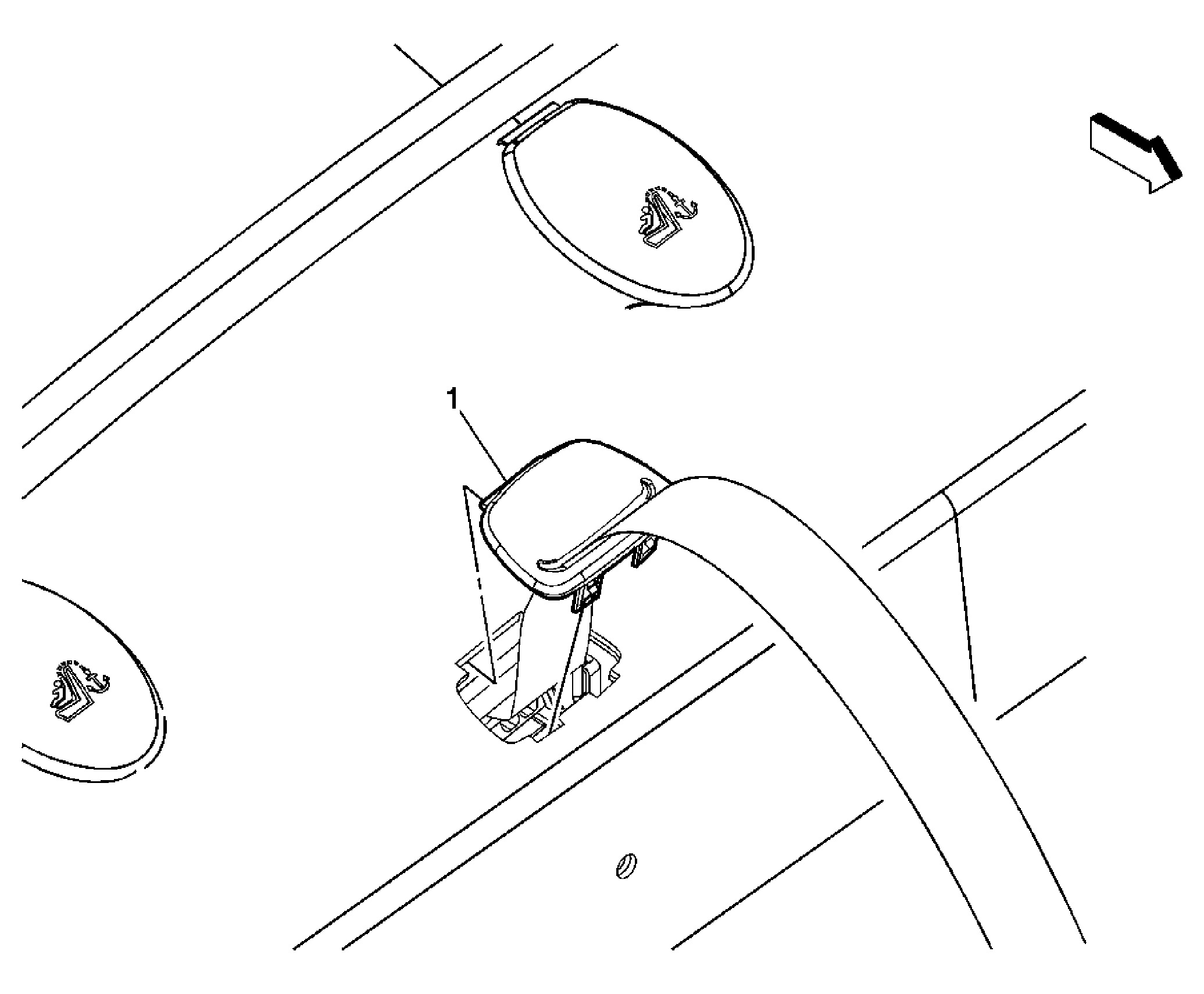

Fig 1: Rear Seat Shoulder Belt Guide
GM1551486Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Guide Assembly, Rear Shoulder Belt
Tip:  Remove the rear seat belt anchor bolt and feed the belt through the guide. Refer to Rear Seat Belt Replacement .
