Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

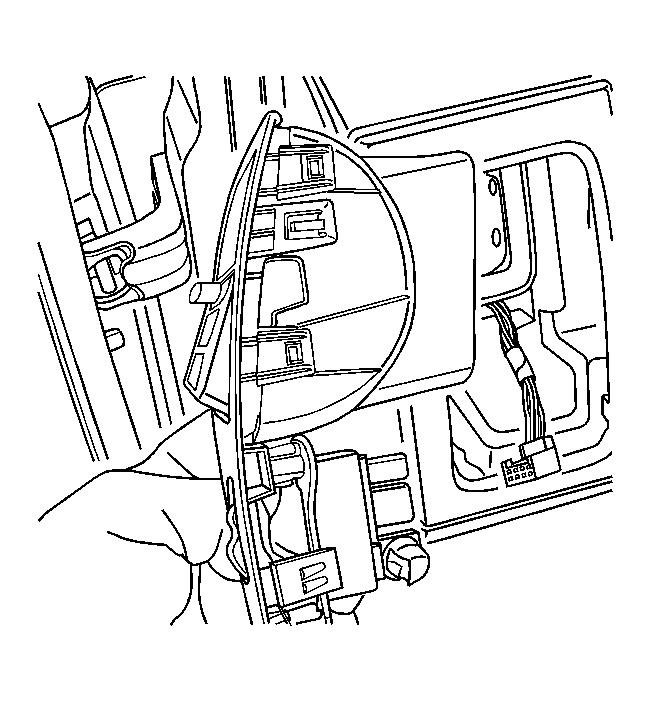

Fig 1: View Of Power Mirror Switch & Dimmer Switch Panel

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the dimmer switch to the left side air deflector panel.
Tighten: Tighten the screw to 2.5 N.m (22 lb in).
Install the electrical connector to the dimmer switch.
Install the left side air deflector panel to the I/P. Refer to Air Outlet Replacement - Instrument Panel in Heating, Ventilation and Air Conditioning
Test the dimmer switch for proper operation.
