Immobilizer Schematics

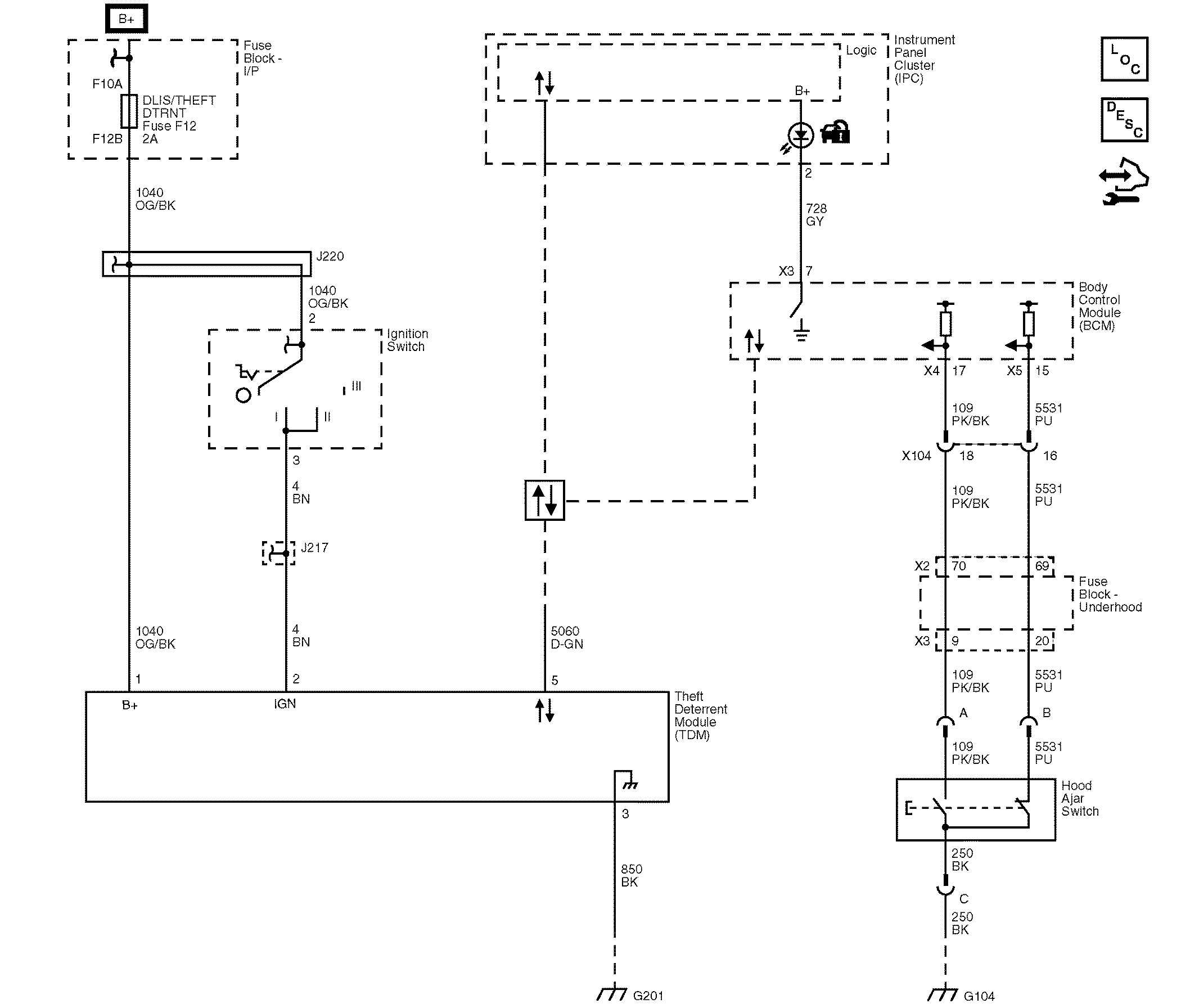

Fig 1: Identifying Theft Deterrent System Schematic

GM2034235

Courtesy of GENERAL MOTORS CORP.
