Installation Procedure

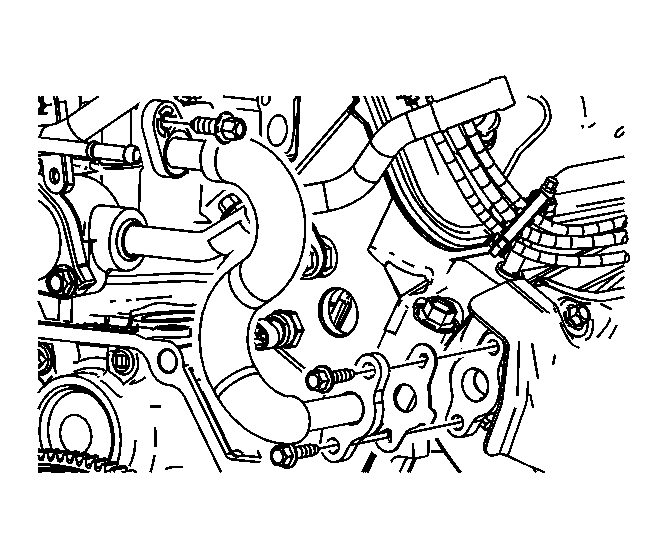

    Fig 1: Identifying EGR Pipe
    GM1239050Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the EGR pipe to the exhaust manifold.

    Tighten:  Tighten the EGR pipe bolts to 25 N.m (18 lb ft).

  2. Install the EGR pipe to the EGR valve.
  3. Install the EGR pipe bolt.

    Tighten:  Tighten the bolt to 30 N.m (22 lb ft).
