Removal Procedure

WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Read the registered transmitter identification (ID) numbers. Write down the numbers in order to aid the re-registration of the ID numbers in the new module. Refer to Tire Pressure Sensor Learn .
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  3. Remove the upper instrument panel assembly. Refer to Instrument Panel Upper Trim Pad Replacement .

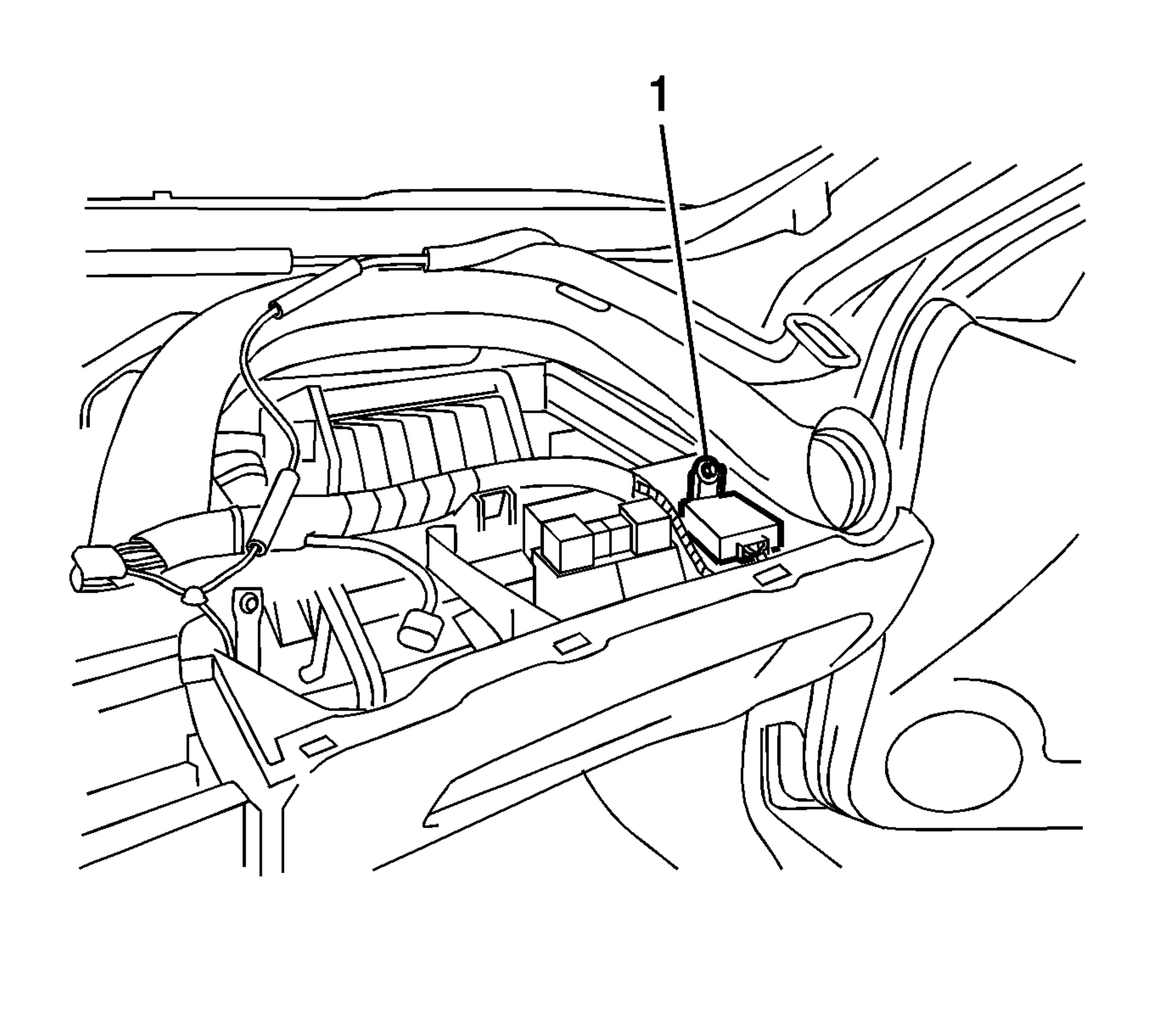

    4. Fig 1: Remove The Screw From The Tire Pressure Indicator Module
    GM1954784Courtesy of GENERAL MOTORS CORP.
  4. Remove the screw from the tire pressure indicator module (1).

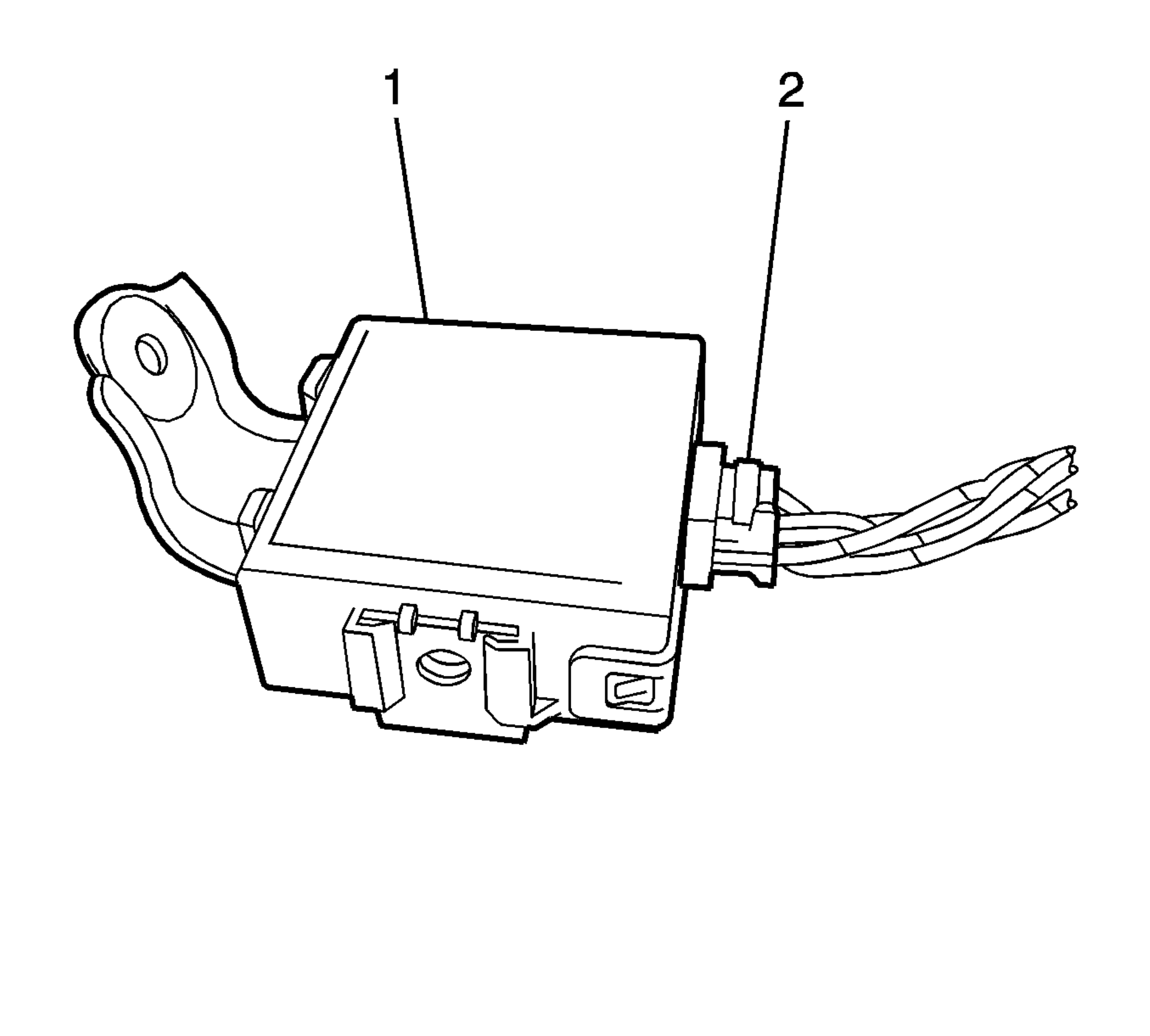

    5. Fig 2: Disconnect The Connector
    GM1954793Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the connector (2).
  6. Remove the tire pressure indicator module (1).
