Installation Procedure
WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

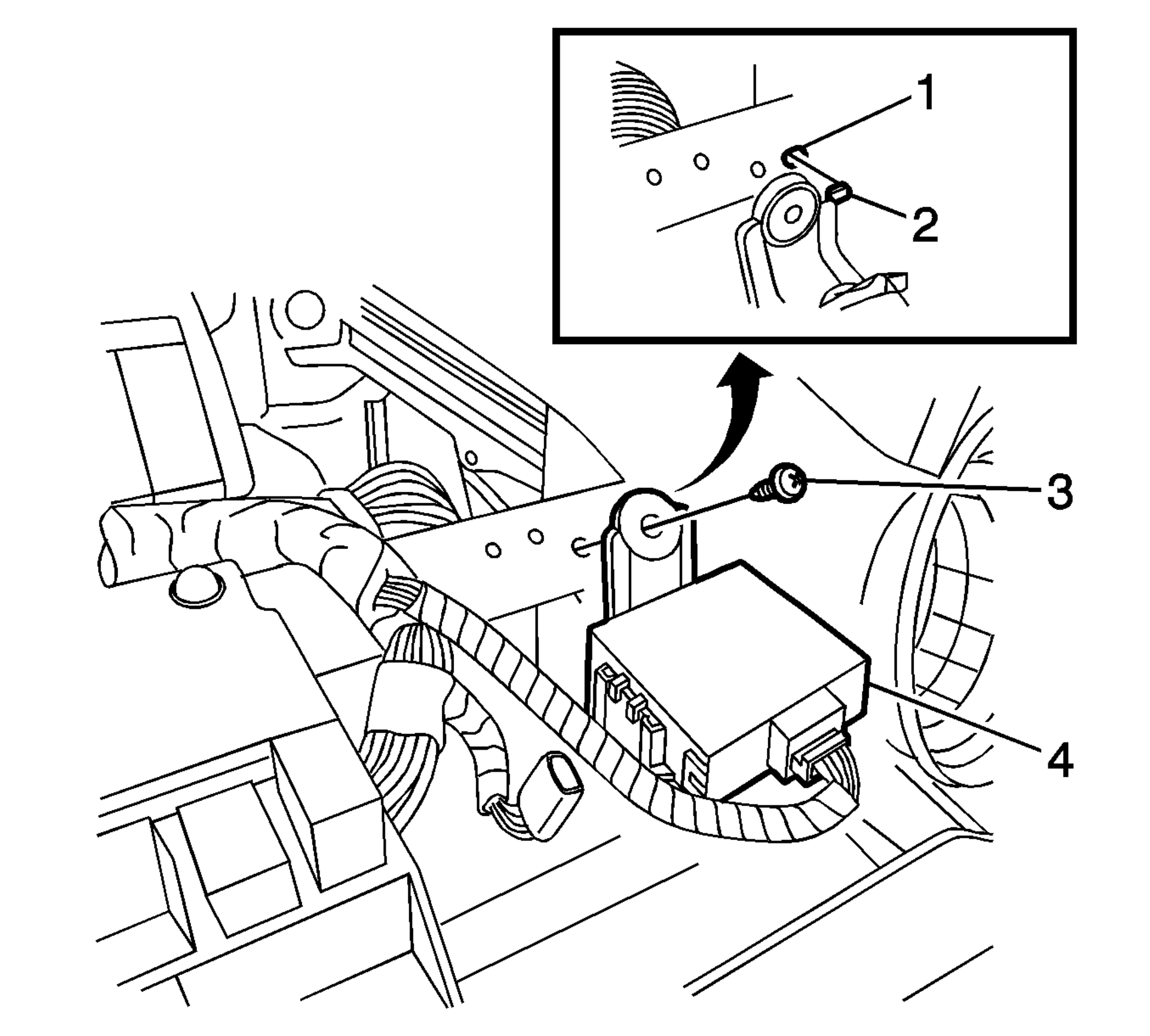

- Connect the connector to the tire pressure indicator module (4).
- Engage the tab (2) into the hole (1) and install the module.
- Install the screw (3).
- Install the upper instrument panel assembly. Refer to Instrument Panel Upper Trim Pad Replacement .
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
- Measure the tire pressure of each of the tires. Adjust the tire pressure to the specification on the tire placard, if necessary.
- Register the transmitter ID numbers for all of the tires. Refer to Tire Pressure Sensor Learn .
- Initialize the system. Refer to Tire Pressure Monitor System Configuration .
