Installation Procedure

IMPORTANT: Do not tip the battery more than 40 degrees during installation.

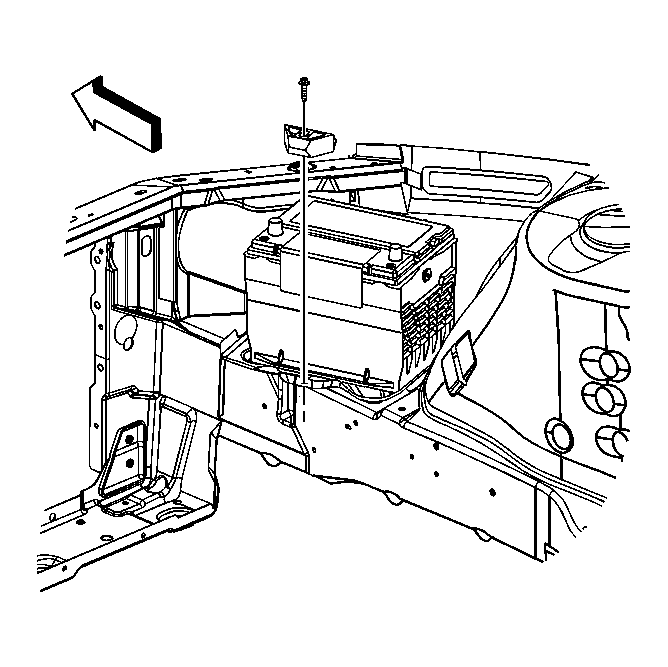

    Fig 1: View Of Battery Hold Down & Bolt
    GM1552775Courtesy of GENERAL MOTORS CORP.
  1. Install the battery.
    2. NOTE: Refer to Fastener Notice .
  2. Install the battery hold down and bolt.

    Tighten:  Tighten the bolt to 18 N.m (13 lb ft).

    3. Fig 2: Identifying Battery Terminals & Ground Wire
    GM911131Courtesy of GENERAL MOTORS CORP.
  3. Install the positive battery terminal (1) to the battery.
  4. Tighten the positive battery terminal nut.

    Tighten:  Tighten the nut to 15 N.m (11 lb ft).

  5. Install the right front diagonal brace. Refer to Front Fender Upper Diagonal Brace Replacement .
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (L26)  or Battery Negative Cable Disconnection and Connection (LS4) .
